Multifunctional spatiotemporal evolution and its inter-regional coupling of cultivated land in a typical transect in Northern China
Received date: 2024-01-29
Revised date: 2024-06-20
Online published: 2025-01-23

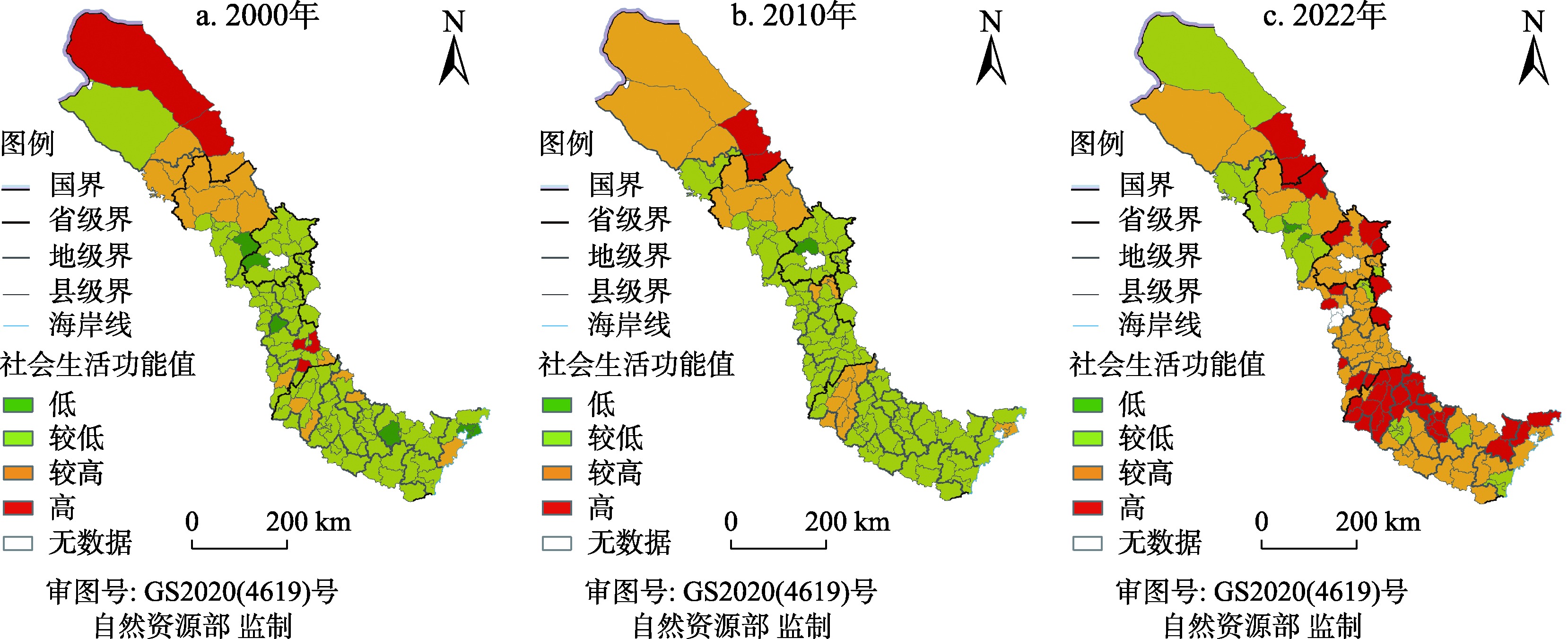

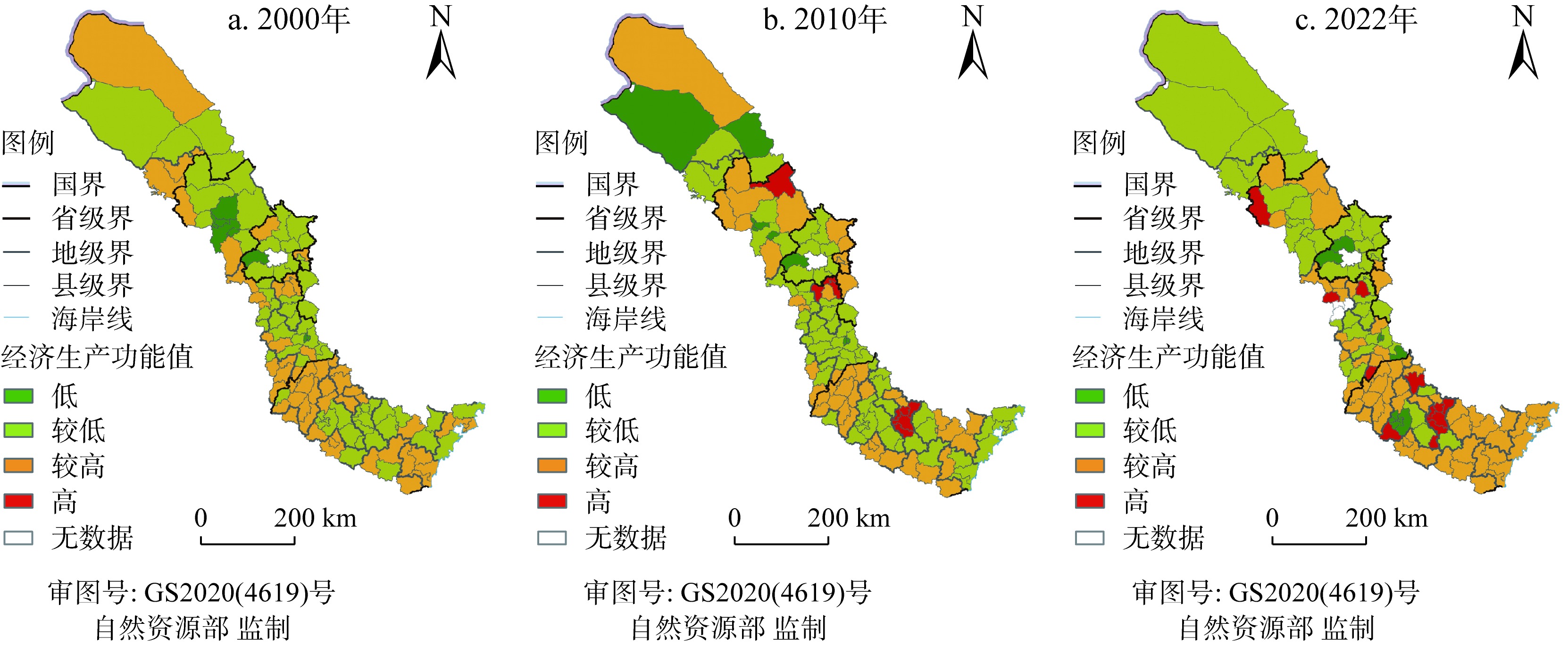

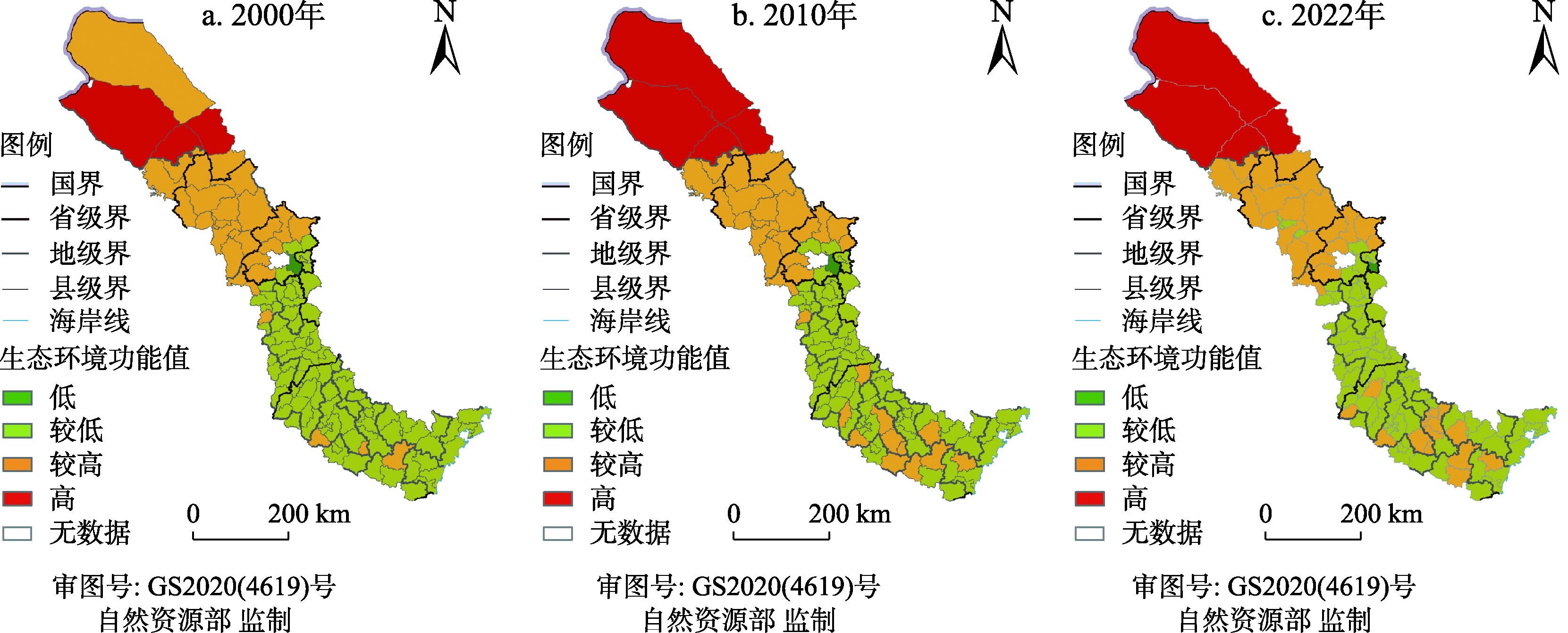

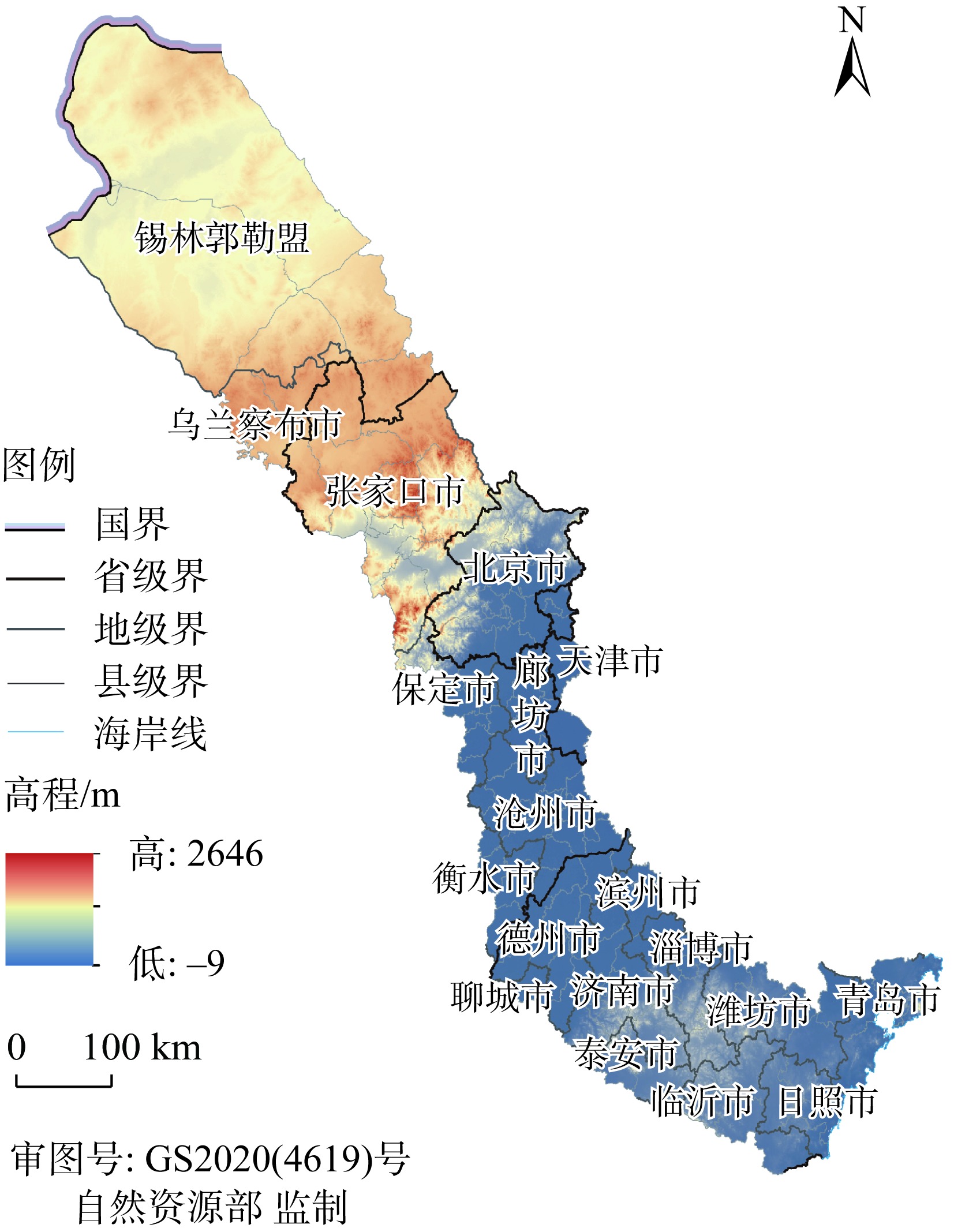

This study selects a total of 110 counties in Northern China as the research transect, based on the land use data and socio-economic statistics from 2000 to 2022. It adopts the index evaluation method, the coupling degree of coordination and the social network analysis model to reveal the characteristics of the multifunctional spatiotemporal evolution of cultivated land use in the study area and the inter-regional coupling relationship. The results show that: (1) The spatial and temporal patterns of the functions of cultivated land use in the typical transect have changed significantly, with the economic production function showing an upward trend, and the growth of the function in most parts of Southern Hebei and Shandong being more obvious; the social life function has risen significantly as a whole, with the high value areas mainly clustered in the counties in Inner Mongolia in the northern part of the transect; the ecological function has been more stable, with the low and lower values mainly observed in the central part of the transect. (2) During the study period, the coordination degree of multifunctional coupling of cultivated land declined and showed obvious regional differences, with the northern and southern parts of the transect higher than the central part, i.e., showing a pattern of high at the two ends and low in the middle, and the inter-regional differences gradually expanding. (3) In the multifunctional and coupled network of cultivated land, social life, economic production and ecological environment functions have an obvious network structure, but each function is dominated by the overall low intensity linkage; lower centrality of the districts and counties are dominant. Through the spatial clustering analysis, it is found that the internal linkage of the receiving and spillover relationship of each function is relatively strong, and the external linkage needs to be strengthened. (4) The dynamic evolution of multifunctional and coupled coordination of cultivated land needs inter-regional coupled associations such as location and relationship in addition to regional differences. The results of the study can provide theoretical references for the formulation of policies relevant to the regional synergistic development of cultivated land.
YU Sen , MA En-pu , JI Yi-wen , YE Wei-yi , CAI Jian-ming . Multifunctional spatiotemporal evolution and its inter-regional coupling of cultivated land in a typical transect in Northern China[J]. JOURNAL OF NATURAL RESOURCES, 2025 , 40(2) : 514 -533 . DOI: 10.31497/zrzyxb.20250214
表1 耕地多功能指标体系Table 1 Multifunctional index system for cultivated land |
决策层 | 目标层 | 指标层 | 单位 | 计算方式 | 属性 | 权重 |
---|---|---|---|---|---|---|
耕地多 功能 | 经济生产功能 0.308 | 单位面积粮食作物产量 | kg/hm² | 粮食作物产量/耕地面积 | + | 0.175 |
单位面积经济作物产量 | kg/hm² | 经济作物产量/耕地面积 | + | 0.190 | ||
种植业对经济贡献率 | % | 种植业总产值/GDP | + | 0.262 | ||
耕地地均产值 | 元/hm² | 种植业总产值/耕地面积 | + | 0.373 | ||
社会生活功能 0.411 | 农村居民经营性收入 | 元 | 直接获取 | + | 0.232 | |
粮食自给水平 | % | 粮食产量/(常住人口×400 kg) | + | 0.204 | ||
农业机械化水平 | kW/hm² | 农机总动力/耕地面积 | + | 0.218 | ||
人均耕地面积 | hm²/人 | 耕地面积/乡村常住人口 | + | 0.216 | ||
就业容纳 | % | 乡村第一产业从业人员/乡村从业人员 | + | 0.129 | ||
生态环境功能 0.281 | 化学物质施用安全性 | kg/hm² | 化肥使用量折纯/作物播种面积—单位面积化肥使用量安全标准上限 | - | 0.250 | |
单位耕地面积承载人口数量 | 人/hm² | 常住人口/耕地面积 | - | 0.130 | ||
耕地占非建设用地比例 | % | 耕地占非建设用地(耕地、林地、草地、水域及未利用地)比例 | - | 0.380 | ||
耕地景观破碎度 | — | 斑块密度(PD) | - | 0.240 |
注:指标体系中粮食自给水平参照联合国粮食及农业组织的人均400 kg标准;化学物质施用安全性的标准为国际化肥安全标准上限225 kg/hm²;非建设用地主要包括耕地、林地、草地、水域及未利用地[46]; , 为斑块密度(个/m2); 为斑块数量(个); 表示景观或斑块总面积(m2)。 |

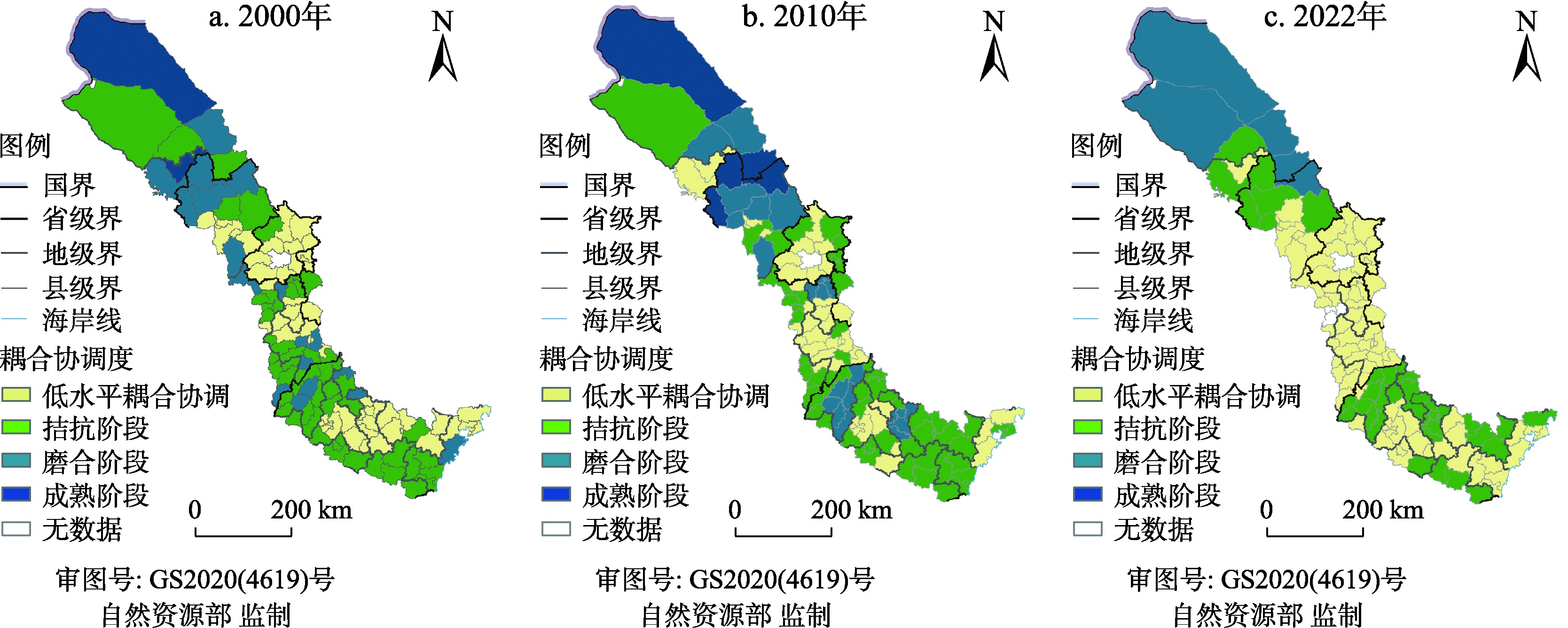

表2 耕地多功能耦合协调度等级划分Table 2 The classification of coordination degree of cultivated land multifunction |
耦合协调 等级 | 低水平耦合 协调阶段 | 拮抗阶段 | 磨合阶段 | 成熟阶段 |
---|---|---|---|---|
耦合协调度 | 0.1~0.4 | 0.4~0.6 | 0.6~0.8 | 0.8~1.0 |

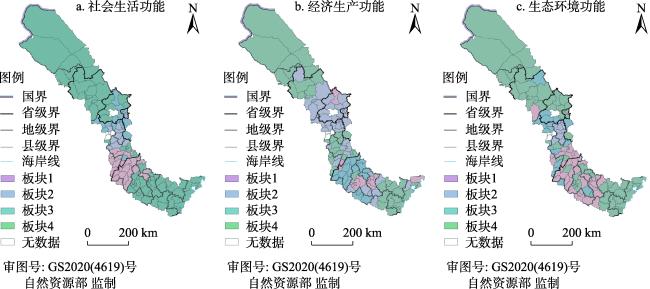

图10 2022年北方典型样带地区耕地多功能耦合网络凝聚子群Fig. 10 Condensation sub-group of cultivated land multifunctional coupling network in Northern China transect in 2022 |

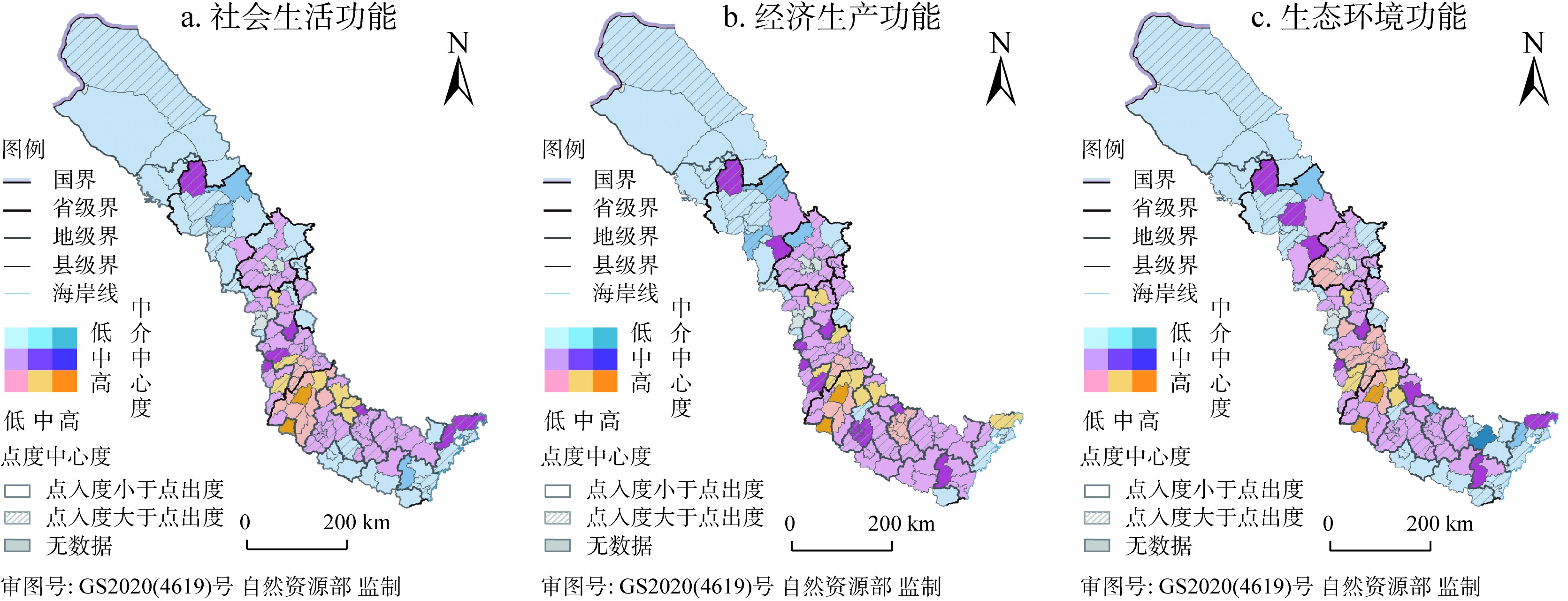

表3 2022年北方典型样带耕地多功能耦合网络像矩阵与板块内外互动效应Table 3 The image matrix and the interaction between inside and outside groups of the multifunctional coupling network of cultivated land in Northern China transect in 2022 |
像矩阵 | 接收关系/个 | 溢出关系/个 | 期望内 部比例/% | 实际内 部比例/% | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|
社 会 生 活 功 能 | 1 | 2 | 3 | 4 | 板块内 | 板块外 | 板块内 | 板块外 | |||
1 | 1 | 0 | 1 | 0 | 244 | 96 | 244 | 255 | 23.15 | 52.03 | |
2 | 0 | 1 | 1 | 0 | 38 | 38 | 38 | 123 | 10.19 | 23.60 | |
3 | 0 | 0 | 1 | 0 | 44 | 144 | 44 | 55 | 12.96 | 44.44 | |
4 | 0 | 0 | 0 | 0 | 282 | 202 | 282 | 77 | 50.93 | 78.55 | |
经 济 生 产 功 能 | 1 | 2 | 3 | 4 | |||||||
1 | 1 | 0 | 0 | 0 | 9 | 68 | 9 | 24 | 5.56 | 27.27 | |
2 | 0 | 1 | 0 | 0 | 252 | 224 | 252 | 112 | 37.96 | 69.23 | |
3 | 1 | 0 | 1 | 0 | 102 | 53 | 102 | 179 | 15.74 | 36.30 | |
4 | 0 | 0 | 0 | 0 | 133 | 142 | 133 | 172 | 37.96 | 43.61 | |
生 态 环 境 功 能 | 1 | 2 | 3 | 4 | |||||||
1 | 1 | 0 | 0 | 0 | 195 | 132 | 195 | 221 | 27.78 | 46.88 | |
2 | 0 | 1 | 1 | 0 | 12 | 29 | 12 | 52 | 5.56 | 18.75 | |
3 | 0 | 0 | 1 | 0 | 79 | 141 | 79 | 87 | 16.67 | 47.59 | |
4 | 0 | 0 | 0 | 0 | 241 | 212 | 241 | 154 | 48.15 | 61.01 |
