JOURNAL OF NATURAL RESOURCES >
Whole lifecycle assessment of carbon reduction benefits of polysilicon photovoltaics in Xinjiang
Received date: 2022-01-10
Revised date: 2022-04-13
Online published: 2023-03-08
Photovoltaic power, affected by a variety of natural and technical factors, is an important way to achieve deep carbon reduction in energy system. But its real carbon emission reduction still needs to be accurately reevaluated. Xinjiang, where the overall natural conditions are suitable for the development of photovoltaic power generation, but the vast spatial differentiation in local geographical features is also prominent, could be no doubt chosen as a study area to conduct this research. By ways of the life cycle assessment, LCA, the power generation model and carbon emission reduction model, this paper has calculated the carbon emission, power generation and carbon emission reduction in the whole life cycle of the 1 kW multi-crystalline silicon photovoltaic power under two degradation rates (DR) in Xinjiang, so as to provide a sound scientific basis for the further development of local photovoltaic industry in the region as well as research references to other regions alike. The research results show that: (1) Compared with thermal power, the carbon emission reduction of photovoltaic power in Xinjiang reaches 863 g CO2-eq (DR=1%) or 738 g CO2-eq (DR=3%) per kilowatt-hour, accounting for 93% or 79% carbon emission of thermal power separately, which is of great significance to the decarbonization of energy system in the region. (2) The spatial differentiation of carbon emission reduction in Xinjiang is prominent, showing a spatial trend of decreasing from east to west. Clustering analysis shows that photovoltaic layout in the study area should focus on the first- and second-level areas in potential grades, such as Hami, Turpan and Bayangol. (3) The future development of photovoltaic power in Xinjiang should concentrate on the perspective of the whole lifecycle carbon reduction, improve the middle to downstream industrial chain of photovoltaic production to meet the goal of realization of full local production, and fully consider the influencing factors in the construction and operation processes, such as solar radiation, degradation rate, and reasonable layout, as well as accelerate the development of end-of-life treatment and recovery technology.
Key words: carbon emission; power generation; carbon emission reduction; Xinjiang
DU Wen-jie , JIANG Yuan , GUAN Meng-xi , LIU Xiang-lan , KANG Mu-yi . Whole lifecycle assessment of carbon reduction benefits of polysilicon photovoltaics in Xinjiang[J]. JOURNAL OF NATURAL RESOURCES, 2023 , 38(3) : 694 -706 . DOI: 10.31497/zrzyxb.20230309
表1 数据及来源说明Table 1 Illustration to data sets and their sources |
数据 | 来源 | 时间段/年 |
---|---|---|
太阳辐射量/(kJ/m2/day) | WorldClim (https://www.worldclim.org/data/worldclim21.html) | 1970―2000 |
月均温度/°C | 同上 | 1970―2000 |
新疆地市行政边界 | 2015年中国地市行政边界数据(资源环境科学与数据中心) | 2015 |
GDP | 2020年《新疆统计年鉴》 《新疆维吾尔自治区2020年国民经济和社会发展统计公报》 | 2015―2019 2020 |
年发电量 | 2020年《新疆统计年鉴》 新疆维吾尔自治区发展和改革委员会公开数据 | 2015―2019 2020 |
表2 新疆各地市1 kW多晶硅光伏碳排放、发电量及减碳效益统计Table 2 Accounting for CE, LG and CER of 1 kW multi-Si PV system of cities in Xinjiang |
地区 | 碳排放/kg CO2-eq | 发电量/(kW·h) | 减碳效益/[g CO2-eq/(kW·h)] | 地区 | 碳排放/kg CO2-eq | 发电量/(kW·h) | 减碳效益/[g CO2-eq/(kW·h)] | ||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
DR=1% | DR=1% | DR=1% | DR=3% | DR=1% | DR=1% | DR=1% | DR=3% | ||||||
阿克苏地区 | 1742 | 24721 | 8634 | 860 | 729 | 阿拉尔市 | 1735 | 24860 | 8683 | 861 | 731 | ||
阿勒泰地区 | 1651 | 23565 | 8231 | 860 | 730 | 巴音郭楞蒙古自治州 | 1600 | 25925 | 9055 | 869 | 754 | ||
北屯市 | 1637 | 23474 | 8199 | 861 | 731 | 博尔塔拉蒙古自治州 | 1644 | 23896 | 8346 | 862 | 734 | ||
昌吉回族自治州 | 1522 | 24199 | 8452 | 868 | 750 | 哈密地区 | 1517 | 25980 | 9074 | 872 | 763 | ||
和田地区 | 1786 | 25490 | 8903 | 860 | 730 | 喀什地区 | 1851 | 24849 | 8679 | 856 | 717 | ||
克拉玛依市 | 1592 | 23848 | 8330 | 864 | 739 | 克孜勒苏柯尔克孜自治州 | 1841 | 24604 | 8593 | 856 | 716 | ||
石河子市 | 1549 | 23834 | 8325 | 865 | 744 | 塔城地区 | 1651 | 23734 | 8290 | 861 | 731 | ||
吐鲁番地区 | 1514 | 25463 | 8894 | 871 | 760 | 图木舒克市 | 1790 | 24726 | 8636 | 858 | 723 | ||
五家渠市 | 1527 | 23567 | 8231 | 866 | 745 | 乌鲁木齐市 | 1514 | 23870 | 8337 | 867 | 749 | ||
伊犁哈萨克自治州 | 1686 | 24259 | 8473 | 861 | 731 |

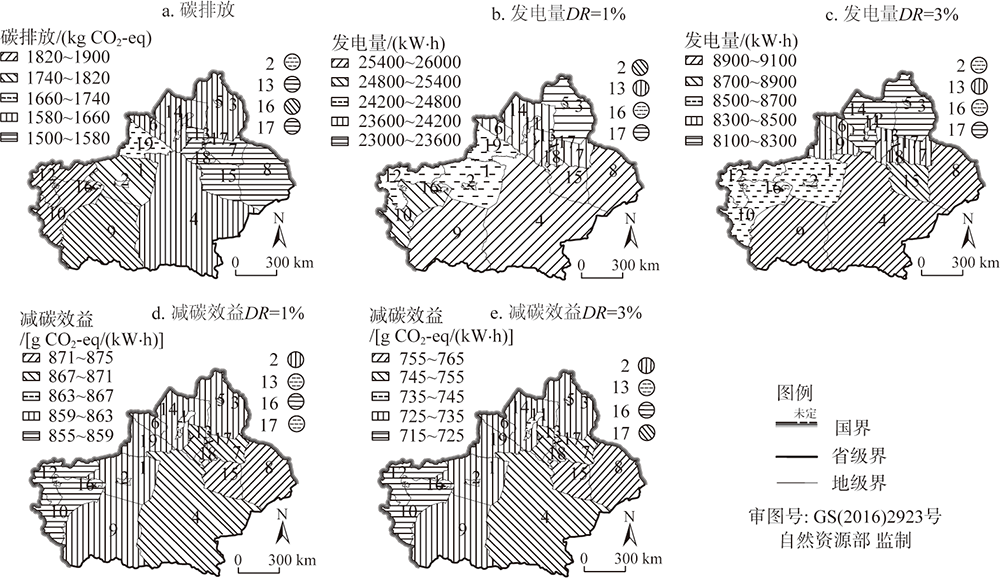

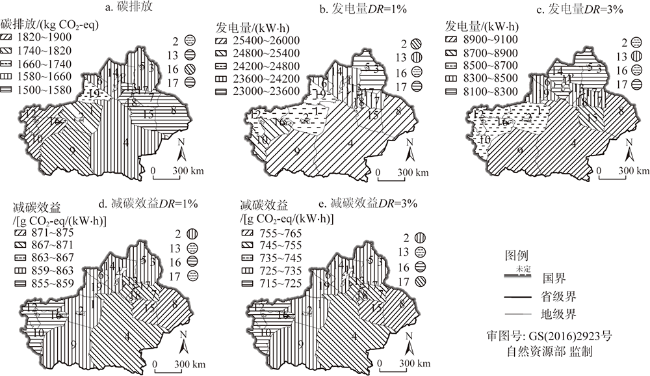

图3 新疆各地市1 kW多晶硅光伏碳排放、发电量及减碳效益空间分布注:本图基于自然资源部标准地图服务系统下载的标准地图制作,底图无修改;1为阿克苏地区,2为阿拉尔市,3为阿勒泰地区,4为巴音郭楞蒙古自治州,5为北屯市,6为博尔塔拉蒙古自治州,7为昌吉回族自治州,8为哈密地区,9为和田地区,10额喀什地区,11为克拉玛依市,12为克孜勒苏柯尔克孜自治州,13为石河子市,14为塔城地区,15为吐鲁番地区,16为图木舒克市,17为五家渠市,18为乌鲁木齐市,19为伊犁哈萨克自治州,下同。 Fig. 3 Spatial distribution of CE, LG and CER of 1 kW multi-Si PV system of cities in Xinjiang |
[1] |
IPCC. Climate change 2014:Synthesis report. Contribution of Working Groups I, II and III to the Fifth Assessment Report of the Intergovernmental Panel on Climate Change. https://www.ipcc.ch/report/ar5/syr/, 2014-11-01.
|
[2] |
黄贤金, 张秀英, 卢学鹤, 等. 面向碳中和的中国低碳国土开发利用. 自然资源学报, 2021, 36(12): 2995-3006.
[
|
[3] |
International Energy Agency. Net zero by 2050: A roadmap for the global energy sector. https://www.iea.org/reports/net-zero-by-2050, 2021-05-18.
|
[4] |
玉琦彤. 中国电力行业碳排放脱钩效应情景模拟. 环境科学与技术, 2021, 44(6): 194-200.
[
|
[5] |
沈镭, 钟帅, 胡纾寒. 新时代中国自然资源研究的机遇与挑战. 自然资源学报, 2020, 35(8): 1773-1788.
[
|
[6] |
International Energy Agency. Key world energy statistics 2020. https://www.iea.org/reports/Key World Energy Statistics 2020, 2020-08
|
[7] |
杨宇, 于宏源, 鲁刚, 等. 世界能源百年变局与国家能源安全. 自然资源学报, 2020, 35(11): 2803-2820.
[
|
[8] |
央广网. 习近平在《生物多样性公约》第十五次缔约方大会领导人峰会上的主旨讲话(全文). http://china.cnr.cn/gdgg/20211012/t20211012_525631263.shtml, 2021-10-12.
[CNR News. Xi Jinping attends and delivers a keynote speech at the leaders' summit of the 15th meeting of the conference of the parties to the convention on Biological Diversity, Resources and Environment. http://china.cnr.cn/gdgg/20211012/t20211012_525631263.shtml, 2021-10-12.]
|
[9] |
杨金焕. 光伏系统减排CO2潜力的分析. 见:杨德仁. 第十届中国太阳能光伏会议论文集:迎接光伏发电新时代. 杭州: 浙江大学出版社, 2008: 868-872.
[
|
[10] |
牟初夫, 王礼茂, 屈秋实, 等. 主要新能源发电替代减排的研究综述. 资源科学, 2017, 39(12): 2323-2334.
[
|
[11] |
|
[12] |
|
[13] |
|
[14] |
杨建新, 徐成, 王如松. 产品生命周期评价方法及应用. 北京: 气象出版社, 2002: 65-67.
[
|
[15] |
|
[16] |
|
[17] |
|
[18] |
|
[19] |
赵若楠, 董莉, 白璐, 等. 光伏行业生命周期温室气体排放清单分析. 中国环境科学, 2020, 40(6): 2751-2757.
[
|
[20] |
|
[21] |
|
[22] |
谢明辉, 阮久莉, 白璐, 等. 太阳能级多晶硅生命周期环境影响评价. 环境科学研究, 2015, 28(2): 291-296.
[
|
[23] |
|
[24] |
|
[25] |
|
[26] |
毛东雷, 蔡富艳, 雷加强, 等. 新疆策勒沙漠—荒漠—绿洲典型下垫面小气候空间变化分析. 地理科学, 2017, 37(4): 630-640.
[
|
[27] |
龚道仁, 陈迪, 袁志钟. 光伏发电系统碳排放计算模型及应用. 可再生能源, 2013, 31(9): 1-4, 9.
[
|
[28] |
国家发展和改革委员会. 2013中国区域电网基准线排放因子. https://www.mee.gov.cn/ywgz/ydqhbh/wsqtkz/index_3.shtml, 2018-12-20.
[National Development and Reform Commission. 2013 baseline emission factors for regional power grids in China. https://www.mee.gov.cn/ywgz/ydqhbh/wsqtkz/index_3.shtml, 2018-12-20.]
|
[29] |
国家发展和改革委员会. 2014中国区域电网基准线排放因子. https://www.mee.gov.cn/ywgz/ydqhbh/wsqtkz/index_3.shtml, 2018-12-20.
[National Development and Reform Commission. 2014 baseline emission factors for regional power grids in China. https://www.mee.gov.cn/ywgz/ydqhbh/wsqtkz/index_3.shtml, 2018-12-20.]
|
[30] |
国家发展和改革委员会. 2015中国区域电网基准线排放因子. https://www.mee.gov.cn/ywgz/ydqhbh/wsqtkz/index_3.shtml, 2018-12-20.
[National Development and Reform Commission. 2015 baseline emission factors for regional power grids in China. https://www.mee.gov.cn/ywgz/ydqhbh/wsqtkz/index_3.shtml, 2018-12-20.]
|
[31] |
国家发展和改革委员会. 2016年度减排项目中国区域电网基准线排放因子. https://www.mee.gov.cn/ywgz/ydqhbh/wsqtkz/index_3.shtml, 2018-12-20.
[National Development and Reform Commission. 2016 baseline emission factors for regional power grids of annual emission reduction project in China. https://www.mee.gov.cn/ywgz/ydqhbh/wsqtkz/index_3.shtml, 2018-12-20.]
|
[32] |
中华人民共和国生态环境部. 2017年度减排项目中国区域电网基准线排放因子. https://www.mee.gov.cn/ywgz/ydqhbh/wsqtkz/index_3.shtml, 2018-12-20.
[Ministry of Ecology and Environment of the People's Republic of China. 2017 baseline emission factors for regional power grids of annual emission reduction project in China. https://www.mee.gov.cn/ywgz/ydqhbh/wsqtkz/index_3.shtml, 2018-12-20.]
|
[33] |
中华人民共和国生态环境部. 2018年度减排项目中国区域电网基准线排放因子. https://www.mee.gov.cn/ywgz/ydqhbh/wsqtkz/index_1.shtml, 2020-12-29.
[Ministry of Ecology and Environment of the People's Republic of China. 2018 baseline emission factors for regional power grids of annual emission reduction project in China. https://www.mee.gov.cn/ywgz/ydqhbh/wsqtkz/index_1.shtml, 2020-12-29.]
|
[34] |
中华人民共和国生态环境部. 2019年度减排项目中国区域电网基准线排放因子. https://www.mee.gov.cn/ywgz/ydqhbh/wsqtkz/index_1.shtml, 2020-12-29.
[Ministry of Ecology and Environment of the People's Republic of China. 2019 baseline emission factors for regional power grids of annual emission reduction project in China. https://www.mee.gov.cn/ywgz/ydqhbh/wsqtkz/index_1.shtml, 2020-12-29.]
|
[35] |
|
[36] |
|
[37] |
|
[38] |
|
[39] |
|
[40] |
|
[41] |
李明, 王贵文, 柴旭荣, 等. 基于空间聚类的中国东北气候分区及其气象干旱时间变化特征. 自然资源学报, 2019, 34(8): 1682-1693.
[
|
[42] |
肖雁青, 江源, 张文涛, 等. 黄芩 (Scutellaria baicalensis G.) 主要有效成分的区域差异及聚类分析. 资源科学, 2010, 32(9): 1821-1828.
[
|
[43] |
陈卫平, 涂宏志, 彭驰, 等. 环境模型中敏感性分析方法评述. 环境科学, 2017, 38(11): 4889-4896.
[
|
[44] |
|
[45] |
张振芳. 露天煤矿碳排放量核算及碳减排途径研究. 徐州: 中国矿业大学, 2013.
[
|
[46] |
胡永飞, 张海滨. 外购热力导致的间接温室气体排放量计算方法. 中外能源, 2014, 19(3): 96-100.
[
|
[47] |
叶宏亮, 马文会, 杨斌, 等. 工业硅生产过程生命周期评价研究. 轻金属, 2007, (11): 46-49.
[
|
[48] |
央视新闻. 低碳环保未来中国四成用电将来自光伏. http://m.news.cctv.com/2021/04/24/ARTIdftX56lkP2LeuTvbjbxR210424.shtml#, 2021-04-24.
[CCTV NEWS. Low-carbon and environmentally friendly, 40% electricity will come from photovoltaic in future in China. http://m.news.cctv.com/2021/04/24/ARTIdftX56lkP2LeuTvbjbxR210424.shtml#, 2021-04-24.]
|
[49] |
潘志刚. 推动新疆硅产业高质量发展的路径选择. 化工管理, 2020, (21): 1-2.
[
|
/
〈 |
|
〉 |
