基于生态系统服务优化的滨海湿地一体化保护—修复格局构建

智烈慧, 周方文, 李晓文, 马田田, 邵冬冬, 白军红, 崔保山, 郭卫华

自然资源学报 ›› 2023, Vol. 38 ›› Issue (12) : 3150-3165.

PDF(3301 KB)
PDF(3301 KB)
自然资源学报 ›› 2023, Vol. 38 ›› Issue (12) : 3150-3165. DOI: 10.31497/zrzyxb.20231213
其他研究论文

基于生态系统服务优化的滨海湿地一体化保护—修复格局构建

作者信息 +

Maximal multiple ecosystem services for coastal wetlands by integrating their conservation and restoration pattern in the Yellow River Delta, China

Author information +
文章历史 +

摘要

传统的湿地修复实践侧重点状效果,较少关注景观尺度的空间选址策略。而滨海受损湿地与未受损自然湿地具有结构和功能联系,因此保护和修复应协同优化。以黄河三角洲滨海湿地为例,将湿地保护与修复格局统一到滨海湿地典型生态系统服务(碳储、生境质量和水质净化)提升构架下,以受损区内优势种的适宜生境作为潜在修复区,发展了一套一体化保护—修复格局构建及优化方法。结果表明:保护和修复50%的生态系统服务核心区能够以最小的成本实现目标最大化;为达成该目标应优先将部分自然湿地划入保护区,随后撤出保护区内现存的养殖池,最后实施保护区内的退盐还湿和保护区外的退养还滩。研究提出的方法丰富了国土空间生态修复的技术体系,确定的保护—修复优先区有助于科学划定生态“保护红线”和“修复绿线”,相关调控措施能够为优化滨海湿地现有保护格局提供科学的决策支持。

Abstract

Traditional restoration practice focused on the site-based success, with less concern about spatial strategy of site-selection restoration at landscape scale. However, site-based restoration may achieve extra ecological benefits if they spatially form an eco-network with existing protected area where their ecosystem functioning can be co-beneficial each other. We therefore developed a novel site-selection spatial strategy to optimize restoration and conservation pattern with maximized co-benefits of ecosystem services (ES) for the coastal wetlands in the Yellow River Delta. We firstly identified the potential restorable sites and target salt marsh based on their hydro-geomorphological regimes using Gaussian model, and captured the hotspots of three major types of ES (i.e., habitat, carbon sequestration, water purification) spatial explicitly by InVEST across the river delta after restoration. Then, the method of Systematic Conservation Planning was used to determine the integrated conservation-restoration pattern and optimal conservation-restoration ratio under the gradient of each conservation-restoration ratio. This involved weighing the economic costs of ecological functions, protecting existing wetlands, and restoring potential wetlands, as well as the representativeness, complementarity, and connectivity of multiple typical ecosystem services under the potential pattern. Finally, the study suggests conservation-restoration tactics within the framework of each scale's optimum pattern. The study suggests conservation-restoration procedures based on the ideal distribution of each proportion. The result indicates that maintaining 50% of ES hotspots after restoration would be the cost-efficient target setting to maximize the regional ES with minimized cost, and thus the prioritized sites for restoration were filtered out by excluding existing protected area from those selected ES hotspots at this target level (50%) across the delta. The integrated conservation-restoration pattern of coastal wetlands that this study proposes to build and optimize enriches the technical system of ecological restoration of land space, and the priority areas for conservation and restoration as well as related regulatory measures can support scientific decision-making for optimizing the current conservation pattern of coastal wetlands.

关键词

生态系统服务 / 系统保护规划 / 国土空间生态修复 / 一体化保护修复 / 滨海湿地

Key words

ecosystem service / system protection planning / ecological restoration of land and space / integrated conservation and restoration / coastal wetlands

引用本文

导出引用
智烈慧, 周方文, 李晓文, 马田田, 邵冬冬, 白军红, 崔保山, 郭卫华. 基于生态系统服务优化的滨海湿地一体化保护—修复格局构建[J]. 自然资源学报, 2023, 38(12): 3150-3165 https://doi.org/10.31497/zrzyxb.20231213
ZHI Lie-hui, ZHOU Fang-wen, LI Xiao-wen, MA Tian-tian, SHAO Dong-dong, BAI Jun-hong, CUI Bao-shan, GUO Wei-hua. Maximal multiple ecosystem services for coastal wetlands by integrating their conservation and restoration pattern in the Yellow River Delta, China[J]. JOURNAL OF NATURAL RESOURCES, 2023, 38(12): 3150-3165 https://doi.org/10.31497/zrzyxb.20231213
近半个世纪以来,港口建设、滩涂围垦、近岸水产养殖等高强度的围填海活动导致沿海滩涂、盐沼、红树林和海草床等滨海湿地被侵占[1-4],使得滨海湿地生态系统结构受损和功能退化。如何保护好现有的滨海湿地、修复退化的滨海湿地,有效促进生态保护与社会经济的协调,是实现中国滨海区域可持续发展亟待解决的关键问题,也是构建滨海区域生态安全屏障的战略需求。
对全球621处湿地修复项目效果进行评估,发现修复后湿地生态功能只有健康湿地均值的23%~26%,如果继续当前缺乏规划布局的修复模式,不仅低效甚至可能导致负面效果[5],而考虑与现状生态系统的交互影响关系会取得更好的修复成效[6]。对中国超过1000个滨海湿地修复项目进行分析发现,滨海湿地修复规划与湿地退化程度、生态系统服务重要性之间存在着不协调的关系[7]。为实现人类活动与自然生态系统协同发展,高效利用湿地修复的资本投入,需要寻求经济发展和生态系统服务发挥间的平衡[8]。系统保护规划思想(Systematic Conservation Planning,SCP)是保护规划发展的新阶段,考虑规划单元对生物多样性或生态系统服务的代表性、互补性及其格局对景观连通性的贡献等,以经济成本代价为约束条件,通过优化算法评估规划单元的不可替代性,确定优先保护格局[9-11]。目前,国内外已有学者将系统保护规划思想用于研究湿地的保护格局优化[12-15]。近几年,系统保护规划的理论与方法进一步拓展到湿地修复格局研究,Hermoso等[16]率先提出淡水湿地系统修复理论构架。接着,一些学者基于此对德国、瑞士的河流进行系统修复规划选址[17,18]。中国的湿地修复规划开展较晚,主要是针对具体湿地类型进行修复规划,包括对河流湖泊湿地区域[19]、红树林等重要湿地的单项规划,以及生态城市建设中的湿地修复规划等[20-23]。另外,中国也开展了一些较大尺度的区域性湿地生态修复规划[24]。国内外湿地保护与修复规划的理论和实践表明:单一位置、单一组分或者单一生态系统类型的孤立点状修复模式,因缺乏从区域生态系统层面对整体修复格局的优化,结果往往导致总体修复成效较低,因而难以从实质上解决人类活动干扰下湿地受损的问题。可以说,强调湿地的系统修复是对局限于小尺度、孤立格局湿地修复模式的反思[25]
生态系统的修复同处在保护区内的生态系统一样,对维持区域生物多样性同样具有重要意义[26],而当前对保护生物学和恢复生态学二者的整合不足[27]。虽然当前系统保护规划理论已经拓展到修复研究中,解决了修复选址的系统优化问题,但没有考虑湿地修复格局对既有保护体系整体功能的影响,以及现有保护格局与修复格局之间的功能耦合效应,难以达到湿地保护与修复的内在整合和整体优化[25]。因此,湿地修复应关注修复格局的顶层设计,强调对受损湿地生态系统大尺度格局和功能修复与补偿的同时,需要建立一套滨海湿地一体化保护—修复格局优化方法[28]。不同于聚焦局域尺度土壤、植被、生物和水文等生态要素的传统修复模式,该方法强调区域尺度生态保护与生态修复格局的系统整合、权衡和整体功能优化[29]
黄河三角洲拥有中国暖温带保存最完整、最广阔、最年轻的湿地生态系统。自1976年黄河改道由清水沟入海起,黄河三角洲经历了高强度的围填海活动,自然湿地大面积萎缩。黄河三角洲滨海湿地已开展的湿地保护和修复项目在数量上较为可观。2019年《关于印发山东省打好渤海区域环境综合治理攻坚作战方案的通知》指出实施退耕(养)还湿(滩)等工程,恢复黄河三角洲、莱州湾等近海与海岸受损湿地生态功能和自然属性。2021年发布的《黄河流域生态保护和高质量发展规划纲要》明确指出黄河三角洲生物多样性保护价值和生态屏障作用,强调黄河三角洲的生态保护及污染治理。山东省人民政府制定《水污染防治行动计划》鼓励引导通过湿地净化鱼塘退水,削减入水污染负荷。但是在区域层面上,保护与修复工程是否可以达到空间与功能的高效整合优化尚不清楚。因此,对黄河三角洲滨海湿地进行一体化保护和修复格局的构建及优化,既契合了中国沿海区域可持续发展重大战略需求,又立足于国际相关领域前沿,具备重要的应用实践和科学研究意义。

1 研究方法与数据来源

1.1 技术路线

本文发展了一套滨海湿地多生态系统服务一体化保护—修复格局构建及优化的方法框架,技术流程见图1,包括:(1)利用高斯模型拟合确定滨海湿地优势种在湿地退化区的植被适宜生境,并以此作为潜在修复区,与自然湿地共同组成潜在保护—修复格局;(2)利用InVEST模型等模拟潜在保护—修复格局下典型生态系统服务,筛选高值核心区作为保护—修复对象,而后考虑对象的聚集性、不可替代性等,利用系统保护规划模型(Marxan模型)权衡在保护—修复目标水平梯度下的成本和功能;(3)通过敏感性分析确定各目标水平下的最优格局及最优目标水平对应的保护—修复格局,最后与现有保护区叠置,确定保护—修复策略的优先性。该方法旨在整合受损湿地的修复格局与现状湿地的保护格局,并通过生态系统服务和生态保护—修复成本代价的权衡实现保护与修复格局的协同优化。确定的最优保护—修复格局是对滨海湿地现有保护体系和格局的补充,同时强调湿地修复对区域整体生态功能提升的作用,旨在充分挖掘生态功能提升的潜力。后文详细介绍涉及的三个关键技术方法:识别潜在保护—修复格局、确定保护—修复对象和实施系统保护规划方法。

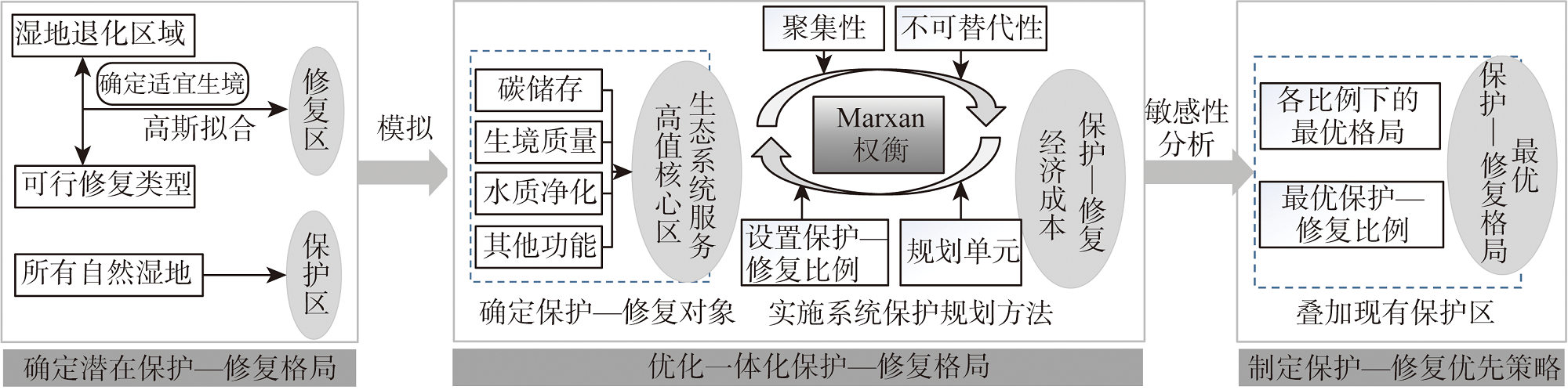

图1 基于生态系统服务优化的滨海湿地一体化保护—修复格局构建方法框架

Fig. 1 The methodological framework to identify integrated conservation-restoration pattern construction process based on ecosystem service optimization in coastal wetlands

Full size|PPT slide

1.2 研究区概况与数据来源

黄河三角洲位于山东省渤海湾南岸、莱州湾西岸,天然植被由耐盐草本和灌木组成,拥有发挥着重要碳储功能的滨海蓝碳生态系统,总面积12300 km2图2)。为丹顶鹤(Grus japonensis)、鹳、白琵鹭(Platalea leucorodia)等91种候鸟提供了越冬地、繁殖地和停歇生境,区内珍稀濒危鸟类40余种[30],鸟类种数占全国的1/5[31,32],是国际生物多样性保护重要湿地。现有1个国家自然保护区,下设一千二、黄河口、大汶流3个管理站,2个省级自然保护区,5个其他保护区和34个湿地公园(图2)。作为中国北方滨海湿地的典型代表,生态系统服务丰富、生产力和经济潜力高的同时,农业、海水养殖、石油开采和盐业等围垦开发工程导致滨海湿地大面积丧失、生物多样性下降、水体污染负荷加重[33],使得固碳、生境质量和水质净化三种滨海湿地典型且重要功能的生态效益不断丧失,从而加剧了黄河三角洲滨海湿地开发利用与生态保护间的矛盾,最终导致其生态屏障作用受损[34-36]

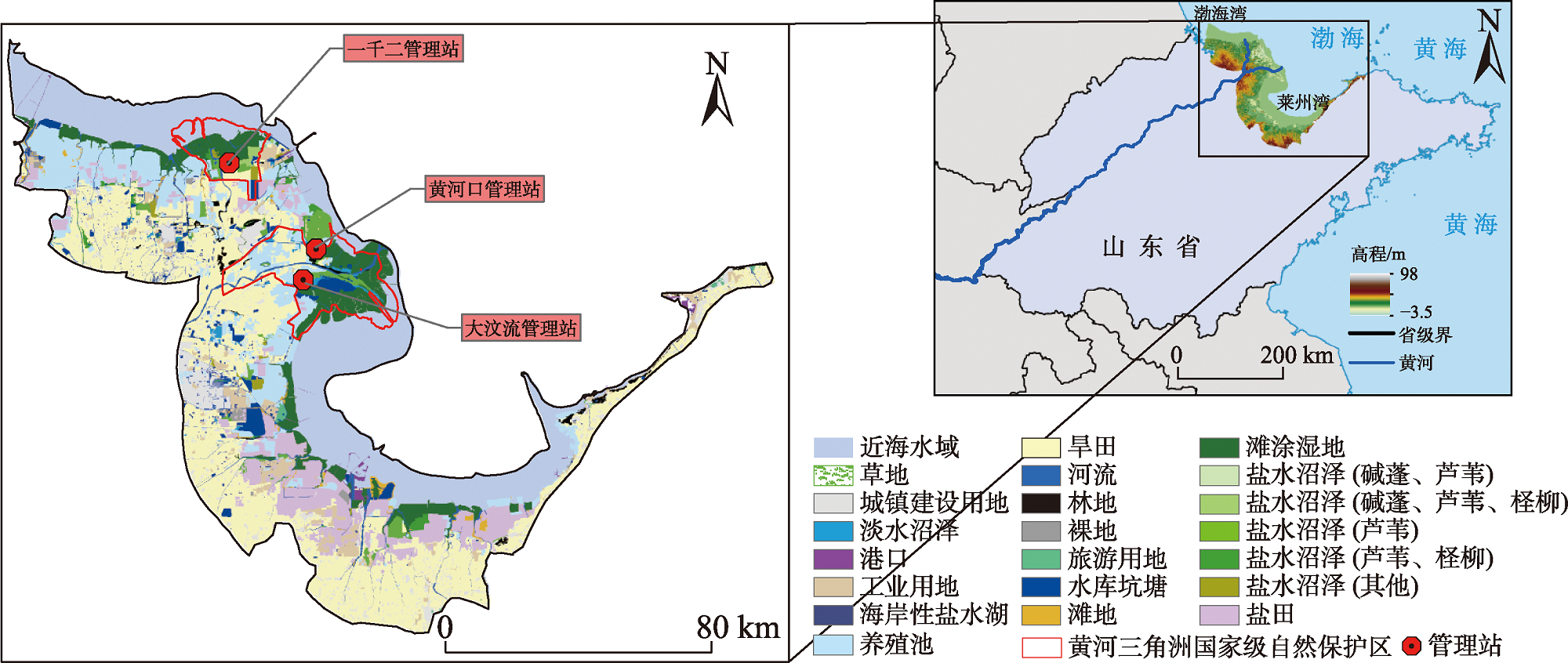

图2 黄河三角洲区位及土地利用分布

Fig. 2 Geographic position and land use map in the Yellow River Delta

Full size|PPT slide

用于土地利用转移情况分析、盐地碱蓬 [Suaeda salsa (L.) Pall.] 生长区确定和开展生态系统服务模拟的1976年与2015年细分盐沼植被类型土地利用空间分布数据集,由中国科学院东北地理与农业生态研究所生产[37]图2)。归一化植被指数(Normalized Difference Vegetation Index,NDVI)的计算基于地理空间数据云(https://www.gscloud.cn/)平台下载的Landsat 8遥感影像(2015年06月05日,空间分辨率30 m,云量0.15%)。高程数据使用了空间分辨率为90 m的SRTM(Shuttle Radar Topography Mission)(https://www.gscloud.cn/),研究通过格网DEM—等高线—不规则三角网的转化将其垂直精度由1 m降尺度为0.5 m,用于后续植被生境适宜性模拟。生态系统服务模拟用到的碳密度库、威胁信息表和生境敏感性评价表依据周方文等[38]的研究,各类植被的氮磷积累依据相关文献[39]

1.3 研究方法

1.3.1 确定潜在保护—修复格局

以现有土地利用类型中的自然湿地作为潜在保护区,确定潜在保护—修复格局的关键是潜在修复区的识别。首先通过分析1976—2015年的土地利用转移情况,明晰自然湿地的主要去向,即围填海等滨海土地利用导致滨海湿地类型性质改变,进而导致生态系统服务退化的区域(例如在原有自然湿地上建设港口、堤坝、盐田、养殖池,开垦农田和开发油田的区域)。而退养还滩和退盐还湿在政策与案例上均具有可行性及可参考性[40],因此在现状为盐田和养殖池的自然湿地受损区域内筛选植被群落的潜在修复生境。
选择黄河三角洲滨海盐沼湿地优势物种盐地碱蓬的生长适宜区作为修复目标生境。盐地碱蓬生长主要受土壤水分和盐度影响,二者和盐地碱蓬生物量的关系呈现高斯分布[41]。在盐地碱蓬的适生区内,水分和盐度与高程均在1%水平下呈显著的负相关[42]。因此将盐地碱蓬的分布与高程进行高斯拟合,利用高程预测盐地碱蓬的潜在生长区,确定盐地碱蓬的生态阈值,将预测得到生长适宜区作为潜在修复格局。高斯模型的表达式[41]为:
y=ce-(x-μ)22t2
(1)
式中:y为生物指标(多度、盖度、密度、生物量等);c为对应指标的最大值; e为自然常数;x为环境因子值; μ为植物种的环境因子最适值;t为该植物种的耐度,是描述植物种生态阈值的一个指标。植物种的生态阈值区间为 [ μ-2t, μ+2t],最适生态阈值区间为 [ μ-t, μ+t]。在研究中,黄河三角洲盐地碱蓬分布栅格数目N与高程分布呈现明显的高斯分布,lnN-DEM二次多项式拟合结果为:lnN= -0.2086×DEM 2+0.3851×DEM+7.6801(R2=0.9838),进而求得NDEM的高斯分布拟合曲线如图3

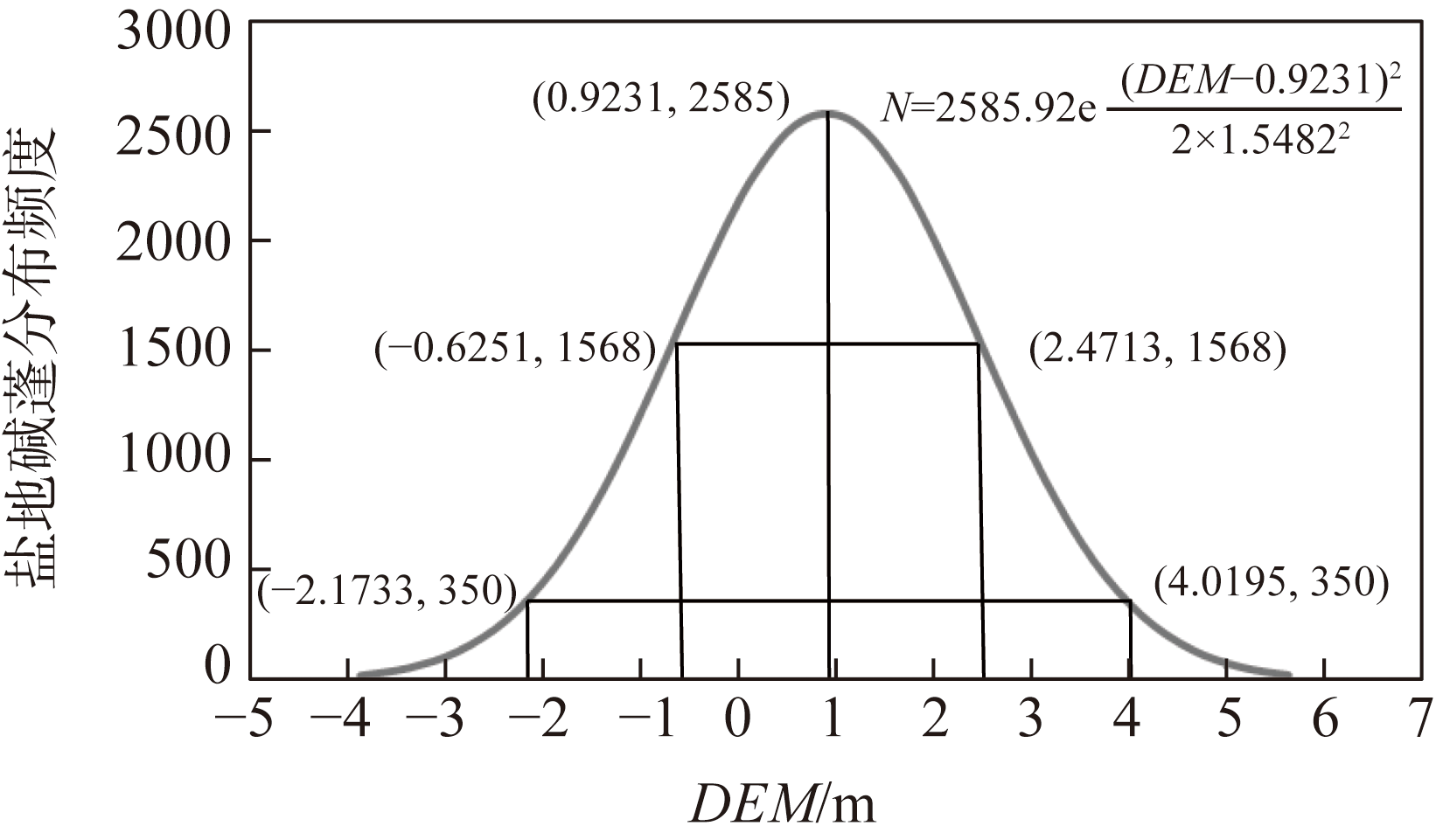

图3 盐地碱蓬分布频度与高程的高斯拟合结果

Fig. 3 The fitting results of distribution frequency of Suaeda salsa with their elevation by Gaussian modelling

Full size|PPT slide

1.3.2 确定保护—修复对象

研究模拟了潜在保护—修复格局下的滨海湿地典型且重要的三种生态系统服务(碳储存、生境质量和水质净化),在最大值标准化处理后,采用自然断点法重分类筛选出高值核心区,以该区域的生态系统服务作为保护—修复的对象应用于系统保护规划方法。
(1)碳储存功能模拟
生态系统将碳储存在植物、其他生物质和土壤中,把CO2固定在可以引起气候改变的大气之外,就实现了固碳功能。盐沼等滨海湿地在碳储存方面的效率非常高,这使得蓝碳碳汇成为滨海湿地最重要的生态系统服务之一。生态系统由四个基本碳库组成:地上、地下、土壤和凋落有机物碳库。依据已有研究[38]调查的碳密度库(表1),绘制潜在保护—修复格局下的碳储存功能空间分布。对于潜在修复区,将预测的生物量分布做最大值归一化处理后与均值之比作为校正系数校正碳密度。
表1 黄河三角洲细分植被类型碳库

Table 1 Carbon pool by vegetation type in Yellow River Delta (t/hm2)

土地利用类型 地上碳密度 地下碳密度 土壤碳库 凋落物有机碳
草地 5 2 15 0.3
城镇建设用地 0 0 12 0
淡水沼泽 17 8 15 0.6
港口 0 0 8 0
工业用地 0 0 12 0
海岸性盐水湖 2 1 27 0
旱田 9 4 25 0.3
河流 1.5 0.5 20 0
林地 31.4 6.9 24.5 0.2
裸地 0 0 17 0
旅游用地 0 0 12 0
水库坑塘 1 0.5 30 0
滩地 0.5 0 15 0
滩涂湿地 0.5 0 15 0
盐水沼泽(盐地碱蓬、芦苇) 4 2 17 0.3
盐水沼泽(盐地碱蓬、芦苇、柽柳) 6 2 20 0.2
盐水沼泽(芦苇) 14 7 15 0.6
盐水沼泽(芦苇、柽柳) 10 3 20 0.3
盐水沼泽(其他) 8 8 15 0.6
盐田 0 0 17 0
养殖池 0 0 17 0
潜在修复区 3 1 20 0.2
注:芦苇 [Phragmites australis (Cav.) Trin. ex Steu],柽柳(Tamarix chinensis Lour.)。
(2)生境质量模拟
依托InVEST模型的生境质量模块(Habitat Quality),通过生态威胁因子的影响程度、生态威胁因子的最大影响距离、生境对于生态威胁因子的敏感程度以及法律保护情况与保护区的设立等因素,来考量生境退化和生境质量。具体而言,以保护濒危物种黑嘴鸥(Larus saundersi)和丹顶鹤的生境为目标,考虑不同用地类型的生境适宜性及对生态威胁因子建设用地、养殖池、农田、盐田的生境敏感性(表2[38],进行黄河三角洲生境质量的模拟。模拟结果中,生境质量高的区域将更好地支持生物多样性,反之则意味着生物多样性持久性、弹性、恢复性的降低。
表2 生境适宜性及生境对各威胁因子的敏感度参数

Table 2 Habitat suitability and habitat sensitivity parameters

土地利用 生境适宜性 生境对各威胁因子的敏感度参数
养殖池 盐田 建设用地 农田
草地 1 0 0.4 0 0.8
林地 1 0 0.5 0.2 0.1
农田 0 0.2 0.6 0.4 1
盐田 0 0 0 0 0
湿地 1 0.9 0.6 0.9 0.8
水体 1 0.7 0 0.1 0
裸地 0 0 0 0 0
建设用地 0 0.5 0 0 0
(3)水质净化模拟
滨海湿地生态系统通过物理、化学和生物协同作用,以吸附、吸收、过滤和降解等方式实现对含氮、磷污染水体的高效净化。水质净化功能模拟用于评估区域生态系统截留、消减水体营养物质的能力。研究采用黄河三角洲优势湿地植被芦苇、盐地碱蓬和柽柳对氮、磷的累积能力作为衡量湿地的水质净化功能的指标。氮、磷积累量为植被生物量与氮、磷含量之积(表3),各植被i净化能力指数 Wi的计算方法为:
Wi=Nii=1nNi+Pii=1nPi
(2)
Aj=Wi×NDVIj
(3)
式中:植被i的氮累积量为 Ni(g/m2);磷累积量为 Pi(g/m2);n为植被类型数目(类)。特别地,研究使用NDVI表征生物量,而对于同一植被类型来说,植被氮磷含量取均值的情况下,氮磷积累量与生物量呈线性关系,因此选择NDVI为修正系数得到每个栅格j的植被净化能力指数 Aj
表3 植被氮磷积累相关数据[39]

Table 3 The data of the plant nitrogen (N) and phosphorus (P) accumulation[39]

芦苇 盐地碱蓬 柽柳
氮含量/(mg/g) 地上 11.5 7 14.5
地下 5.5 5 9
磷含量/(mg/g) 地上 1.1 0.9 1.5
地下 1 1.5 1
生物量/(g/m2) 1400 500 1000

1.3.3 利用系统保护规划方法确定最优保护—修复格局

依托系统保护规划理论经典模型Marxan[43,44],优化基于多生态系统服务提升的一体化保护—修复格局,该一体化保护—修复优化格局能以最小的代价(保护—修复的经济成本)最大程度地发挥滨海湿地生态系统服务。采用1 km网格为规划单元,保护—修复对象为三类生态系统服务的高值核心区。因生境质量、滨海蓝碳及水质净化均为黄河三角洲滨海湿地关键生态系统服务,在本文中视为同等重要并设定一致的重要性参数。重要性参数的设置可依据保护修复规划的需求进行差异化设定。此外,设置30%~80%以10%为梯度的6个保护和修复目标比例。
保护—修复的经济成本包括机会成本和工程成本。采取“保护”措施的生境,生境类型维持不变,其机会成本即为成本。对于保护区外的湿地,湿地不能再被用作经济活动,机会成本即湿地被用作经济活动的利润,理论上应采用该范围内经济价值最高的经济开发活动的利润;对于保护区内湿地,其经济开发利用受到法规约束,在此设置为0元。采取“修复”措施的生境会导致土地利用类型的改变,即围填海活动撤出并将其修复为湿地,直接损失的经济利润即为湿地修复的机会成本,退养还湿的机会成本对应了养殖的经营利润,退盐还湿的机会成本对应了盐田的经营利润;此外,湿地修复是人为干预,需考虑其工程成本。经过文献和年鉴的数据收集[45,46],计算得到退养还滩的机会成本为1822.3万元/km2,退盐还湿的机会成本为45.5万元/km2。经过调研,研究参考黄河三角洲2010—2014年已有的湿地修复项目工程成本,以620万元/km2作为实际工程成本。
使用BLM(Boundary Length Modifer,边缘长度调节)模块调节格局的聚集度。对于各保护—修复目标水平,均设置能够反映成本代价和边界长度变化趋势的BLM值,在Marxan中分别输入这些BLM值,再利用模拟退火算法优化得到每个BLM对应的最优边界长度—成本组合。通过聚集度与保护成本之间的敏感性分析确定各目标水平下兼顾湿地修复格局聚集性和修复成本的最适BLM值及对应的最优保护—修复格局。进而在最适BLM下对保护目标水平及对应的成本和聚集性做敏感性分析,确定最优保护—修复目标水平及格局。

2 结果分析

2.1 潜在保护—修复格局

由1976—2015年土地利用转移(图4)可知,黄河三角洲土地利用转变复杂,自然湿地面积大幅减少,主要转化为旱地、养殖池和盐田,其中32.18%的滩涂、34.71%的沼泽转变为养殖池,12.42%的沼泽转变为盐田。由于养殖和盐田是研究区占用自然湿地面积最大的围填海形式,且已在此成功开展了一些生态修复工程,因此研究将养殖和盐田作为潜在恢复区的基本类型。

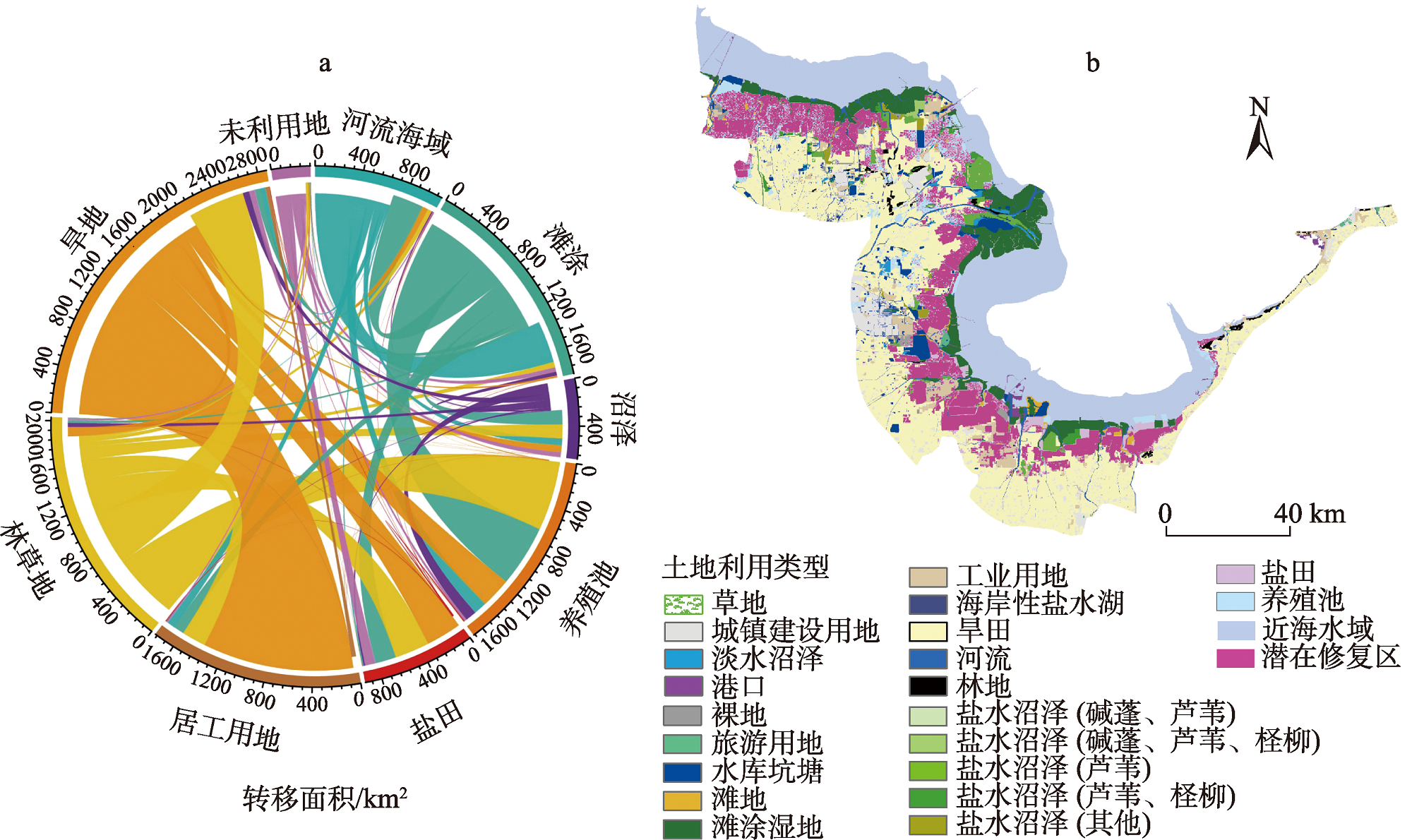

图4 黄河三角洲1976—2015年土地利用转移面积及土地利用潜在保护—修复格局

Fig. 4 Land use transformation and the potential land use pattern for conservation and restoration in the Yellow River Delta during 1976-2015

Full size|PPT slide

盐地碱蓬在研究区内分布的高程范围基本在0~5 m,出现频度随DEM变化呈现出明显的高斯分布。依据高斯拟合结果(图3)可知,盐地碱蓬的最适生态阈值区间为 [-0.6251, 2.4713]/m。将盐田和养殖池范围内的盐地碱蓬最适区间作为其潜在修复区,总面积达1755.14 km2,现有生境中的自然湿地(淡水沼泽、咸水沼泽、滩涂、海岸性盐水湖)作为潜在保护区,二者共同组成潜在保护—修复格局(图4)。

2.2 保护—修复对象模拟结果

潜在保护—修复格局下的黄河三角洲碳储存、生境质量和水质净化功能模拟结果经最大值标准化处理后如图5。碳储存在黄河三角洲国家级自然保护区和黄河故道周边最高,潜在修复区次之。东部的国家级湿地保护区、北部的黄河故道为生境质量相对较高的区域,较适宜丹顶鹤和黑嘴鸥生存,而工业用地等大部分人工环境都不适宜丹顶鹤和黑嘴鸥生存。水质净化功能在潜在修复区高于国家级湿地保护区,可见黄河三角洲的水质净化功能具有很大的修复潜力。

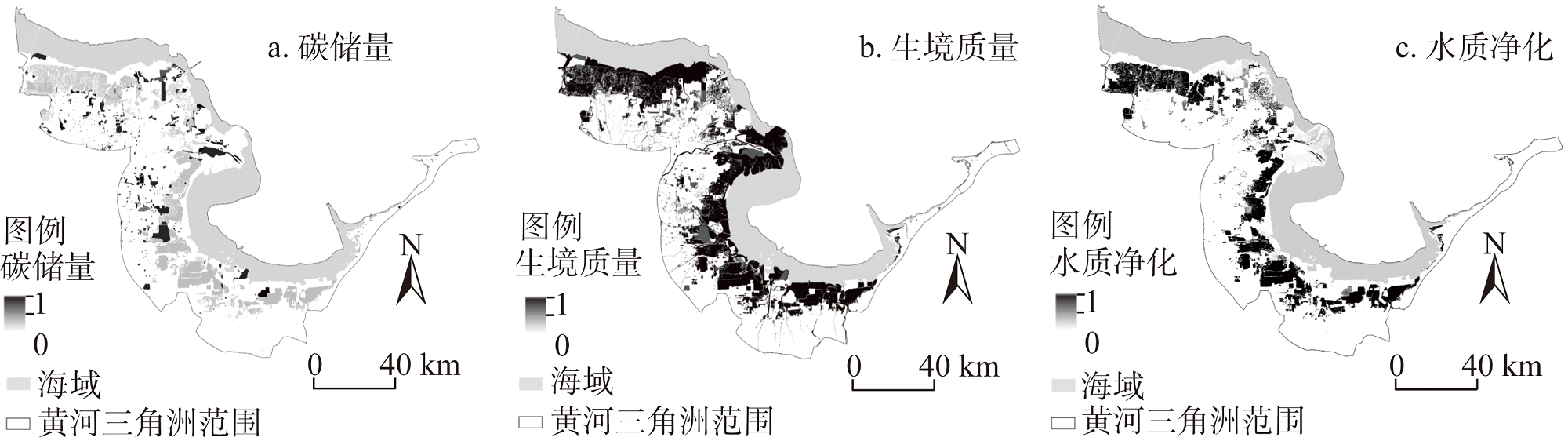

图5 黄河三角洲碳储存、生境质量、水质净化生态系统服务空间格局分布

Fig. 5 Spatial pattern of multiple ecosystem services (i.e., carbon storage, habitat quality and water purification) in the Yellow River Delta

Full size|PPT slide

利用自然断点法对3类生态系统服务模拟结果进行分级,依据各级栅格数所占比例,筛选碳存储5级(占比29%)、生境质量5级(占比25%)和水质净化5级(占比15%)为生态系统服务的高值核心区,作为后续利用Marxan进行不同保护—修复比例优化时的对象。

2.3 最优保护—修复目标水平及一体化保护—修复格局

在临近拐点处加密设置了BLM的值,边界长度和经济成本的敏感性分析如图6a。边界长度随成本变化的曲线存在明显的突变点。随着成本的增加,边界长度均先快速下降后平稳变化,因此突变点处为聚集度最适值,不同保护—修复比例突变点对应的BLM图6a,分别是1200、1800、700、900、800和400。

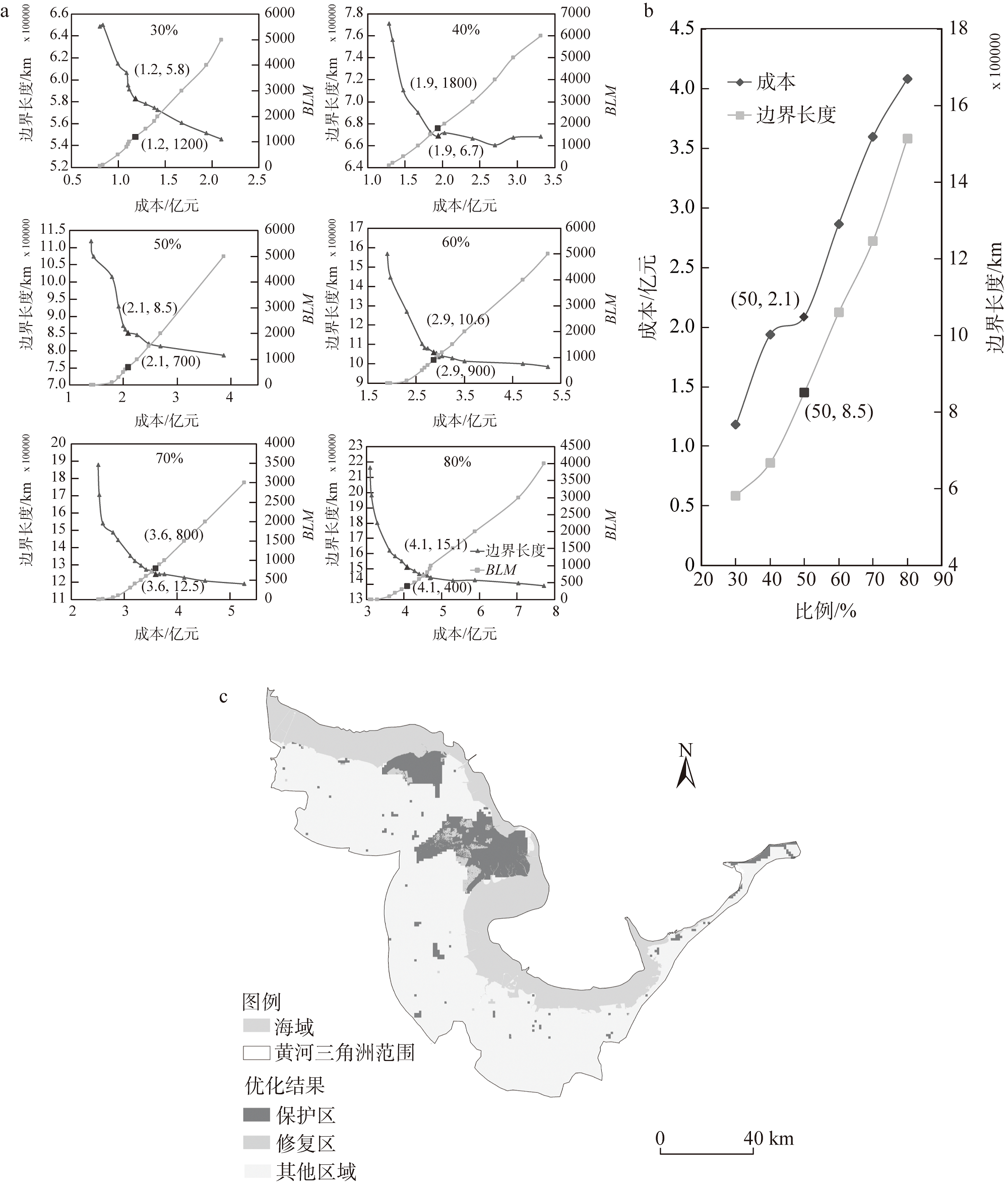

图6 不同保护—修复目标水平下(20%~80%)聚集度敏感性分析,保护—修复目标水平、成本和边界长度敏感性分析和最优目标水平下的保护—修复格局

Fig. 6 Sensitivity analysis of aggregation degree, conservation-restoration proportion, cost and boundary length under the conservation-restoration target level ranging from 20% to 80% and conservation-restoration pattern under optimal proportion

Full size|PPT slide

在各保护—修复目标水平下,最适BLM值对应的最优成本—边界长度组合的变化曲线如图6b。由图6b可知,随着保护—修复比例增加,成本和边界长度整体都呈现增长趋势,其中边界长度的增速较为稳定;而在40%~50%保护—修复目标水平期间,成本的增速变缓,由1.94亿元增长至2.09亿元;大于50%后成本快速增加至2.86亿元,而后分别是3.59亿元和4.08亿元,因此选择50%作为最适保护—修复目标水平。如图6c,最优保护—修复格局保护和修复的面积达1577.58 km2,应保护面积占89%。另外,在黄河三角洲国家级自然保护区内,应保护面积也占89%,这可能是由于保护区内湿地保护的成本低而生态系统服务高,同时表明本文研究成本代价和保护修复目标设计的合理性。

3 结论与讨论

3.1 结论

本文以黄河三角洲滨海湿地为例,将湿地保护与修复格局统一到湿地生态系统服务提升构架下,创新性地发展了一套一体化保护—修复格局构建及优化方法。根据研究结果得到以下结论:
(1)养殖和盐田是黄河三角洲占用自然湿地面积最大的围填海形式,且已在此开展了一些生态修复工程,本文将养殖和盐田作为潜在恢复区是具有修复可行性的。利用高斯模型拟合确定的黄河三角洲优势种盐地碱蓬的最适生态阈值高程区间为 [-0.6251, 2.4713]/m,潜在修复区的面积达1755.14 km2
(2)本文将碳存储前29%、生境质量前25%和水质净化前15%所在的生态系统服务高值核心区作为保护—修复优化的对象。碳储存和生境质量在黄河三角洲国家级自然保护区和黄河故道周边较高,水质净化功能在潜在修复区较高。
(3)保护和修复50%的生态系统服务核心区形成的一体化保护—修复格局是以最小的成本实现黄河三角洲生态系统服务最大化的最优格局,保护修复成本为2.09亿元,面积为1577.58 km2,应保护面积占比为89%。应保护区与国家级保护区高度重合,验证了本文设置的成本代价和保护修复对象及目标较为合理。在退养还滩、退盐还湿等滨海湿地修复工程区,土地利用类型单一,修复成本基本一致,其修复可行性主要取决于高程和潮沟水系格局,同时保护区内湿地保护的成本低而生态系统服务高。因此BLM权衡结果偏向于较高聚集度,同时围绕已有保护格局聚集。
(4)应用系统保护规划方法,考虑保护—修复潜在格局下典型生态系统服务的代表性、互补性以及连通性等,权衡生态功能发挥与保护现有湿地和修复潜在湿地的经济成本代价,从而确定一体化保护—修复格局及最优目标的方法体系可以推广。

3.2 各保护—修复目标水平下保护—修复策略的优先性

保护—修复的策略分为就地保护以及针对潜在修复区原利用方式的退养还滩修复和退盐还湿修复,在与现有保护区叠加后得到6类具体的保护—修复策略(图7)。从保护—修复策略的整体分布看,所有目标水平下的最优保护—修复区均围绕已有保护区聚集,30%~50%目标水平的零散斑块以自然湿地斑块为主,60%~80%则会包括一些分散分布的盐田和养殖池。

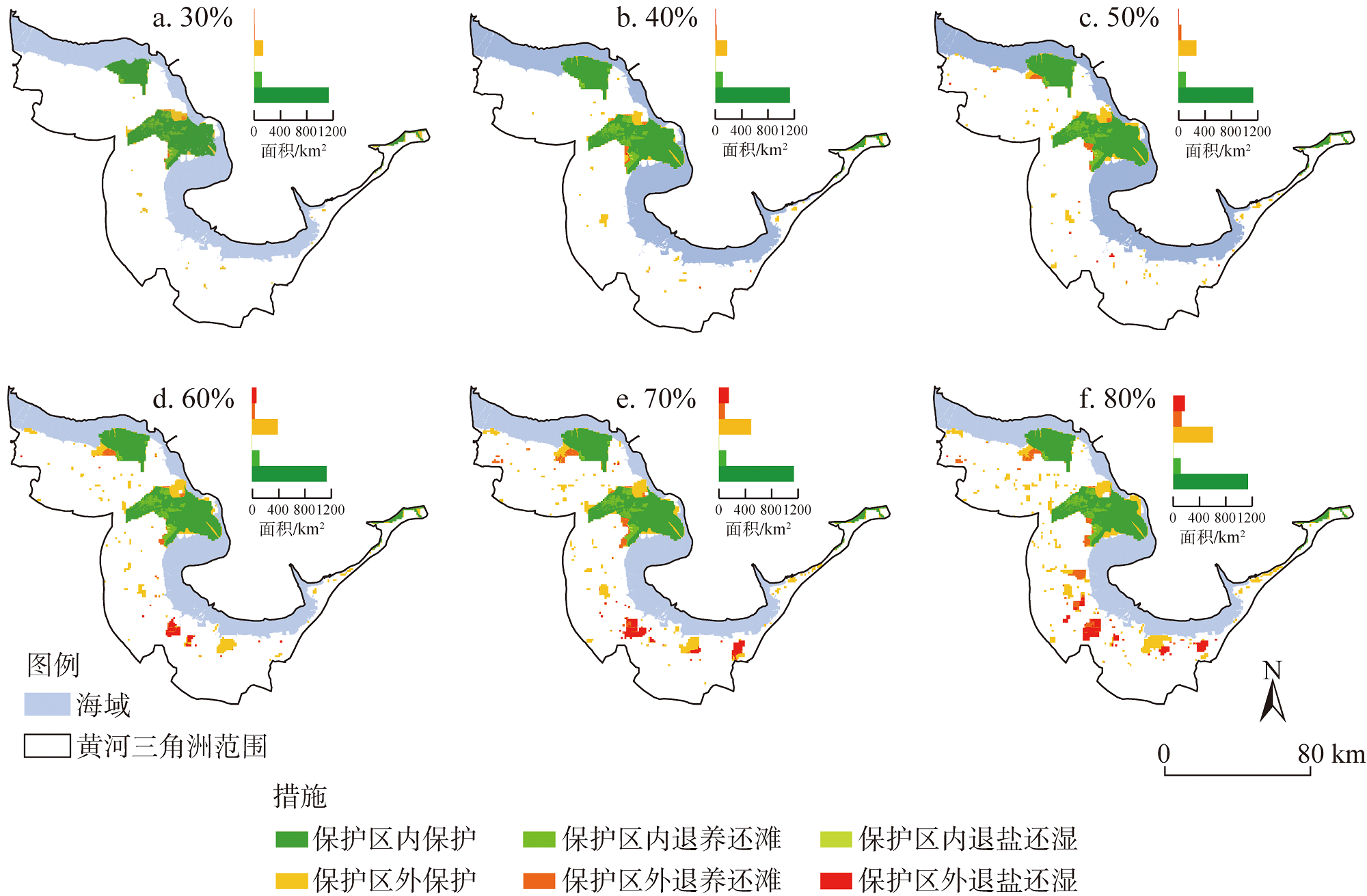

图7 黄河三角洲不同保护—修复目标水平下(30%~80%)实施策略

Fig. 7 The implementation strategies to integrate conservation and restoration patterns under different target levels (30%-80%) in the Yellow River Delta

Full size|PPT slide

随着保护—修复目标水平的提高,各保护—修复策略的优先性存在明显差异(图7)。保护区内的保护、退养还滩、退盐还湿的面积都基本不变,这说明目前已有保护区的保护作用较为有效,基于此,需要优先考虑将保护区内现存的养殖池和盐田撤出,实施保护区内的退养还滩和退盐还湿工程。对于保护区外,保护、退养还滩、退盐还湿都呈现明显的增加趋势。而保护面积始终大于退养还滩和退盐还湿的面积,因此保护区外的保护优先性大于退养还滩和退盐还湿。依据各保护—修复策略对应的面积确定保护区外各保护—修复策略的优先性:当目标水平≤50%时,保护>退养还滩>退盐还湿;当50%<目标水平<60%时,保护>退养还滩=退盐还湿;当目标水平≥60%时,保护>退盐还湿>退养还滩。
具体的保护—修复策略为:30%~80%的目标水平下均应首先保护现有保护区内的1130 km2的自然湿地。随后,均应将保护区外部周边尚未被保护的自然湿地作为未来的保护区,涉及的自然湿地包括东营市龙悦湖及其周边湿地、昌邑市虞河入海口东侧湿地、保护区北部油田中的退化湿地、烟台市寒亭区白浪河入海口东部湿地、黄河入海口南部防潮堤外未纳入保护区的部分湿地、滨州市沾化区徒骇河入海口东侧滨海湿地、烟台市莱州市的三山岛街道和金城镇的沿海区域等。而后,30%~70%的目标水平下应将保护区内仍然存在的约110 km2的养殖池作为退养还滩修复区。50%和60%时应修复一千二的西部滨海区域以及黄河口保护区正南部边界附近的43 km2的养殖池;还包括黄河口保护区内的少量盐田。70%和80%时应修复保护区外的约100 km2的养殖池,主要位于一千二的西部滨海区域,黄河口保护区正南部边界附近,以及潍坊市寒亭区老河口附近和东营市广饶县丁庄镇的小清河与支脉河之间;还包括黄河口保护区边界内的少量盐田和南部边界外的约160 km2左右的盐田,主要分布于潍坊市寒亭区的老河口附近、昌邑市潍河西侧和烟台市莱州市的北郊莱河东侧。

3.3 “一体化保护—修复”格局构建及优化方法的意义和适用性

“一体化保护—修复”格局构建及优化方法是对以往局限于小尺度、孤立的湿地修复格局的反思,也是将湿地修复提升到区域生态安全层面的理论探索与实践探索。在以生态系统服务提升为目标的保护—修复格局构建及优化过程中,两者格局不再彼此孤立,而是借助Marxan的“退火”优化算法实现内在格局优化整合,使区域滨海湿地生态系统服务得到整体性补偿和改善。通过不同保护—修复目标水平的优化格局与当前湿地保护区的叠加分析,可以确定游离于保护体系外的保护空缺;同时与湿地修复潜在区域相匹配,可以确定优先修复区域及其相应措施。该一体化保护—修复格局识别方法是对依据生态廊道理论识别和确定国土空间生态保护修复关键区域成果[47,48]的有效补充。总之,一体化保护—修复格局通过对保护、修复空间单元的保护效益—价值成本不断权衡,可实现整体优化,有助于科学划定生态“保护红线”和“修复绿线”[28]。在此基础上,前瞻性地保留滨海湿地应对气候变化的弹性空间[49],科学划定“应对气候变化的蓝线”,构筑红绿蓝“三线整合”的中国滨海湿地生态安全格局,是应对围垦开发和气候变化双重胁迫下更加全面、可持续的生态安全管理策略[28]。同时,滨海区域可采取“滚动”开发模式,在保障滨海湿地生态系统格局与功能完整性的同时,维持保护与利用间动态平衡[50]
本文仍存在部分不足,有待后续深入研究探讨:(1)仅选取黄河三角洲三类具有典型性及重要性的生态系统服务,在未来的研究中可以进一步扩展生态系统服务的类型,以充分体现多功能协同治理的理念。(2)研究设置的保护区内外湿地保护的机会成本为0,原因在于自然湿地在保护措施实施前后均能够提供游憩、文化服务的功能,这类功能并未被放弃;也应看到由于保护措施的实施,因生态优先考虑会使得滨海湿地丧失一部分游憩、文化服务功能产生的经济价值。因此,在今后的研究中,这部分价值差也应该考虑在内。此外,随着山东省围填海整改的深入,退盐、退渔和退耕的补偿成本也应逐渐考虑在内。(3)黄河三角洲具有典型的潮沟地貌形态和丰富的湿地植被类型,水文连通性对植被分布和生态保护—修复措施能否成功实施影响较大。因此,后续研究将进一步丰富植被群落潜在修复区识别,如淡水沼泽及混生群落等,并充分考虑水文连通性对一体化保护—修复工程实施的影响。
