干旱区绿洲城镇扩张对耕地空间影响及预测——以河西走廊区域为例

doi:10.31497/zrzyxb.20210415

自然资源学报 ›› 2021, Vol. 36 ›› Issue (4): 1008-1020.doi: 10.31497/zrzyxb.20210415

干旱区绿洲城镇扩张对耕地空间影响及预测——以河西走廊区域为例

孙钦珂¹^,²(), 周亮¹^,²^,³(), 唐相龙⁴, 孙东琪³, 党雪薇¹^,²

1.兰州交通大学测绘与地理信息学院,兰州 730070
2.地理国情监测技术应用国家地方联合工程研究中心,兰州 730070
3.中国科学院地理科学与资源研究所,北京 100101
4.兰州交通大学建筑与城市规划学院,兰州 730070

收稿日期:2019-11-08 修回日期:2020-02-19 出版日期:2021-04-28 发布日期:2021-06-28
通讯作者: 周亮（1983- ）,男,甘肃天水人,博士,教授,研究方向为城市可持续发展。E-mail: zhougeo@126.com
作者简介:孙钦珂（1995- ）,男,山东济宁人,硕士,研究方向为城市遥感。E-mail: qksun2018@163.com
基金资助:
国家自然科学基金项目(41701173);国家自然科学基金项目(41961027);教育部人文社会科学研究青年基金项目(17YJCZH268)

Spatial influence and prediction of oasis urban expansion on cultivated land in arid areas: A case study of the Hexi Corridor

SUN Qin-ke¹^,²(), ZHOU Liang¹^,²^,³(), TANG Xiang-long⁴, SUN Dong-qi³, DANG Xue-wei¹^,²

1. Faculty of Geomatics, Lanzhou Jiaotong University, Lanzhou 730070, China
2. National-Local Joint Engineering Research Center of Technologies and Applications for National Geographic State Monitoring, Lanzhou 730070, China
3. Institute of Geographic Sciences and Natural Resources Research, CAS, Beijing 100101, China
4. School of Architecture and Urban Planning, Lanzhou Jiaotong University, Lanzhou 730070, China

Received:2019-11-08 Revised:2020-02-19 Online:2021-04-28 Published:2021-06-28

摘要/Abstract

摘要：

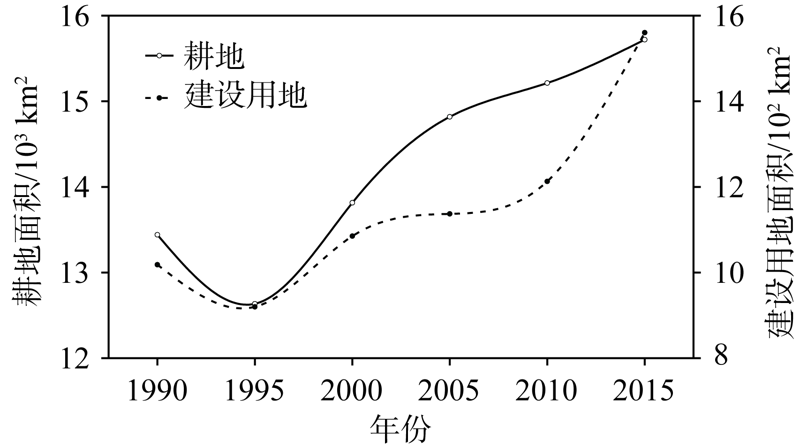

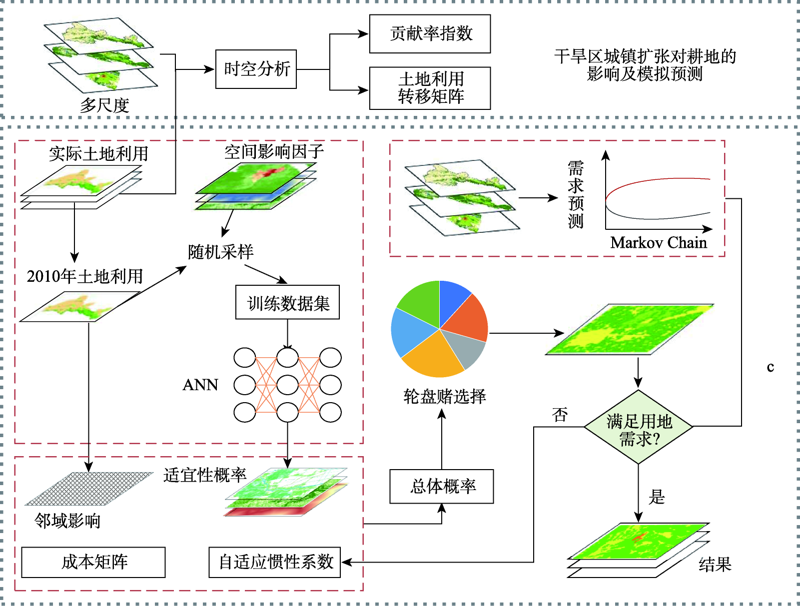

绿洲城镇是干旱地区人类活动最剧烈、人口集聚度最高、“人—地”关系矛盾最为突出的生态环境脆弱区。受全球气候变化影响及西部大开发战略推动,区域城镇与绿洲耕地之间的动态变化及利弊权衡成为当前关注的热点。基于1990—2015年多时相遥感影像数据,以典型绿洲城镇河西走廊为研究区,引入Markov和ANN-CA模型对河西走廊城镇用地与耕地的时空动态转换特征与规律展开探索,揭示了城镇扩张对耕地的影响过程与机制。研究结果表明：（1）河西走廊土地总体以未利用土地和草地为主,城镇用地与耕地仅占区域总面积的0.63%、6.35%,且城镇与耕地面积共同经历了先减少后增加的“V”型变化趋势。（2）1990—2015年河西走廊城镇面积扩张了1.53倍,其中15.67%的城镇扩张用地来自耕地占用,其他主要来源于草地,沙漠和戈壁等未利用土地。另外,区域内5个地市城镇扩张的耕地占用差异较大。（3）结合Markov与ANN-CA模型的模拟和预测结果表明,2015—2030年河西走廊79.77%的城镇扩张用地将来源于周边耕地,且城镇空间扩张方式以外延扩展为主,未来耕地被城镇侵占压力较大。研究结果将为干旱区相似区域空间规划和耕地保护提供决策支持。

关键词: 城镇扩张, 耕地流失, CA, 空间规划, 可持续发展

Abstract:

Oasis city and town is a fragile ecological environment area with the most densely population, the most intense human activities and the most prominent contradiction between human and land in arid regions. Affected by global climate change and China's western development strategy, the dynamic changes between regional towns and oasis cultivated land and the trade-offs between them have become the hotspots of current concern. Based on the multi-temporal remote sensing land use data from 1990 to 2015, this paper takes the oasis cities and towns of the Hexi Corridor, a typical arid area as the research region, introduces Markov and ANN-CA models to deeply explore the land change process, quantifies the temporal and spatial dynamic transformation of urban land and cultivated land, and reveals the process and mechanism of urban expansion from cultivated land. The results show that: (1) The land types in Hexi are mainly unused land and grassland, and the urban and cultivated land accounted for 0.63% and 6.35%, respectively. The urban land and cultivated land areas showed a V-shaped change trend of first decrease and then increase. (2) From 1990 to 2015, the urban area of the expanded by 1.53 times, of which 15.67% was converted from cultivated land, and the others were mainly from unused land such as grasslands, deserts, and Gobi. The proportions of cultivated land occupied by urban expansion in five cities were quite different. (3) The simulation and prediction results combined with the Markov and ANN-CA models show that 79.77% of urban expansion land will come from cultivated land in 2015-2030, and the mode of urban spatial expansion is mainly extended. In addition, the pressure on cultivated land occupied by urban expansion will be greater in the future. The results will provide decision making support for future urban development planning and cultivated land protection.

Key words: urban expansion, cultivated land loss, cellular automata, spatial planning, sustainable development

孙钦珂, 周亮, 唐相龙, 孙东琪, 党雪薇. 干旱区绿洲城镇扩张对耕地空间影响及预测——以河西走廊区域为例[J]. 自然资源学报, 2021, 36(4): 1008-1020.

SUN Qin-ke, ZHOU Liang, TANG Xiang-long, SUN Dong-qi, DANG Xue-wei. Spatial influence and prediction of oasis urban expansion on cultivated land in arid areas: A case study of the Hexi Corridor[J]. JOURNAL OF NATURAL RESOURCES, 2021, 36(4): 1008-1020.

图/表 7

图1

表1

表2

图2

表3

图3

图4

参考文献 35

[1]	SETO K C, RAMANKUTTY N. Hidden linkages between urbanization and food systems. Science, 2016,352(6288):943-945. pmid: 27199419
[2]	[ ZHANG Z X, WANG X, WEN Q K, et al. Research progress of remote sensing application in land resources. Journal of Remote Sensing, 2016,20(5):1243-1258.]
[3]	DENG X, HUANG J, ROZELLE S, et al. Impact of urbanization on cultivated land changes in China. Land Use Policy, 2015,45:1-7.
[4]	[ LONG H L, QU Y, TU S S, et al. Land use transitions under urbanization and their environmental effects in the farming areas of China: Research progress and prospect. Advances in Earth Science, 2018,33(5):455-463.]
[5]	[ ZHAO X L, ZHANG Z X, WANG X, et al. Analysis of Chinese cultivated land's spatial-temporal changes and causes in recent 30 years. Transactions of the CSAE, 2014,30(3):1-11.]
[6]	RAMASWAMI A, RUSSELL A G, CULLIGAN P J, et al. Meta-principles for developing smart, sustainable and healthy cities. Science, 2016,352(6288):940-943. doi: 10.1126/science.aaf7160 pmid: 27199418
[7]	[ ZHAO X Y, LIU J H, WANG R, et al. Spatial-temporal coupling relationship between chemical fertilizer application and grain yield in China at city scale. Journal of Natural Resources, 2019,34(7):1471-1482.]
[8]	[ WANG D, SUN M Z, LIN X Q, et al. Analysis on characteristics and evaluation of agricultural development system in Beijing directed by sustainable development. Journal of University of Chinese Academy of Sciences, 2014,31(6):745-752.]
[9]	DU J, THILL J C, PEISER R B. Land pricing and its impact on land use efficiency in post-land-reform China: A case study of Beijing. Cities, 2016,50:68-74. doi: 10.1016/j.cities.2015.08.014
[10]	[ HAO Q, DENG L, FENG Z M. Carrying capacity reconsidered in spatial planning: Concepts, methods and applications. Journal of Natural Resources, 2019,34(10):2073-2086.]
[11]	[ AN C B, WANG W, DUAN F T, et al. Environmental changes and cultural exchange between East and West along the Silk Road in arid Centra. Acta Geographica Sinica, 2017,72(5):875-891.]
[12]	[ ZHOU L, ZHU Y R, SUN D Q. Spatial differentiation characteristics and oasis breed degree of urban and rural residents in Hexi Corridor. Arid Land Geography, 2020,43(1):227-236.]
[13]	[ PAN J H, ZHANG J H, HU Y X. Spatial-temporal pattern of per capital grain possession and its driving forces in Gansu province. Journal of Natural Resources, 2016,31(1):124-134.]
[14]	[ ZHANG X L, DU H R. New type of urbanization in arid zone of China: Regional characteristics and strategical choice of sustainable development path. Bulletin of Chinese Academy of Sciences, 2013, (1):46-53.]
[15]	[ ZHOU L, CHE L, ZHOU C H. Spatio-temporal evolution and influencing factors of urban green development efficiency in China. Acta Geographica Sinica, 2019,74(10):2027-2044.]
[16]	LIU Y, SONG W, DENG X. Understanding the spatiotemporal variation of urban land expansion in oasis cities by integrating remote sensing and multi-dimensional DPSIR-based indicators. Ecological Indicators, 2019,96:23-37.
[17]	[ DENG X Z. Path of sustainable urbanization in Western China. China Population, Resources and Environment, 2013,23(10):24-30.]
[18]	[ ZHU H Y, LI Y. An empirical analysis of the causes of farmland expansion in Northwest China. Progress in Geography, 2011,30(5):615-620.]
[19]	HAO L, SU X, SINGH V P, et al. Suitable oasis and cultivated land scales in arid regions based on ecological health. Ecological Indicators, 2019,102:33-42.
[20]	[ WU W J, SHI P J, HU W. Research on the coordination between urbanization and cultivated land change in an oasis city of Ganzhou. Progress in Geography, 2011,30(5):621-626.]
[21]	TANG J, WANG L, YAO Z. Spatio-temporal urban landscape change analysis using the Markov chain model and a modified genetic algorithm. International Journal of Remote Sensing, 2007,28(15):3255-3271.
[22]	[ HE C Y, SHI P J, CHEN J, et al. Land use scenario model based on system dynamics model and cellular automata model. Science in China, Series. D, 2005,35(5):464-473.]
[23]	[ LI X. Geographic Simulation System: Cellular Automata and Multi-Agent, Beijing: Science Press, 2007.]
[24]	[ XIAO L, TIAN G J, QIAO Z. An Agent-based approach for urban encroachment on cropland dynamic model and simulation. Journal of Natural Resources, 2014,29(3):516-527.]
[25]	XU T, GAO J, COCO G. Simulation of urban expansion via integrating artificial neural network with Markov chain-cellular automata. International Journal of Geographical Information Science, 2019,33(10):1960-1983.
[26]	LIU X, LIANG X, LI X, et al. A future land use simulation model (FLUS) for simulating multiple land use scenarios by coupling human and natural effects. Landscape and Urban Planning, 2017,168:94-116.
[27]	[ LIU J Y, KUANG W H, ZHANG Z X, et al. Spatiotemporal characteristics, patterns and causes of land use changes in China since the late 1980s. Acta Geographica Sinica, 2014,69(1):3-13.]
[28]	[ XU X L, LIU J Y, ZHANG Z X, et al. China's 5-year interval terrestrial ecosystem spatial distribution data set (1990-2010) content and research and development. Global Change Research Data Publishing & Repository, 2017,1(1):52-59.]
[29]	[ XU X L. China population spatial distribution kilometer grid dataset. Chinese Academy of Sciences Resource and Environmental Science Data Center Registration and Publishing System, http://www.resdc.cn/DOI 2017, Doi: 10.12078/2017121101.]
[30]	[ XU X L. China population spatial distribution kilometer grid dataset. Chinese Academy of Sciences Resource and Environmental Science Data Center Registration and Publishing System, http://www.resdc.cn/DOI 2017, Doi: 10.12078/2017121102.]
[31]	[ LI J, DONG S C, LI Y, et al. Driving force analysis and scenario simulation of urban land expansion in Ningxia-Inner Mongolia area along the Yellow River. Journal of Natural Resources, 2015,30(9):1472-1485.]
[32]	ZHOU L, DANG X, SUN Q, et al. Multi-scenario simulation of urban land change in Shanghai by random forest and CA-Markov model. Sustainable Cities and Society, 2020,55:1-10.
[33]	[ ZHOU C H, OU Y, MA T, et al. Theoretical perspectives of CA-based geographical system modeling. Progress in Geography. 2009,28(6):833-838.]
[34]	[ YANG J, ZHANG Y H, GE Q S, et al. Irregular neighborhood cellular automata land-use simulation based on the GA-MCE algorithm. Geographical Research, 2016,35(7):1288-1300.]
[35]	LIANG X, LIU X, LI X, et al. Delineating multi-scenario urban growth boundaries with a CA-based FLUS model and morphological method. Landscape and Urban Planning, 2018,177:47-63.

区域名称	耕地	林地	草地	水域	建设用地	未利用土地
酒泉市	2.05	0.43	16.51	0.93	0.26	79.82
嘉峪关市	9.15	0.73	25.90	2.86	9.74	51.62
金昌市	17.72	2.89	27.66	0.74	2.68	48.31
张掖市	11.59	10.24	38.07	2.28	1.09	36.73
武威市	19.64	7.67	26.17	0.31	1.19	45.02
河西走廊	6.35	2.98	21.52	1.06	0.63	67.44

等级	高程/m	耕地/%	林地/%	草地/%	水域/%	建设用地/%	未利用土地/%
1	<1500	8.59	0.92	11.78	0.72	0.68	77.31
2	1500~2000	6.44	0.27	14.13	0.41	1.00	77.74
3	2000~2900	10.85	3.58	35.77	1.04	0.80	47.96
4	2900~3500	0.72	16.63	34.05	0.39	0.04	48.18
5	3500~4000	0	5.56	40.44	0.87	0.01	53.12
6	>4000	0	0.47	24.46	6.57	0	68.49

区域名称	CR
区域名称	1990—2000年	2000—2005年	2005—2010年	2010—2015年	1990—2015年
酒泉市	26.39	24.36	-14.75	3.27	-2.93
嘉峪关市	-0.93	0.57	-18.83	0.00	-2.11
金昌市	-3.59	3.73	18.00	4.95	-0.09
张掖市	72.36	31.40	10.15	19.66	29.09
武威市	98.00	71.78	84.33	37.80	52.87
河西走廊	64.77	22.53	-7.12	15.02	15.67
