黄土高原生态恢复程度及恢复潜力评估

牛丽楠, 邵全琴, 宁佳, 杨雪清, 刘树超, 刘国波, 张雄一, 黄海波

自然资源学报 ›› 2023, Vol. 38 ›› Issue (3) : 779-794.

PDF(9302 KB)
EN中文
PDF(9302 KB)
自然资源学报 ›› 2023, Vol. 38 ›› Issue (3) : 779-794. DOI: 10.31497/zrzyxb.20230314
其他研究论文

黄土高原生态恢复程度及恢复潜力评估

作者信息 +

Evaluation on the degree and potential of ecological restoration in Loess Plateau

Author information +
文章历史 +

摘要

黄土高原是世界水土流失最严重的地区之一，2000年以来黄土高原重点实施了退耕还林还草等一系列生态工程，促进了生态恢复。为全面评估黄土高原地区生态恢复现状、生态恢复程度及恢复潜力，选取生态质量和生态系统服务两大类指标，采用模型模拟计算方法，对黄土高原2000—2019年生态恢复进行综合分析和评估。结果表明：（1）生态质量有所恢复转好，植被覆盖度和植被净初级生产力呈增加趋势。比较前后十年变化，植被覆盖度持续转好的面积占比为39.90%，植被净初级生产力持续转好的面积占比为82.71%。（2）生态系统服务有所恢复提高。水源涵养服务持续转好的面积占比为15.46%，土壤保持服务先转好（稳定）后稳定（转好）的面积占比为18.88%，风蚀区防风固沙服务持续转好面积占比为6.30%；水源涵养和土壤保持服务提高区域集中在农牧交错带地区，防风固沙服务提高区域集中在沙地和沙漠区。（3）综合生态恢复程度高的地区占全区面积的11.08%，主要分布在黄土丘陵沟壑区，仅少数无恢复地区占全区面积的3.51%，集中分布于沙地和沙漠区西北部地区。（4）植被覆盖恢复潜力高值区主要位于黄土塬沟壑区西部，低值区主要位于黄土丘陵沟壑区和河谷平原的部分地区，植被净初级生产力恢复潜力整体偏低，潜力较大区域主要位于黄土丘陵沟壑区。

Abstract

The Loess Plateau is the most fragile ecological environment and one of the most serious soil erosion areas in the world. China has implemented the Grain for Green Project and a series of ecological engineering in the Loess Plateau since 2000. They play a good role for ecosystem restoration. In order to assess the present situation, the ecological restoration degree and the ecological restoration potential in the Loess Plateau over the past 20 years, we selected ecological quality and ecosystem services to comprehensively analyze and evaluate the degree and potential of ecological restoration in this region from 2000 to 2019 by using ground and remote sensing monitoring data and model simulation. The results showed that: (1) The ecological quality was improved: Vegetation coverage and NPP showed an increasing trend. Compared with the changes from 2000 to 2009 and from 2010 to 2019, the proportion of the area with vegetation coverage and NPP continuously improved were 39.90% and 82.71%, respectively. (2) The ecosystem services improved: The areal proportion of water conservation service with continuous improvement was 15.46%, the areal proportion of soil conservation services first improved and then stabilized or first stabilized and then improved was 18.88%, the areal proportion of wind prevention and sand fixation service with continuous improvement was 6.30%. Water and soil conservation services were improved mainly in the farming-pastoral transitional zone of the gully region, while windbreak and sand-fixing service was improved mainly in the sandy and desert areas. (3) The areas with high degree of comprehensive ecological restoration accounted for 11.08%, which was mainly located in the gully region. Only a few non-restoration areas were mainly distributed in the northwest of the sandy land and desert region, accounting for 3.51%. (4) The restoration potential of vegetation coverage was 13.10%, the high value region was mainly located in the west of the gully region, and the low value region was mainly found in the southeast of the gully region and parts of the valley plain. The restoration potential of vegetation NPP is low on the whole, and the regions with greater potential are mainly located in the loess hilly-gully region.

关键词

生态质量 / 生态系统服务 / 生态恢复程度 / 生态恢复潜力

Key words

ecological quality / ecosystem services / ecological restoration degree / ecological restoration potential

引用本文

EndNote

Ris (Procite)

Bibtex

导出引用
牛丽楠, 邵全琴, 宁佳, 杨雪清, 刘树超, 刘国波, 张雄一, 黄海波. 黄土高原生态恢复程度及恢复潜力评估[J]. 自然资源学报, 2023, 38(3): 779-794 https://doi.org/10.31497/zrzyxb.20230314
NIU Li-nan, SHAO Quan-qin, NING Jia, YANG Xue-qing, LIU Shu-chao, LIU Guo-bo, ZHANG Xiong-yi, HUANG Hai-bo. Evaluation on the degree and potential of ecological restoration in Loess Plateau[J]. JOURNAL OF NATURAL RESOURCES, 2023, 38(3): 779-794 https://doi.org/10.31497/zrzyxb.20230314
目前人类数量激增与工农业迅速发展，生态系统受到干扰导致退化。生态退化成为全球环境面临的重大问题，生态恢复研究逐渐成为世界学者的研究热点[1]。生态恢复定义可以阐述为在生态系统层次上通过一定的生物技术和工程技术修复、改良、更新、恢复、重建受损或退化的生态系统，使其结构和功能恢复到一定的或原有的或更高水平的过程[2]，其中恢复潜力用来衡量生境与参考目标的距离[3,4]。在全球环境日益恶化的情况下，人们逐步认识到生态恢复工作的重要性，不同学者分别从生态恢复目标、内容、过程等方面进行研究，如何进行生态综合治理、修复，恢复已退化生态系统成为重要研究课题之一[5]。
国际上，2000年联合国发起了千年生态系统评估（Millennium Ecosystem Assessment，MA）[6]，首次提出了生态系统评估框架体系与指标体系，评估了生态系统服务变化，提出了遏制生态系统退化的策略；美国农业部采用了工程区内外对比、工程实施前后对比等方法，对生态工程的生态恢复效果进行了评价[7]；国际林业研究中心运用了BACI方法，评估了15个国家REDD+（在发展中国家通过减少砍伐森林和减缓森林退化而降低温室气体排放）战略的森林保护项目实施效果[8]；国际自然保护联盟通过了基于自然的解决方案（NbS），加强生态保护和可持续发展目标之间的一致性，建立了扭转生态退化趋势的有效框架[9]。中国是世界上生态系统退化最严重的国家之一，也是较早开展生态恢复工作的国家之一[10]。20世纪50年代以来，中国已经批准和实施了一大批保护与生态恢复工程，1978年由国务院批准启动大型防护林体系建设工程，2000年开始实施天然林保护工程一期、京津风沙源治理工程一期、退耕还林工程、岩溶地区石漠化综合治理工程等。对于工程实施治理之后的生态系统恢复程度评估，自21世纪80年代，中国出现了纯定性评价研究，之后陆续引入新的定性或定量评价指标。目前对生态系统恢复程度评估已经进行了大量的研究工作，研究内容主要涵盖植被恢复及服务功能等方面，涉及区域包括流域、生态脆弱区、生态工程区等。高江波等[11]选择物种多样性、群落生物量以及群落覆盖度为指标，对青藏铁路穿越区进行生态系统恢复力评价；张文辉等[12]对黄土高原地区植被恢复和潜力进行了系统分析，提出了植被恢复的目标和策略，但是对于生态系统恢复及潜力的研究仅仅是进行了定性描述，缺少定量评价；孙泽兴等[13]以陕西省为研究区，基于空间遥感数据和生态模型模拟，从生态系统结构、质量和服务三个方面综合评估2000—2015年生态恢复效益，但对恢复潜力未做定量评估；吕振涛等[14]尝试在蒙古国依据相似生境原则，构建了植被恢复潜力计算模式，计算得到蒙古国植被恢复潜力值。国内外许多学者尝试研究生态系统恢复潜力及其定量评估方法，但目前多为经验性指标的定性评估，定量测度相对较少。
黄土高原地区地形破碎、土质疏松、暴雨集中，植被缺乏，生态环境脆弱，水土流失严重，是水土保持和生态修复建设的重点区域，是退耕还林工程的核心区域和中国生态恢复成效最显著的区域[15]，同时黄土高原是中国西部大开发和区域经济社会发展的重要地区，具有承东启西的作用，因此中国一直高度重视黄土高原地区的生态治理工作。20世纪50—60年代，水利部和中国科学院等多家单位联合对黄土高原水土流失情况进行考察，提出治理工作的方向和措施；20世纪60—70年代，黄土高原修建大量淤地坝工程，80年代开展小流域综合治理工作；自2000年以来，开始大规模生态工程建设实施工作，包括退耕还林还草工程的大规模实施，三北防护林体系建设、防沙治沙、天然林资源保护等一系生态建设工程，植被覆盖度得到增加，生态系统得到了有效恢复。但目前仍存在资源开发与生态保护之间矛盾日益加剧的问题[16]，因此对生态工程大规模实施后的黄土高原地区生态系统恢复程度进行定量评估具有重大现实意义，可以为区域综合治理提供科学依据，维护国家生态安全。本文选取生态质量、生态系统服务为主要生态恢复指标，基于地面数据、气温、降水、遥感影像等大量数据为基础，利用修正土壤流失方程（RUSLE）、修正土壤风蚀方程（RWEQ）等模型方法和统计分析方法，对黄土高原近20年生态恢复现状、恢复程度和恢复潜力进行了定量评估，旨在为黄土高原后期生态工程建设方向提供科学依据。

1 研究方法与数据来源

1.1 研究区概况

黄土高原位于黄河中游地区，介于100°54′~114°33′E、33°43′~41°16′N之间，总面积约64.87万km2，横跨内蒙古、青海、宁夏、甘肃、陕西、河南和山西7省区341个县市。地势西北高东南低，主要地貌类型有丘陵、高塬、阶地、平原、土石山地等；气候属大陆性季风气候，位于半湿润区向半干旱区过渡地带，年均温3.6~14.3 ℃，年均降雨量150~750 mm，降雨主要集中在夏季7-9月；大部分为黄土覆盖，土质疏松，全区植被稀疏。因地貌、气候、土壤、植被等特殊性，黄土高原是世界上生态环境最脆弱和水土流失最严重的地区之一，高度聚集的人口和强烈的人类活动使得该地区生态环境面临沉重压力。本文采用国家发展和改革委员会发布的黄土高原综合治理分区，以土壤侵蚀与泥沙类型分布、地貌特点、林业生态建设分区等研究成果为依据，保证区域内自然条件、自然资源组合特征的相对一致性和综合治理措施与途径的相对一致性，将黄土高原划分为6个综合治理区，即黄土塬沟壑区、黄土丘陵沟壑区、土石山区、河谷平原区、沙地和沙漠区、农灌区[17]（图1）。

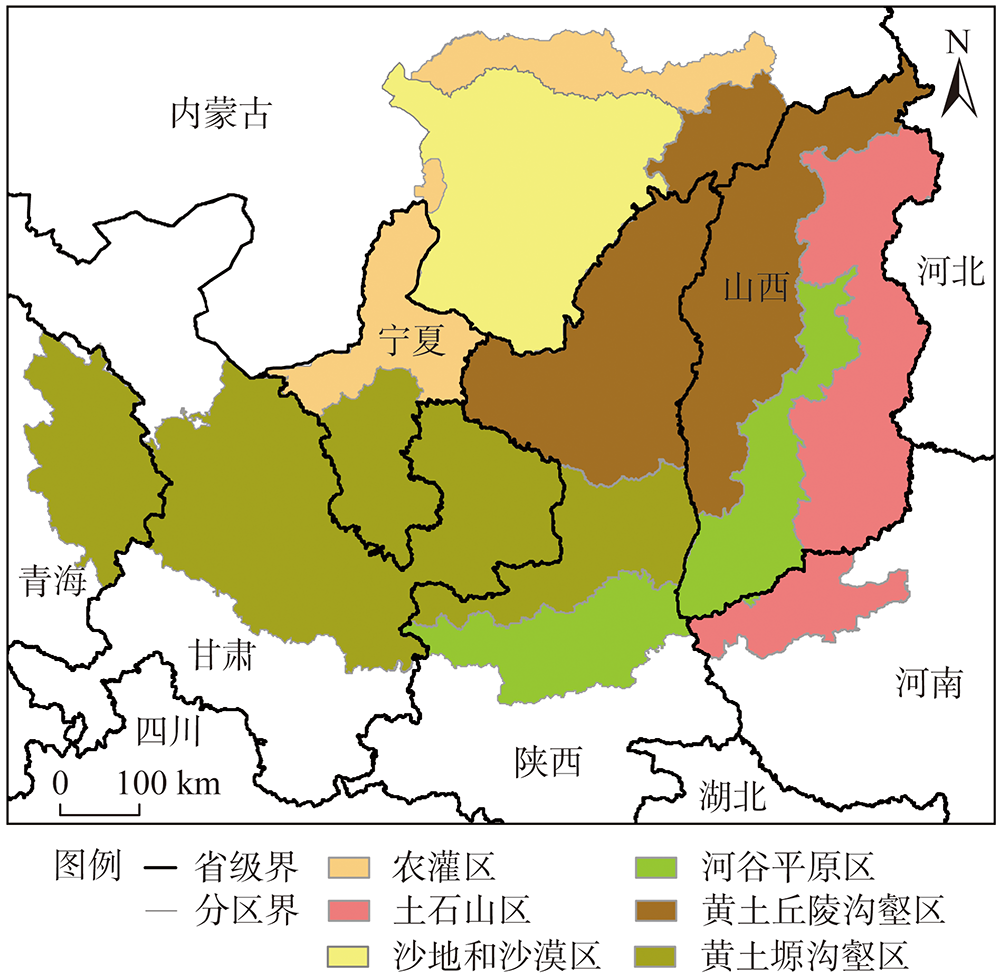

图1 黄土高原治理分区

Fig. 1 Governance partition of Loess Plateau

Full size|PPT slide

1.2 数据来源与处理

植被数据主要为归一化植被指数（NDVI）栅格数据，来源于MODIS-NDVI，时间分辨率16天，空间分辨率为1 km；植被净初级生产力（NPP）数据来源于MODIS产品，空间分辨率为500 m，经重采样处理为1 km空间分辨率；气象数据来源于中国气象数据共享网，包括温度、降雨量数据等，空间分辨率处理为1 km；土壤属性数据来源于中国科学院资源环境数据中心网站，1∶100万土壤数据库；地面数字高程模型数据（DEM）来源于地理空间数据云SRTMDEM，空间分辨率为90 m；自然保护地边界数据，采用由中国林科院资信所在国家地球系统科学数据中心共享服务平台（http://www.geodata.cn/index.html）共享的2013—2016年全国自然保护区空间分布数据集。为统一多源数据的空间分辨率，以所有数据中最低空间分辨率1 km作为基本分析单元。

1.3 研究方法

1.3.1 生态质量

（1）植被覆盖度数据获取方法
植被覆盖度FVC由主要利用遥感产品NDVI通过像元二分法计算[18]得到，公式如下：
FVC=(NDVI-NDVImin)(NDVImax-NDVImin)
（1）
式中： NDVImax取95%处的NDVI值作为纯植被像元NDVI值，高于该值用最大值替代； NDVImin取5%处的NDVI值作为裸土像元NDVI值，低于该值用最小值替代，最终生成2000—2019年1 km分辨率的植被覆盖度数据。
（2）植被净初级生产力数据获取方法
植被净初级生产力（NPP）数据来源于MODIS的MOD17A3HGF产品，采用MRT等软件对该产品进行了子集提取、格式转换、投影变换、图像镶嵌等处理，得到中国区域的MODIS-NPP镶嵌数据，根据缩放因子进行栅格代数操作，重采样最终生成2000—2019年1 km分辨率的NPP数据。

1.3.2 生态系统服务

生态系统服务是一项非常复杂的评估过程，可分为供给服务、调节服务和文化服务等类型[19]，本文主要选取了对黄土高原生态环境恢复变化响应最直接的三项基础生态系统调节服务，水源涵养、土壤保持和防风固沙，在此暂不考虑其他服务类型。
（1）水源涵养服务评估方法
水源涵养量估算采用水量平衡法计算，本文综合运用了以水量平衡法为基本原理的InVEST模型[20,21]和《生态红线划定指南》中的方法。根据《生态红线划定指南》，将时间尺度为月份的降水、蒸散量和径流数据，合并为季度和年份数据，并把年份降水、蒸散量和径流数据代入InVEST模型中，公式如下：
Qwr=P-ET-R=1-ETP×P-u×P
（2）
ETP=1+PETP-[1+(PETP)ω]1/ω
（3）
PET=KcET0
（4）
ω=ZAWCP+1.25
（5）
式中： Qwr为水源涵养量（mm）； P为降水量（mm）； R为地表径流量（mm）； ET为实际蒸散量（mm）；PET为潜在蒸散量（mm）；ET0为参考作物蒸散量（mm），采用Hargreaves公式[22]计算得到参考作物蒸散量；Kc为蒸散系数，采用联合国粮农组织蒸散系数参考值；AWC为植被有效可利用水含量（mm），利用土壤质地计算得到[23]；Z为Zhang系数，是表征降水季节性特征的一个常数，其值在1~10之间，降水主要集中在冬季时，其值接近于10，降水主要集中在夏季或季节分布较均匀时，其值接近于1，取默认值； ω代表由自然气候和土壤性质决定的非物理经验参数；u为径流系数，采用美国农业部土壤保持局开发的SCS水文模型[24]，最终生成2000—2019年1 km分辨率的水源涵养服务数据。
（2）土壤保持服务评估方法
生态系统土壤保持服务通过土壤水蚀模数来衡量，土壤水蚀模数采用修正通用土壤流失方程（RUSLE）计算得到[25]，公式如下：
A=R×K×LS×C×P
（6）
式中：A为土壤水蚀模数 [t/(hm2·a)]；R为降雨侵蚀力因子 [MJ·mm/(hm2·h·a)]，基于日降雨量的半月降雨侵蚀力模型估算[26]；K为土壤可蚀性因子 [t·hm·h/(hm2·MJ·mm)]，采用EPIC模型[27]计算得到；LS为坡长坡度因子，采用刘宝元等[28]的研究方法计算；C为植被覆盖因子，该因子采用蔡崇法等[29]的方法计算得到；P为水土保持措施因子。LS、C、P无量纲，最终生成2000—2019年1 km分辨率的土壤保持服务数据。
（3）防风固沙服务评估方法
黄土高原地区存在部分风蚀地区，生态系统防风固沙服务通过土壤风蚀模数来衡量，土壤风蚀模数采用修正土壤风蚀方程（RWEQ）计算，公式如下：
SL=Qxx
（7）
Qx=Qmax1-exs2
（8）
Qmax=109.8×(WF×EF×SCF×K'×COG)
（9）
s=150.71×(WF×EF×SCF×K'×COG)-0.3711
（10）
式中：SL为土壤风蚀模数 [kg/(m2·a)]；x为地块长度（m）；Qx为地块长度x处的沙通量（kg/m）；Qmax为风力的最大输沙能力（kg/m）；s为关键地块长度（m）；WF为气象因子，具体数据处理及计算参考巩国丽等[30]研究成果；EF为土壤可蚀性因子；SCF为土壤结皮因子，两因子采用Fryear等[31]方法计算；K′为土壤糙度因子，采用Saleh[32]方法计算；COG为植被因子，包括平铺、直立作物残留物和植被冠层，最终生成2000—2019年1 km分辨率的防风固沙服务数据。

1.3.3 生态恢复程度评估方法

本文利用Sen趋势法和Mann-Kendall显著性检验方法，分别计算生态系统质量（植被覆盖度、植被净初级生产力）和生态系统服务（水源涵养、土壤保持、防风固沙）变化斜率或趋势，并进行显著性检验，具体计算方法参考相关文献[33,34]。通过比较2000—2009年和2010—2019年两时段的变化趋势情况，判定总体恢复变化趋势。通过叠加2000—2019年5种生态指标变化趋势情况，判定综合生态系统恢复程度。

1.3.4 生态恢复潜力评估方法

根据恢复潜力相关定义，以相似生境原则定义参考生境，通过衡量生境与参考目标之间的距离来计算恢复潜力[3,4]，邵全琴等[35]定义地带性顶极生态系统本底为与评估区地处同一生态地理区的相同生态系统自然保护区内所具有的生态状态，本文利用邵全琴等[35]研究的生态恢复潜力评估方法，以地带性顶级生态系统下的本底数据为参考目标，利用气温和降水建立拟合方程，具体方法如下：
（1）地带性顶极生态系统下本底数据获取
提取在生态地理分区叠加国家和省级自然保护区内的森林、草地和荒漠生态系统中的生态质量数据，分别与年均温度和年降水量建立拟合方程。
Fvij=a+b×tempij+c×preij
（11）
式中：Fvij为第i生态地理分区自然保护区内第j种生态系统类型平均植被覆盖度或净初级生产力；tempij为第i生态地理分区自然保护区内第j种生态系统类型平均气温（℃）；preij第i生态地理分区自然保护区内第j种生态系统类型平均降水量（mm）。
利用拟合的各方程与气温和降水，模拟得到森林、草地和荒漠生态系统顶极植被覆盖度和净初级生产力，若顶极值小于实际值，则由实际值替代。
（2）生态恢复潜力计算
将生态现状与其相应的顶级生态本底比较，计算生态恢复潜力。
Fpotential=Fmax–F
（12）
式中：Fpotential为恢复潜力差距；Fmax为顶级本底；F为现状。差距越大，则恢复潜力越大。
为减少气候波动导致的各年之间的误差，选择最近三年2017—2019年植被覆盖度和净初级生产力平均值作为生态现状，在一定程度上避免潜力高估或低估。为匹配生态现状数据和减少气候波动误差，利用拟合的各方程与2017—2019多年平均年均温和年降水量，模拟得到2017—2019年顶级生态本底数据。

2 结果分析

2.1 生态质量恢复状况分析

2019年，黄土高原年平均植被覆盖度为54.89%，河谷平原区植被覆盖度最高，为72.76%，沙地和沙漠区植被覆盖度最低，为18.19%。空间趋势为东部较高西北部较低，以农牧交错带边缘形成明显分界，因东部为湿润区而西北部为干旱区，降水年际变化较大，造成植被覆盖度空间差异较大，应对该区域进行重点关注，比较2000—2009年与2010—2019年两个十年年均植被覆盖度，该界线明显向西北撤退，植被得到了一定的恢复，各区两时段变化率均为增加（图2、表1）。

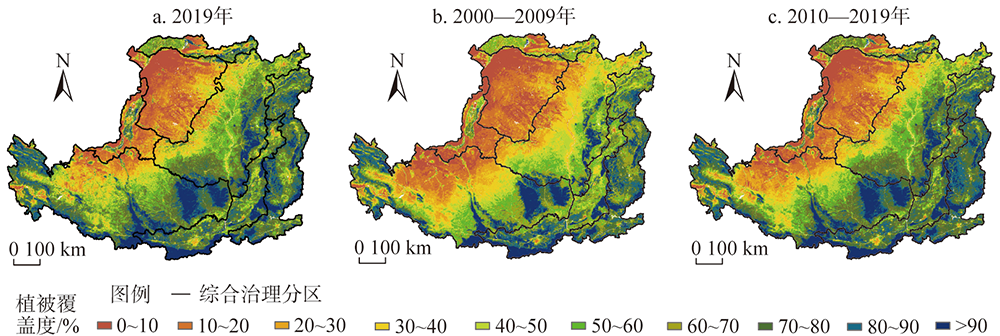

图2 2000—2019年黄土高原平均植被覆盖恢复状况

Fig. 2 Average of restoration of vegetation coverage in the Loess Plateau from 2000 to 2019

Full size|PPT slide

表1 2000—2019年多年平均黄土高原植被覆盖度变化

Table 1 Average annual value of restoration of vegetation coverage in the Loess Plateau from 2000 to 2019 (%)

综合治理分区 2000—2009年 2010—2019年 变化率
农灌区 30.76 34.84 4.08
沙地和沙漠区 14.95 17.45 2.50
黄土丘陵沟壑区 45.80 55.57 9.77
土石山区 73.68 76.94 3.26
黄土塬沟壑区 50.29 56.17 5.88
河谷平原区 72.79 74.81 2.02
比较两个时段植被覆盖度变化趋势，持续转差的面积占比约1.89%，先转好（稳定）后转差的面积占比17.78%，先转差后转好（稳定）的面积占比5.64%，保持稳定的面积占比9.24%，持续转好的面积占比39.90%，其中黄土丘陵沟壑区植被覆盖度持续转好面积较大，主要分布在农牧交错带地区，持续变差区域主要位于西北区域土石山区和河谷平原区，在河谷平原区由于城镇化加快，耕地面积不断增加，同时，西安、咸阳等一些大城市的发展导致更多耕地转为建设用地，植被覆盖度呈下降趋势，植被退化严重（图3）。

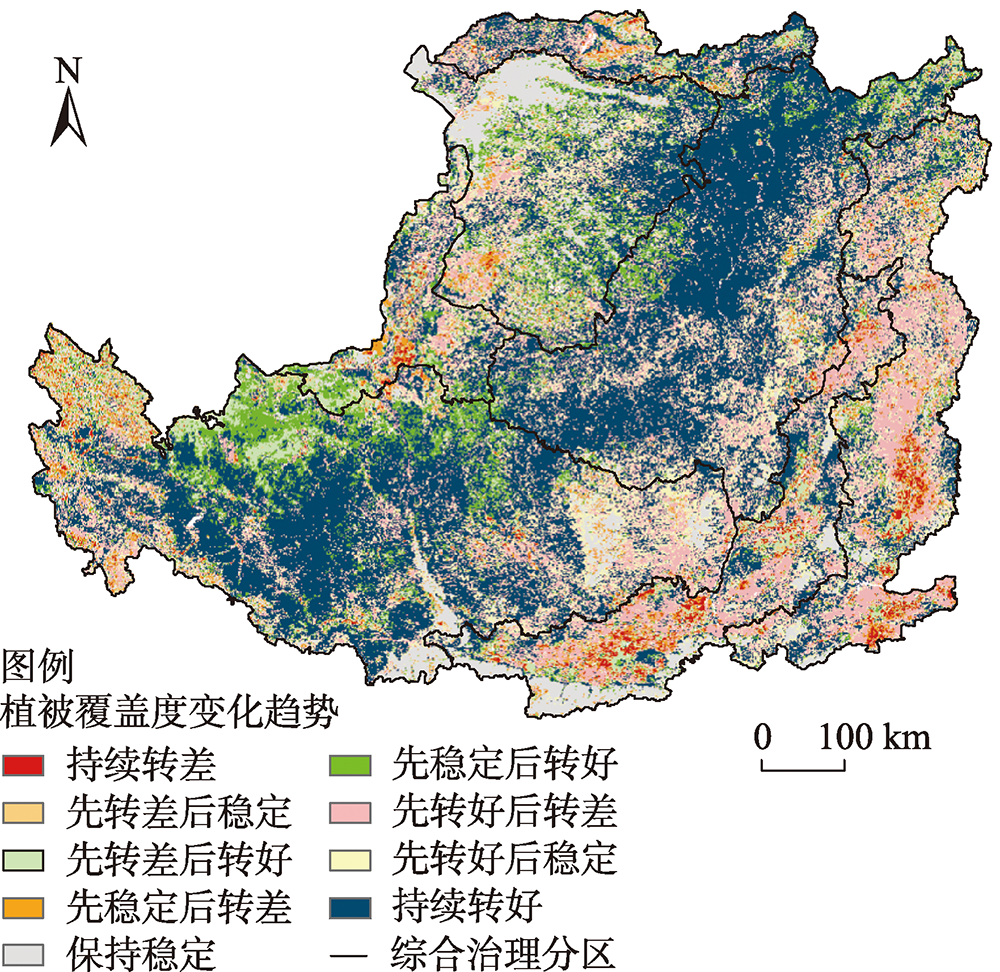

图3 2000—2019年黄土高原植被覆盖度恢复趋势

Fig. 3 Restoration trend of vegetation coverage in the Loess Plateau from 2000 to 2019

Full size|PPT slide

2019年，黄土高原年平均植被NPP为337.21 g C/m²，河谷平原区植被NPP最高，为421.32 g C/m²，沙地和沙漠区植被覆盖度最低，为155.65 g C/m²。空间趋势为东部较高西北部较低，与植被覆盖度空间趋势相似，对比黄土高原植被类型情况[33]，植被NPP高值区主要植被类型为阔叶林，低值区主要植被类型为草原或植被覆被较少的区域。比较2000—2009年与2010—2019年两个十年年均植被NPP，高值区域面积有明显增加，低值区域面积变化不明显，仍集中在沙地和沙漠区，最低值集中于毛乌素沙漠范围内。各区两时段变化率均在15%以上（图4、表2）。

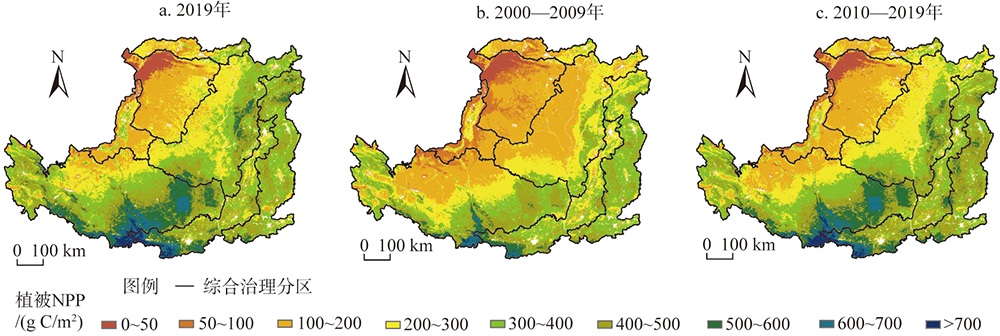

图4 2000—2009年黄土高原平均植被NPP恢复状况

Fig. 4 Average restoration of vegetation NPP in the Loess Plateau from 2000 to 2019

Full size|PPT slide

表2 2000—2019年黄土高原平均植被NPP变化

Table 2 Average annual value of restoration of vegetation NPP in the Loess Plateau from 2000 to 2019

综合治理分区 2000—2009年/(g C/m2) 2010—2019年/(g C/m2) 变化率/%
农灌区 146.98 183.12 24.59
沙地和沙漠区 102.62 136.81 33.32
黄土丘陵沟壑区 222.64 315.34 41.64
土石山区 351.44 405.07 15.26
黄土塬沟壑区 294.65 372.58 26.45
河谷平原区 357.43 432.86 21.10
计算并比较两个时段植被NPP的变化趋势，持续转差的面积占比约0.03%，先转好（稳定）后转差的面积占比为1.5%，先转差后转好（稳定）的面积占比为0.61%，保持稳定的面积占比为3.22%，持续转好的面积占比为82.71%，全区植被NPP大范围为持续增加趋势（图5）。

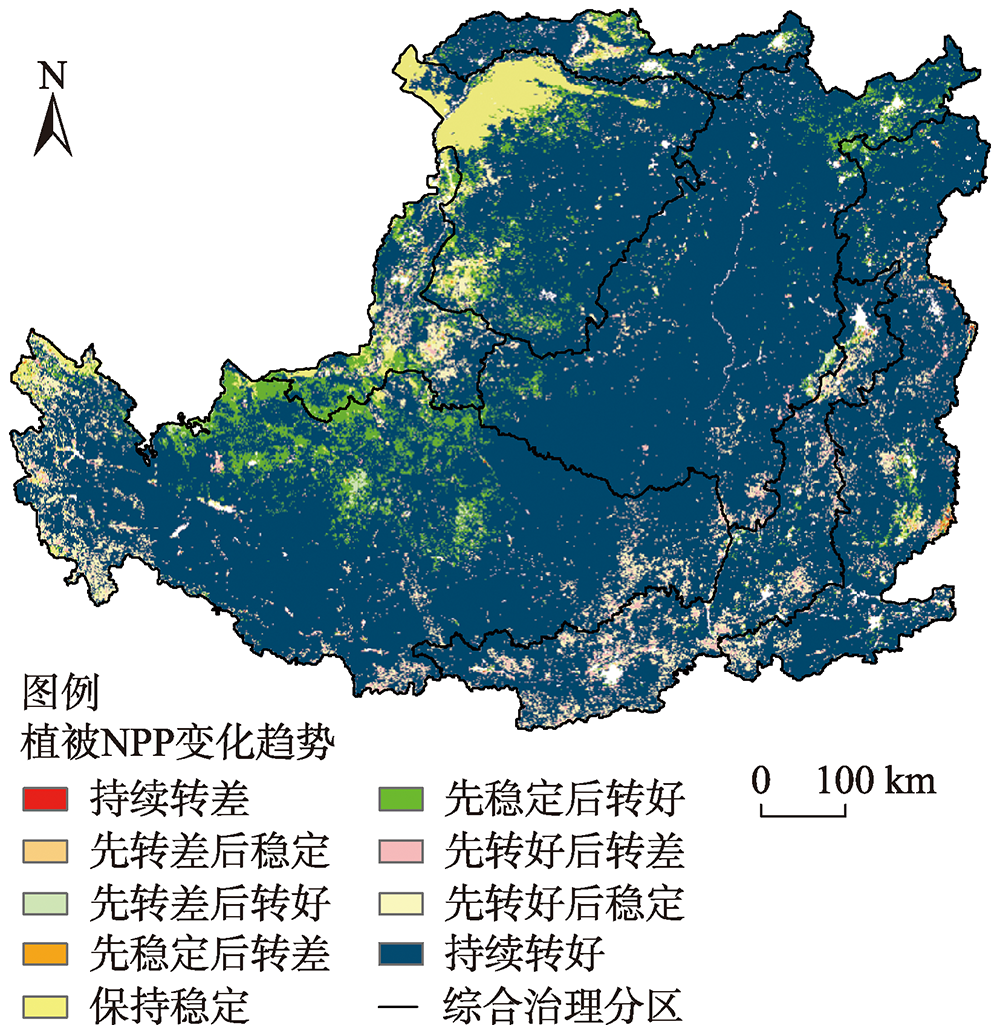

图5 2000—2019年黄土高原植被NPP恢复趋势

Fig. 5 Restoration trend of vegetation NPP in the Loess Plateau from 2000 to 2019

Full size|PPT slide

2.2 生态系统服务恢复状况分析

2019年黄土高原单位面积水源涵养量为311.56万m3/km2（表3）。其中，河谷平原区单位面积水源涵养量最高，为582.55万m3/km2，黄土丘陵沟壑区最低，为165.47万m3/km2，空间格局差异明显，靠近南部位于半湿润气候区的治理区，水源涵养服务较好（图6a）。黄土高原区平均土壤水蚀模数为13.20 t/hm2，其中：黄土塬沟壑区平均土壤水蚀模数最高为20.58 t/hm2；黄土丘陵沟壑区也较高为17.40 t/hm2；河谷平原区最低为6.46 t/hm2。沙地和沙漠区主要受风蚀影响，水蚀模数较低，受地形和气候的双重影响，黄土塬沟壑区和丘陵沟壑区水蚀较严重，土壤保持服务功能较低，该地区也是中国农牧交错带地区，应作为重点生态区域予以重点关注（图6b）。黄土高原风蚀区平均土壤风蚀模数为1.29 t/hm2，主要是沙地和沙漠区受风蚀的影响较大，平均土壤风蚀模数为4.42 t/hm2（图6c）。
表3 2019年黄土高原生态系统服务量

Table 3 Ecosystem services in the Loess Plateau in 2019

黄土高原治理分区 单位面积水源涵养量
/(万m3/km2)		 土壤水蚀模数
/(t/hm2)		 土壤风蚀模数
/(t/hm2)
农灌区 172.14 7.82 3.86
河谷平原区 582.55 6.46 0.15
黄土塬沟壑区 447.35 20.58 1.31
土石山区 251.17 7.24 0.18
黄土丘陵沟壑区 165.47 17.40 0.64
沙地和沙漠区 232.03 4.39 4.42

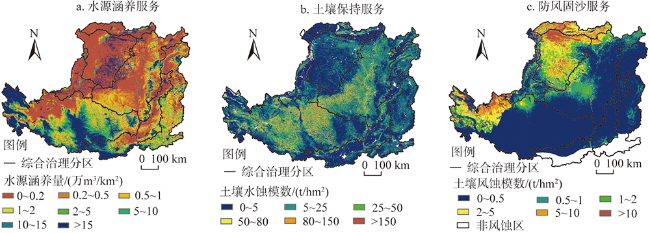

图6 2019年黄土高原生态系统服务现状

Fig. 6 Ecosystem service in the Loess Plateau in 2019

Full size|PPT slide

2010—2019年与2000—2009年相比，黄土高原水源涵养服务持续转差的面积占比约1.88%，先转好（稳定）后转差的面积占比为17.78%，先转差后转好（稳定）的面积占比为1.00%，先稳定后转好或先转好后稳定的面积占比为42.15%，保持稳定的面积占比为26.65%，持续转好的面积占比为15.46%，区域大范围水源涵养服务有转好趋势，河谷平原区有部分区域先转好后转差（图7a）。两时段内，土壤保持服务持续变差的面积占比为0.04%，先转差后转好（稳定）的面积占比为0.45%，先稳定（转好）后转差的面积占比为3.31%，保持稳定的面积占比为76.99%，先转好后稳定或先稳定后转好的面积占比为18.88%，持续转好的面积占比为0.32%。转好区域主要集中在黄土塬沟壑区和黄土丘陵沟壑区，土壤保持服务虽然在该区域较差但有所提升，一直在恢复中（图7b）。两时段内，风蚀区防风固沙服务持续转好面积占比为6.30%，先转好后稳定为5.29%，主要集中在西北部干旱气候区沙地和沙漠区，是防风固沙服务的主要响应区域。两个时段黄土高原地区生态系统服务总体都具有转好的趋势，生态状况有所恢复（图7c）。

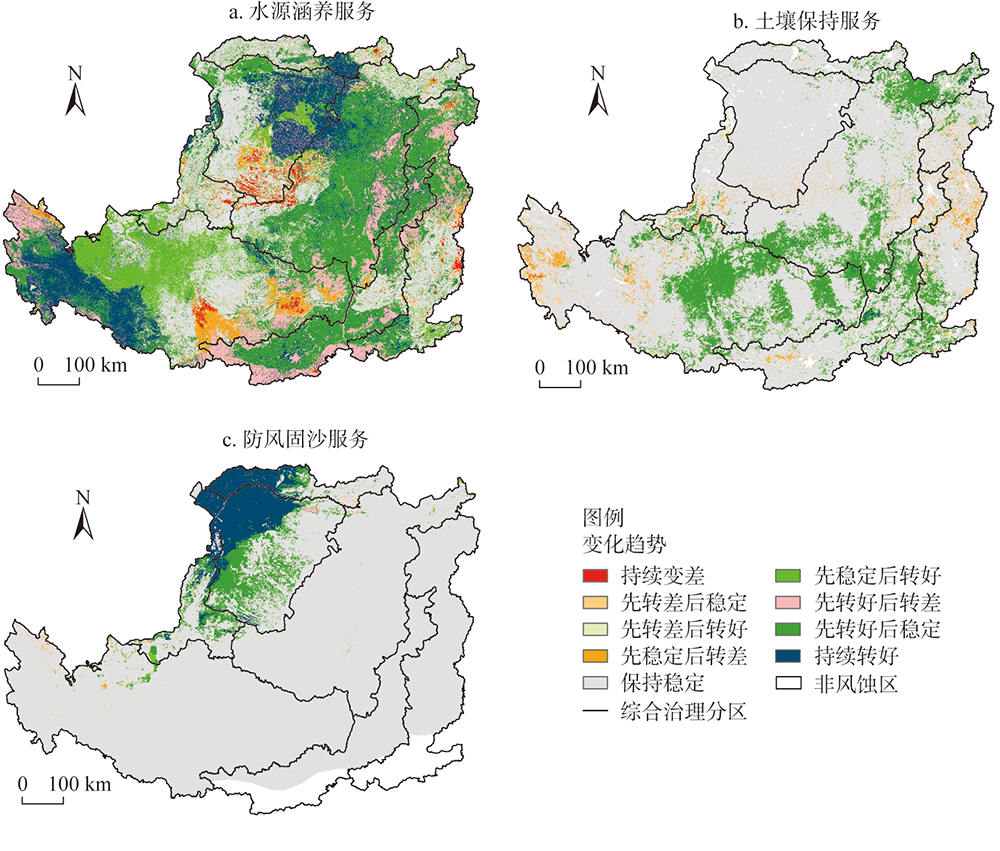

图7 2000—2019年黄土高原生态系统服务变化趋势

Fig. 7 Changing trend of ecosystem service in the Loess Plateau from 2000 to 2019

Full size|PPT slide

2000—2019年生态系统水源涵养量年均变化速率为2.38 m3/hm2，整体呈现上升趋势（图8a）。年均水源涵养量增加区域主要位于黄土塬沟壑区、黄土丘陵沟壑区和沙地沙漠区，通过0.05显著性检验的区域面积占比为6.02%（图8b）；水蚀模数年均变化速率为 -0.67 t/(hm2·a)，整体呈现轻微递减趋势（图8c），其中，黄土丘陵沟壑区水蚀模数年均变化速率为-1.12 t/(hm2·a)，土石山区水蚀模数年均变化速率为-1.13 t/(hm2·a)，河谷平原区水蚀模数年均变化速率为-1.07 t/(hm2·a)，黄土塬沟壑区水蚀模数年均变化速率为 -0.77 t/(hm2·a)，农灌区水蚀模数年均变化速率为0.25 t/(hm2·a)。土壤保持服务恢复高值区主要集中在黄土丘陵沟壑区和黄土塬沟壑区，除农灌区其他分区都有一定恢复转好，通过0.05显著性检验的区域面积占比为10.49%（图8d）。风蚀区风蚀模数年均变化速率为-0.45 t/(hm2·a)，整体呈现轻微递减趋势（图8e）。其中，沙地和沙漠区风蚀模数年均变化速率为-1.61 t/(hm2·a)，农灌区风蚀模数年均变化速率为-1.16 t/(hm2·a)，防风固沙服务在风蚀重点区域均有一定程度的恢复增强，特别是沙地和沙漠区，通过0.05显著性检验的区域面积占比为49.98%（图8f）。

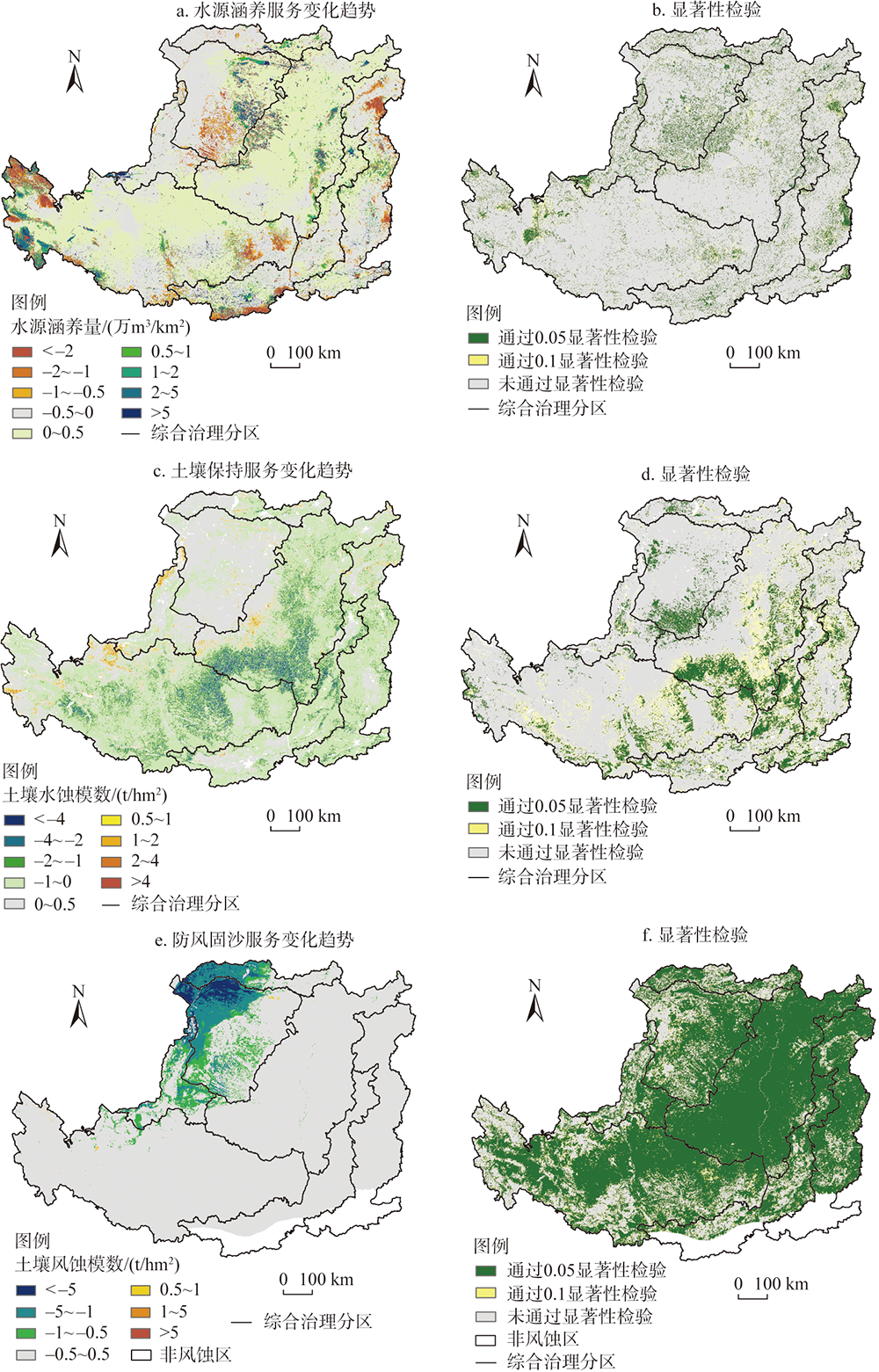

图8 2000—2019年黄土高原生态系统服务变化趋势及其显著性检验

Fig. 8 Changing trends and their significance level of ecosystem services in the Loess Plateau from 2000 to 2019

Full size|PPT slide

2.3 生态恢复程度综合评估

叠加分析5种生态指标2000—2019年的变化趋势情况，因选取的生态指标主要呈恢复转好趋势，所以不再讨论保持稳定和退化的情况（图9）。4个及以上生态指标全部转好的区域为恢复程度高的地区，占全区面积的11.08%（表4），主要位于黄土塬沟壑区和黄土丘陵沟壑区，该区域为干旱气候区和湿润气候区的交接地带，也是中国农牧交错带地区，生态地位十分重要，生态环境和社会经济复杂，目前生态环境有一定的恢复，有逐渐转好趋势。3个生态指标转好区域为恢复程度较高区域，面积最大，占全区面积的34.86%。2个生态指标变好区域为恢复程度中等区域，为32.86%，在各分区分布广泛。仅少数地区存在均未转好即无恢复区域，集中分布于沙地和沙漠区西北部地区，占全区面积的3.51%，该区域生态环境恶劣，以沙地为主，恢复难度大。

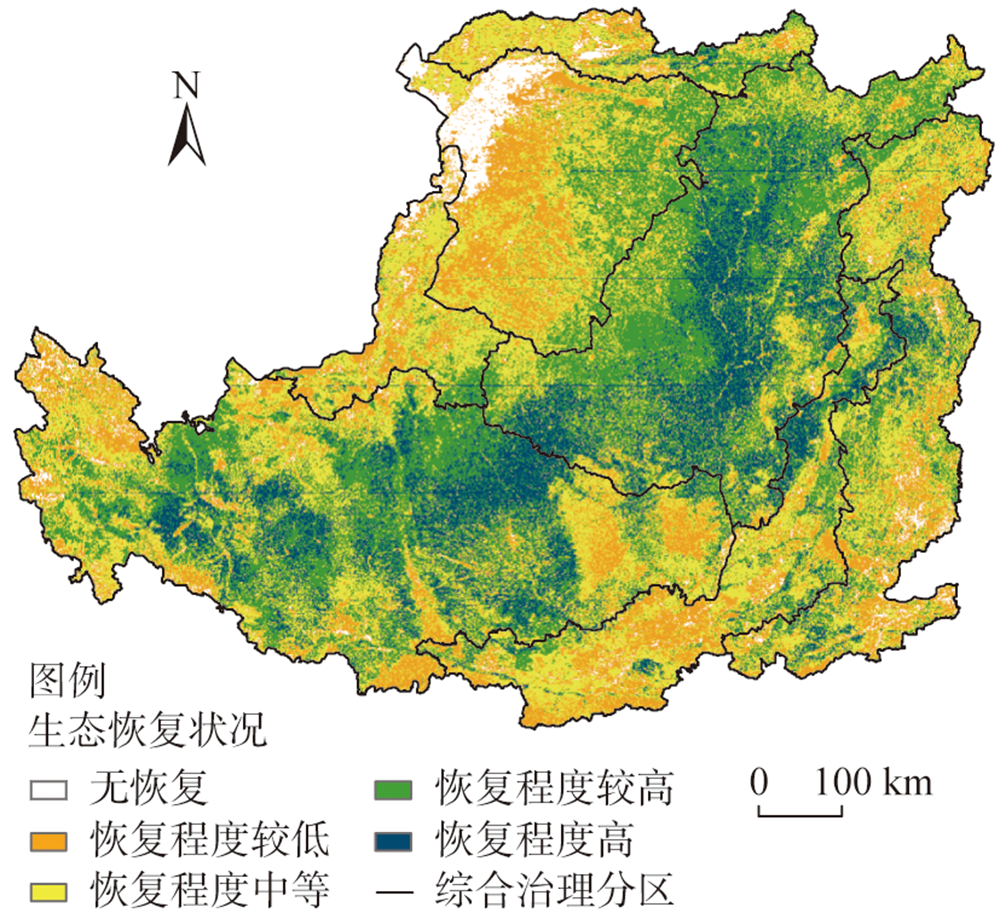

图9 2000—2019年黄土高原生态恢复状况

Fig. 9 Ecological restoration in the Loess Plateau from 2000 to 2019

Full size|PPT slide

表4 2000—2019年黄土高原生态恢复状况面积统计

Table 4 Area statistics of ecological restoration in the Loess Plateau from 2000 to 2019

生态恢复状况 面积/万km2 面积占比/%
无恢复 21859 3.51
恢复程度较低 112217 17.99
恢复程度中等 203076 32.57
恢复程度较高 217386 34.86
恢复成度高 69064 11.08

2.4 生态恢复潜力评估

黄土高原森林、草地和荒漠植被覆盖度恢复潜力为13.10%（图10），其中，农灌区为18.27%，沙地和沙漠区为15.15%，黄土丘陵沟壑区为11.29%，土石山区为9.50%，黄土塬沟壑区为14.92%，河谷平原区为7.66%。植被覆盖度恢复潜力高值区域位于黄土塬沟壑区西部，该区域植被覆盖度较低，存在一定的恢复空间；较高区域位于沙地和沙漠区，该区域现状植被覆盖度低但因受气候、土壤等先天自然条件影响，恢复能力有一定局限性；低值区主要位于东南部黄土塬沟壑区和黄土丘陵沟壑区的东南部，现状植被覆盖较高，已得到了较好的恢复。

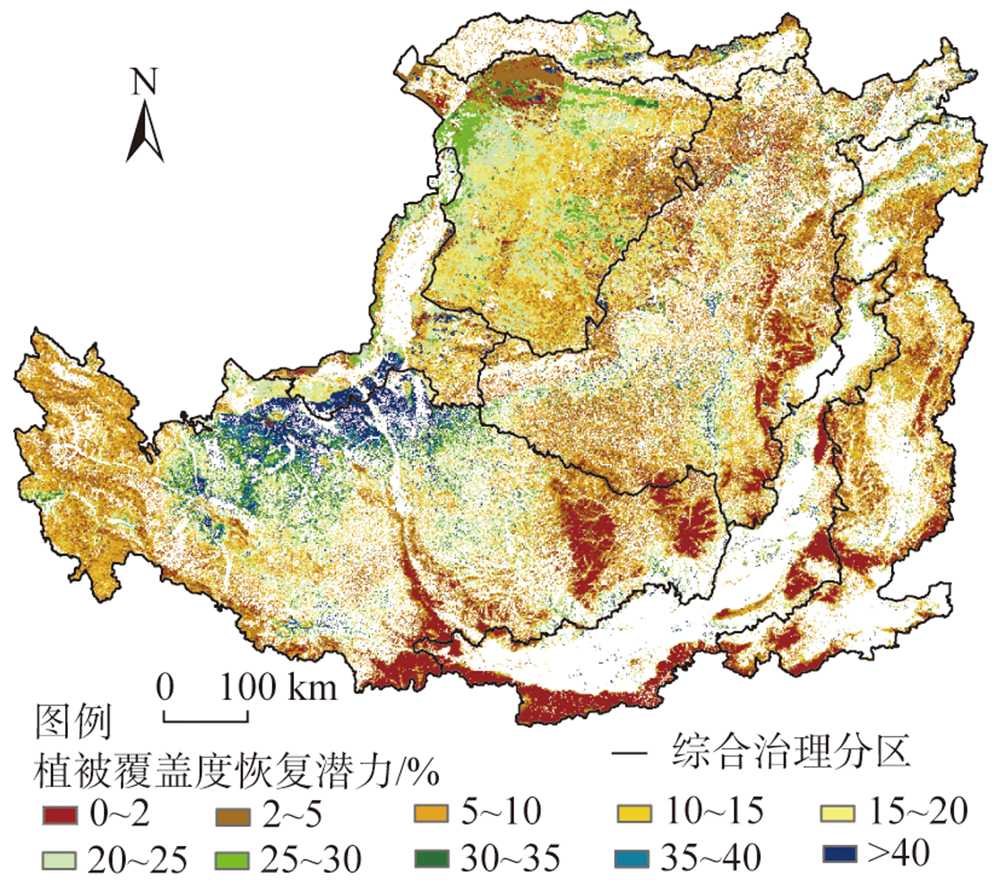

图10 黄土高原植被覆盖度恢复潜力

Fig. 10 Restoration potential of vegetation coverage in the Loess Plateau

Full size|PPT slide

黄土高原森林、草地和荒漠植被的NPP恢复潜力为77.21 g C/m2，其中，农灌区为91.50 g C/m2，沙地和沙漠区为72.55 g C/m2，黄土丘陵沟壑区为85.69 g C/m2，土石山区为79.31 g C/m2，黄土塬沟壑区为71.87 g C/m2，河谷平原区为84.65 g C/m2（图11）。因现状植被NPP恢复较好，整体恢复潜力偏低，其中较高值区域位于黄土丘陵沟壑区中，该区域植被覆盖度较小且位于半干旱区，受降雨影响较大，但降雨较少，主要植被类型为草地，草地有一定的固碳能力，但目前覆盖度较低，具有一定的恢复潜力，可通过恢复草地覆被进行恢复。

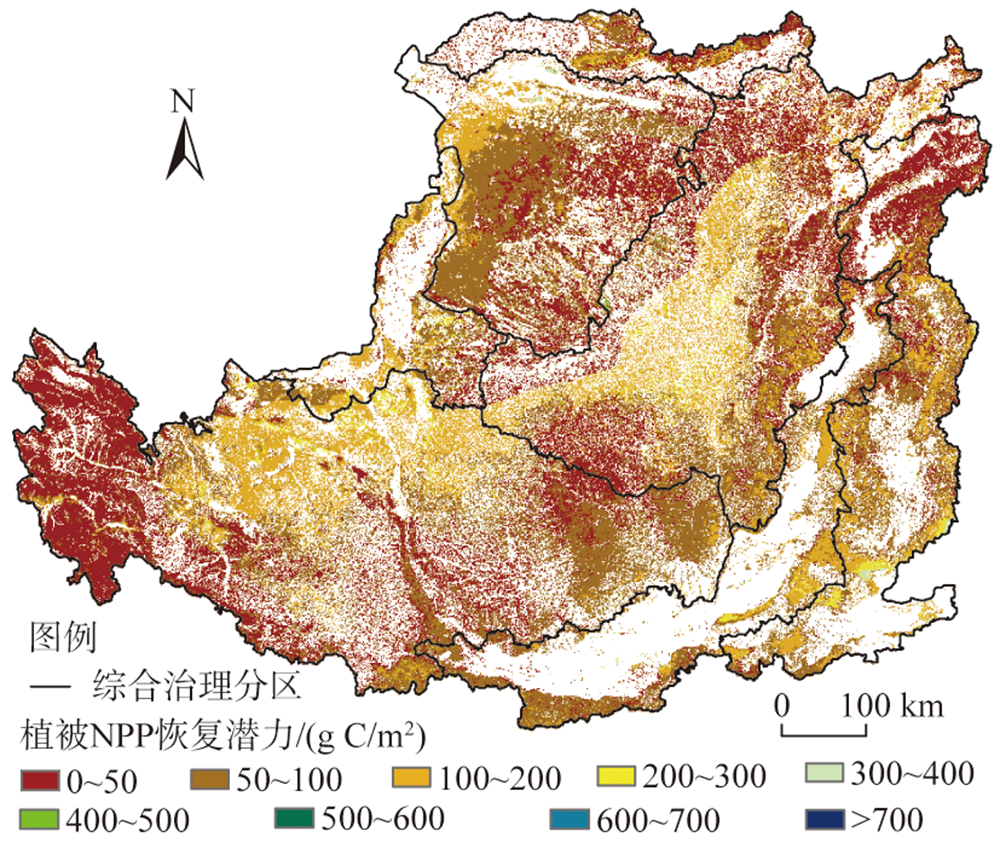

图11 黄土高原植被NPP恢复潜力

Fig. 11 Restoration potential of vegetation NPP in the Loess Plateau

Full size|PPT slide

3 结论与讨论

3.1 结论

本文基于多种模型模拟计算，进行了2000—2019年近20年黄土高原地区生态恢复状况及恢复潜力研究，主要结论如下：
（1）生态质量有所恢复转好：2010—2019年较2000—2009年植被覆盖度有所提升，持续转好区域主要位于黄土丘陵沟壑区，面积占比为39.90%，植被NPP高值区域面积明显增加，低值区域面积几乎无变化，持续转好区域的面积占比为82.71%。
（2）生态系统服务有所恢复提高：2010—2019年与2000—2009年相比，水源涵养服务持续转好的面积占比为15.46%，土壤保持服务先转好后稳定或先稳定后转好的面积占比为18.88%，风蚀区防风固沙服务持续转好面积占比为6.30%，先转好后稳定为5.29%。近20年生态系统服务总体向好，部分转差。
（3）综合生态恢复程度高的地区占全区面积的11.08%，主要位于黄土丘陵沟壑区；无恢复地区占3.51%，集中分布在于沙地和沙漠区。植被覆盖度恢复潜力为13.10%，高值区主要位于黄土塬沟壑区西部，低值区主要位于黄土丘陵沟壑区和河谷平原部分区域；植被NPP恢复潜力为77.21 g C/m2，整体恢复潜力偏低，潜力较大区域主要位于黄土丘陵沟壑区，可通过提高草地覆被面积进行恢复。

3.2 讨论

自2000年以来，黄土高原开始大规模实施退耕还林还草等生态建设工程，评估生态工程实施后恢复程度具有重要意义。本文计算植被覆盖度呈现增长趋势，空间差异明显，以半干旱气候区与半湿润气候区过渡地带为明显分界。该区域为农牧交错带地区，生态环境极为脆弱，是遏制中国荒漠化东移的重要生态屏障[36]。比较2000—2009年与2010—2019年两个十年年均植被覆盖度，低覆盖度区域明显向西北撤退，该区域植被得到了一定的恢复，同时生态质量恢复转好也主要发生在该区域。植被NPP与植被覆盖度空间分布相似，植被的增加是生态系统固碳能力提高的重要原因[37]，比较前后十年植被NPP恢复情况，位于东南部的高值区面积有所增加，低值区面积变化不明显，主要因为黄土高原东南部位于半湿润地区，植被经过多年生长，有较强的固碳能力，而西北部的沙地和沙漠区气候干旱，植被生长缓慢，固碳能力增长较慢[38]。总体而言，生态工程对于生态质量恢复具有较大的推动作用，水源涵养与土壤保持服务增长区域主要位于半干旱半湿润过渡地带。该区域地势平坦，自实施退耕还林等生态工程以来，林地覆盖度增加，因林冠层有截留雨水的作用，且根系可以提高土壤稳定性，使得水源涵养与土壤保持服务有所提高[39]。防风固沙服务主要在沙地和沙漠治理区表现为增长趋势，虽然植被较少，但是草沙障、固沙网等工程措施的实施对固沙服务具有重要的提升作用。不同生态系统服务在研究区的时空变化，后期更多制约于本底气候、地貌、土壤等因素，而非植被变化。其他学者主要进行了植被覆盖和单一生态系统服务研究[40⇓-42]，而本文选取生态质量中两个指标和生态系统服务中三个指标综合进行生态恢复程度评估，恢复程度较高区域位于半干旱半湿润过渡区，农耕区向草原牧区过渡的特殊地区，该区域是受人类活动影响最剧烈地区，综合了退耕还林、退牧还草、三北防护林、天然林保护等重大生态工程，生态工程实施成效显著。
目前对于植被恢复潜力的定量研究较少，高海东等[43]研究从水分的植被承载力入手，采取统计分析方法进行植被恢复潜力研究；赵广举等[44]根据黄土高原地理、植被、土壤、地形和气候五大类因素进行叠加分区，分区评估能够达到的植被覆盖程度。但上述研究都未考虑不受人类影响的自然恢复能达到的顶级生态系统状态，本文提取在相同生态地理分区中的国家和省级自然保护区（不受人类影响的自然恢复区）生态质量数据，结合气候变化，近似获得黄土高原顶级生态系统下的本底数据，与生态现状相比得到恢复潜力。因植被恢复潜力受气候、地形等自然环境影响较大，不同分区自然环境不同，水热条件差异较大，所以各区域顶级本底有所不同，导致恢复潜力有所差异。因此不应过度追求植树造林增加植被覆盖度，应根据不同分区生态地理特征，结合当地具体条件，采取相应的生态措施进行恢复，对恢复潜力较高地区可进一步加强生态措施，潜力较低但顶级本底较高地区以维护和自然恢复为主，从而进行有效的生态措施分区管理。
本文最终生成的数据集为2000—2019年1 km生态质量数据集和生态系统服务数据集，估算过程中使用了不同精度的数据，考虑到高分辨率影像难以获得以及研究区域的空间尺度，为统一多源数据尺度，将各结果统一为1 km空间分辨率进行分析，但该精度的生态系统服务评估也较为粗糙[45]，如地形是影响土壤侵蚀强度和分布的重要因素之一[46,47]，黄土高原地形复杂多样，在土壤侵蚀计算中需要获取更精细的地形数据得到更高精度的土壤保持服务数据以提高结果的可靠性，今后需进一步提高数据源精度，提高结果的准确性。
