浙江三门湾湿地遥感时间序列演变分析

doi:10.31497/zrzyxb.20220414

自然资源学报 ›› 2022, Vol. 37 ›› Issue (4): 1036-1048.doi: 10.31497/zrzyxb.20220414

浙江三门湾湿地遥感时间序列演变分析

刘永超¹^,²^,³(), 李加林¹^,²^,³(), 王新新⁴, 何改丽⁵, 李东霖⁶, 赵赛帅⁷, 赵冰雪⁵, 孙超¹^,²^,³

1.宁波大学地理与空间信息技术系,宁波 315211
2.浙江省新型重点专业智库宁波大学东海战略研究院,宁波 315211
3.宁波陆海国土空间利用与治理协同创新中心,宁波 315211
4.复旦大学生物多样性与生态工程教育部重点实验室,上海 200438
5.南京大学地理与海洋科学学院,南京 210023
6.宁波市发展规划研究院,宁波 315040
7.宁波市测绘和遥感技术研究院,宁波 315042

收稿日期:2020-09-20 修回日期:2021-03-05 出版日期:2022-04-28 发布日期:2022-06-28
通讯作者: 李加林（1973- ）,男,浙江台州人,博士,教授,博士生导师,研究方向为海岸带资源开发与规划管理。E-mail: nbnj2001@163.com
作者简介:刘永超（1990- ）,男,甘肃庆阳人,博士,助理研究员,研究方向为海岸带资源环境演变。E-mail: lycgeo@163.com
基金资助:
国家自然科学基金项目(41976209);国家自然科学基金项目(41901121);浙江省省属高校基本科研业务费专项资金(SJWY2022012)

Changes of wetland in the Sanmen Bay, Zhejiang province based on Landsat time-series remote sensing images

LIU Yong-chao¹^,²^,³(), LI Jia-lin¹^,²^,³(), WANG Xin-xin⁴, HE Gai-li⁵, LI Dong-lin⁶, ZHAO Sai-shuai⁷, ZHAO Bing-xue⁵, SUN Chao¹^,²^,³

1. Department of Geography and Spatial Information Techniques, Ningbo University, Ningbo 315211, Zhejiang, China
2. Donghai Academy, Ningbo University, Ningbo 315211, Zhejiang, China
3. Collaborative Innovation Center for Land and Marine Spatial Utilization and Governance Research at Ningbo University, Ningbo 315211, Zhejiang, China
4. Key Laboratory of Biodiversity and Ecological Engineering, Ministry of Education, Fudan University, Shanghai 200438, China
5. School of Geography and Ocean Science, Nanjing University, Nanjing 210023, China
6. Ningbo Development Planning Research Institute, Ningbo 315040, Zhejiang, China
7. Ningbo Institute of Surveying, Mapping and Remote Sensing Technology, Ningbo 315042, Zhejiang, China

Received:2020-09-20 Revised:2021-03-05 Online:2022-04-28 Published:2022-06-28

摘要/Abstract

摘要：

海湾湿地演变的时空特征分析,对明晰海湾资源环境基底、了解综合开发潜力,促进湾区可持续发展具有重要意义。以浙江三门湾湿地为研究区,利用1984—2019年Landsat TM/ETM+/OLI遥感影像数据,基于湿地地物光谱指数时间序列变化特征,对三门湾湿地信息进行提取并分析了其动态变化。结果表明：1984年以来三门湾湿地面积变化显著,主要位于宁海县南部、三门县东北部以及象山县西南部地区;从海湾面积变化趋势看,1984—2002年呈波动下降趋势,2003—2009年呈加速下降趋势,2010—2019年则呈平稳发展趋势。围填海等人类活动导致海湾形态变化显著,海岸带管理政策的供给过程变化成为海湾湿地演变的重要因素之一。研究可为后围填海时代湾区建设与海湾可持续发展提供决策支持。

关键词: Landsat影像, 时间序列, 潮滩, 盐沼, 围垦, 动态监测, 浙江三门湾

Abstract:

The bay is a unique strategic and ecological space in the coastal zone. Under the influence of global warming and intensified human activities, the shape and ecosystem of the bay have become more sensitive, fragile, and changeable. It is particularly necessary to clarify the temporal and spatial differentiation characteristics of wetland evolution in the bay areas under the influence of human activities and to find out the root cause of the wetland resource endowment. With the increase of satellite remote sensing data and the development of geographic analysis platforms (i.e., Google Earth Engine, GEE), rapid, low-cost, high-precision continuous monitoring of the evolution of the land surface becomes possible. The analysis of the temporal and spatial characteristics of the evolution of the bay wetland is of great significance for clarifying the resource and environmental base of the bay, understanding the comprehensive development potential, and promoting the sustainable development of the bay area. Taking the Sanmen Bay Wetland (SBW) in Zhejiang province as the study area, using Landsat TM/ETM+/OLI remote sensing image data from 1984 to 2019, based on the change characteristics of the spectral index time series, we extracted the information of the study area to examine its dynamic changes. The results show that the area of SBW has changed significantly since 1984, mainly found in the south of Ninghai county, the northeast of Sanmen county, and the southwest of Xiangshan county. In terms of the area, there was a fluctuating downward trend from 1984 to 2002, an accelerated downward trend from 2003 to 2009, and a steady development trend from 2010 to 2019. Human activities, such as reclamation, have caused significant changes in the shape of the bay, and the supply process of coastal zone management policy has become one of the important factors in the evolution of the bay wetland. The research can provide decision support for the construction of the bay area and the sustainable development of coastal areas in the future.

Key words: Landsat image, time series, tidal flat, salt marsh, reclamation, dynamic monitoring, Sanmen Bay

刘永超, 李加林, 王新新, 何改丽, 李东霖, 赵赛帅, 赵冰雪, 孙超. 浙江三门湾湿地遥感时间序列演变分析[J]. 自然资源学报, 2022, 37(4): 1036-1048.

LIU Yong-chao, LI Jia-lin, WANG Xin-xin, HE Gai-li, LI Dong-lin, ZHAO Sai-shuai, ZHAO Bing-xue, SUN Chao. Changes of wetland in the Sanmen Bay, Zhejiang province based on Landsat time-series remote sensing images[J]. JOURNAL OF NATURAL RESOURCES, 2022, 37(4): 1036-1048.

图/表 11

图1

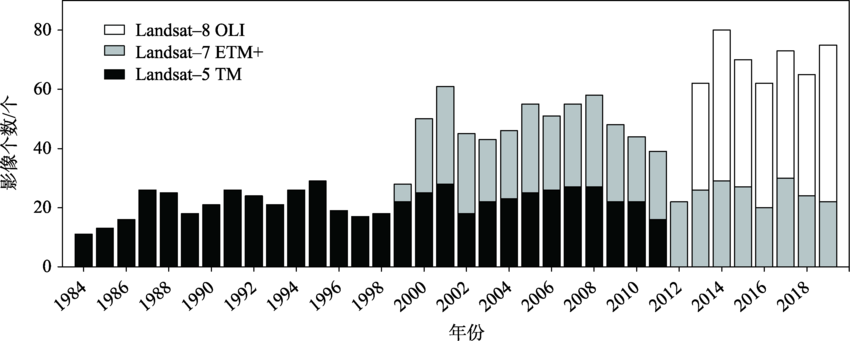

图2

图3

图4

图5

图6

表1

图7

图8

图9

表2

参考文献 32

[1]	侯西勇, 侯婉, 毋亭. 20世纪40年代初以来中国大陆沿海主要海湾形态变化. 地理学报, 2016, 71(1):118-129. doi: 10.11821/dlxb201601009
	[HOU X Y, HOU W, WU T. Shape changes of major gulfs along the mainland of China since the early 1940s. Acta Geographica Sinica, 2016, 71(1):118-129.]
[2]	李加林, 王丽佳. 围填海影响下东海区主要海湾形态时空演变. 地理学报, 2020, 75(1):126-142. doi: 10.11821/dlxb202001010
	[LI J L, WANG L J. Spatial and temporal evolutions of the major bays in the East China Sea under the influence of reclamation. Acta Geographica Sinica, 2020, 75(1):126-142.]
[3]	NICHOLLS R J, CAZENAVE A. Sea-level rise and its impact on coastal zones. Science, 2010, 328(5985):1517-1520. doi: 10.1126/science.1185782
[4]	刘艳霞. 国内外湾区经济发展研究与启示. 城市观察, 2014, (3):155-163.
	[LIU Y X. Research and implications of bay zone economy home and abroad. Urban Insight, 2014, (3):155-163.]
[5]	JEVREJEVA S, JACKSON L P, RIVA R E M, et al. Coastal sea level rise with warming above 2 °C. Proceedings of the National Academy of Sciences, 2016, 113(47):13342-13347.
[6]	李加林, 姜忆湄, 冯佰香, 等. 海湾开发利用强度分析: 以宁波市杭州湾、象山港与宁波市三门湾为例. 应用海洋学学报, 2018, 37(4):541-550.
	[LI J L, JIANG Y M, FENG B X, et al. Analysis of intensively exploited bay area with cases of Ningbo Hangzhou Bay, Xiangshan Bay, and Ningbo Sanmen Bay. Journal of Applied Oceanography, 2018, 37(4):541-550.]
[7]	REN C, WANG Z, ZHANG Y, et al. Rapid expansion of coastal aquaculture ponds in China from Landsat observations during 1984-2016. International Journal of Applied Earth Observation and Geoinformation, 2019, 82:101902, Doi: 10.1016/j.jag.2019.101902. doi: 10.1016/j.jag.2019.101902
[8]	SUN C, LIU Y, ZHAO S, et al. Classification mapping and species identification of salt marshes based on a short-time interval NDVI time-series from HJ-1 optical imagery. International Journal of Applied Earth Observation and Geoinformation, 2016, 45:27-41. doi: 10.1016/j.jag.2015.10.008
[9]	李加林, 刘永超. 人工地貌学学科体系框架构建初探. 地理研究, 2016, 35(12):2203-2215. doi: 10.11821/dlyj201612001
	[LI J L, LIU Y C. Framework establishment of disciplinary system of anthropogenic geomorphology. Geographical Research, 2016, 35(12):2203-2215.]
[10]	李加林, 杨晓平, 童亿勤. 潮滩围垦对海岸环境的影响研究进展. 地理科学进展, 2007, 26(2):43-51.
	[LI J L, YANG X P, TONG Y Q. Progress on environmental effects of tidal flat reclamation. Progress in Geography, 2007, 26(2):43-51.]
[11]	刘永超, 李加林, 张宇, 等. 时间序列遥感影像支持下杭州湾南岸植被动态监测. 宁波大学学报: 理工版, 2020, 33(1):25-31.
	[LIU Y C, LI J L, ZHANG Y, et al. Dynamic monitoring of vegetation in Southern Hangzhou Bay from time series images. Journal of Ningbo University: NSEE, 2020, 33(1):25-31.]
[12]	LIU Y, LIU Y, LI J, et al. Trajectory of coastal wetland vegetation in Xiangshan Bay, China, from image time series. Marine Pollution Bulletin, 2020, 160:111697, Doi: 10.1016/j.marpolbul.2020.111697. doi: 10.1016/j.marpolbul.2020.111697
[13]	刘永超, 李加林, 袁麒翔, 等. 人类活动对港湾岸线及景观变迁影响的比较研究: 以中国象山港与美国坦帕湾为例. 地理学报, 2016, 71(1):86-103. doi: 10.11821/dlxb201601007
	[LIU Y C, LI J L, YUAN Q X, et al. Comparative research on the impact of human activities on changes in coastline and landscape in bay areas: A case study with Xiangshan Bay, China and Tampa Bay, USA. Acta Geographica Sinica, 2016, 71(1):86-103.]
[14]	陈晓英, 张杰, 马毅, 等. 近40 a来三门湾海岸线时空变化遥感监测与分析. 海洋科学, 2015, 39(2):43-49.
	[CHEN X Y, ZHANG J, MA Y, et al. Monitoring and analysis of coastline changes of the Sanmen Bay with remote sensing during the past 40 years. Marine Science, 2015, 39(2):43-49.]
[15]	朱高儒, 许学工. 渤海湾西北岸1974—2010年逐年填海造陆进程分析. 地理科学, 2012, 32(8):1006-1012. doi: 10.13249/j.cnki.sgs.2012.08.1006
	[ZHU G R, XU X G. Annual processes of land reclamation from the sea along the northwest coast of Bohai Bay during 1974 to 2010. Scientia Geographica Sinica, 2012, 32(8):1006-1012.]
[16]	何改丽, 李加林, 刘永超, 等. 1985—2015年美国坦帕湾流域土地开发利用强度时空变化分析. 自然资源学报, 2019, 34(1):66-79.
	[HE G L, LI J L, LIU Y C, et al. Spatio-temporal analysis of land development and utilization intensity in Tampa Bay watershed from 1985 to 2015. Journal of Natural Resources, 2019, 34(1):66-79.]
[17]	张丹丹, 杨晓梅, 苏奋振, 等. 基于PVS 的海湾开发利用程度评价: 以大亚湾为例. 自然资源学报, 2009, 24(8):1440-1449.
	[ZHANG D D, YANG X M, SU F Z, et al. Exploitative degree evaluation of bay based on PVS framework: A case study of Daya Bay. Journal of Natural Research, 2009, 24(8):1440-1449.]
[18]	刘永超, 李加林, 袁麒翔, 等. 人类活动对象山港潮汐汊道及沿岸生态系统演化的影响. 宁波大学学报: 理工版, 2015, 28(4):120-123.
	[LIU Y C, LI J L, YUAN Q X, et al. Tidal inlet and ecological system evolution of coastal area of Xiangshan Bay under influence of human activities. Journal of Ningbo University: NSEE, 2015, 28(4):120-123.]
[19]	林桂兰, 左玉辉. 海湾资源开发的累积生态效应研究. 自然资源学报, 2006, 21(3):432-440.
	[LIN G L, ZUO Y H. Cumulative ecological effects assessment on resource exploitation and utilization in bay. Journal of Natural Resources, 2006, 21(3):432-440.]
[20]	李加林, 龚虹波, 姜忆湄, 等. 中国东海可持续发展研究报告: 海岸带与海湾资源环境演化卷. 北京: 海洋出版社, 2020.
	[LI J L, GONG H B, JIANG Y M, et al. Sustainable Development in East China Sea Evolution of Resources and Environment in Coastal Zone and Bay Area. Beijing: China Ocean Press, 2020.]
[21]	GORELICK N, HANCHER M, DIXON M. Google Earth Engine: Planetary-scale geospatial analysis for everyone. Remote Sensing of Environment, 2017, 202:18-27. doi: 10.1016/j.rse.2017.06.031
[22]	WANG X, XIAO X, ZOU Z, et al. Tracking annual changes of coastal tidal flats in China during 1986-2016 through analyses of Landsat images with Google Earth Engine. Remote Sensing of Environment, 2020, 238:110987, Doi: 10.1016/j.rse.2018.11.030. doi: 10.1016/j.rse.2018.11.030
[23]	李加林, 田鹏, 邵姝遥, 等. 中国东海区大陆岸线变迁及其开发利用强度分析. 自然资源学报, 2019, 34(9):1886-1901.
	[LI J L, TIAN P, SHAO S Y, et al. The change of continental coastline and its development and utilization intensity in the East China Sea. Journal of Natural Resources, 2019, 34(9):1886-1901.]
[24]	侯西勇, 毋亭, 王远东, 等. 20世纪40年代以来多时相中国大陆岸线提取方法及精度评估. 海洋科学, 2014, 38(11):66-73.
	[HOU X Y, WU T, WANG Y D, et al. Extraction and accuracy evaluation of multi-temporal coastlines of mainland China since 1940s. Marine Sciences, 2014, 38(11):66-73.]
[25]	中国海湾志编纂委员会. 中国海湾志<第五分册>. 北京: 海洋出版社, 1992.
	[China Gulf History Compilation Committee. China Gulf History (Fifth Volume). Beijing: China Ocean Press, 1992.]
[26]	TUCKER C J. Red and photographic infrared linear combinations for monitoring vegetation. Remote Sensing of Environment, 1979, 8(2):127-150. doi: 10.1016/0034-4257(79)90013-0
[27]	HUETE A, DIDAN K, MIURA T. Overview of the radiometric and biophysical performance of the MODIS vegetation indices. Remote Sensing of Environment, 2002, 83(1-2):195-213. doi: 10.1016/S0034-4257(02)00096-2
[28]	XIAO X, BOLES S, LIU J. Mapping paddy rice agriculture in Southern China using multi-temporal MODIS images. Remote Sensing of Environment, 2005, 95(4):480-492. doi: 10.1016/j.rse.2004.12.009
[29]	XU H. Modification of normalized difference water index (NDWI) to enhance open water features in remotely sensed imagery. International Journal of Remote Sensing, 2006, 27(14):3025-3033. doi: 10.1080/01431160600589179
[30]	WANG X, XIAO X, ZOU Z, et al. Mapping coastal wetlands of China using time series Landsat images in 2018 and Google Earth Engine. ISPRS Journal of Photogrammetry and Remote Sensing, 2020, 163:312-326. doi: 10.1016/j.isprsjprs.2020.03.014
[31]	张长宽, 龚政, 陈永平, 等. 潮滩演变研究进展及前沿问题. 第十八届中国海洋(岸)工程学术讨论会论文集(下), 2017: 759-766.
	[ZHANG C K, GONG Z, CHEN Y P, et al. Research progress and frontier issues of tidal flat evolution. Proceedings of the 18th China Ocean (Coast) Engineering Symposium, 2017: 759-766.]
[32]	ZOU Z, XIAO X, DONG J, et al. Divergent trends of open-surface water body area in the contiguous United States from 1984 to 2016. Proceedings of the National Academy of Sciences, 2018, 115(15):3810-3815.

时段/年	象山县			三门县			宁海县			合计
时段/年	植被	潮滩	海水	植被	潮滩	海水	植被	潮滩	海水	合计
1984—1986	8.94	7.21	2.78	24.28	15.09	3.82	4.94	15.09	1.16	83.31
1987—1989	7.08	8.58	2.33	21.45	15.26	3.82	2.90	15.26	1.02	77.7
1990—1992	7.30	7.60	3.14	22.55	14.25	3.90	3.42	14.25	1.02	77.43
1993—1995	5.34	6.10	1.87	21.51	10.88	4.07	2.99	10.88	0.71	64.35
1996—1998	5.09	5.94	1.88	23.95	8.20	3.51	3.14	8.20	0.57	60.48
1999—2001	4.12	5.53	1.83	18.94	12.49	4.57	2.74	12.49	0.57	63.28
2002—2004	3.14	4.23	2.46	11.35	13.02	10.84	2.29	13.02	0.97	61.32
2005—2007	3.30	4.39	1.76	8.86	4.53	6.79	2.58	4.53	1.03	37.77
2008—2010	3.10	3.60	1.72	5.57	2.53	2.91	2.88	2.53	0.85	25.69
2011—2013	3.12	3.24	1.56	5.10	2.44	3.18	2.15	2.44	0.95	24.18
2014—2016	3.70	2.95	1.37	5.48	1.90	2.79	3.08	1.90	0.98	24.15
2017—2019	4.08	2.86	1.20	5.81	1.67	2.65	2.77	1.67	0.60	23.31

年份	主要内容	文件名称或依据	来源或主管单位
2002	全国海洋功能区划,围填海需论证	2002年9月10日	原国家海洋局
2008	改进围填海造地工程平面设计	国海管字[2008]37号	原国家海洋局
2009	加强围填海规划计划管理	发改地区[2009]2976号	国家发展改革委、原国家海洋局
2010	加强围填海造地管理	国土资发[2010]219号	原国土资源部、原国家海洋局
2011	规范围填海秩序,强化围填海计划管理	发改地区[2011]2929号	国家发展改革委、原国家海洋局
2011	财政项目指南需研究围填海环境影响	农办财[2011]130号	农业部办公厅
2012	无居民海岛周边海域开展围填海	国海办字[2012]666号	原国家海洋局
2016	探索海岛与海岛周边海域围填海审批衔接等制度	国海岛字[2016]691号	原国家海洋局
2016	加强杭州湾、象山港、三门湾、台州湾等保护和开发	浙江省政协十一届十八次常委会会议专题协商	浙江省政协
2017	围填海工程生态建设技术指南	国海规范[2017]13号	原国家海洋局
2017	明确提出谋划实施大湾区建设行动纲要,大力发展湾区经济	浙江省十四次党代会报告	浙江省十四次党代会
2018	加强滨海湿地保护,严格管控围填海活动	国发[2018]24号	国务院
2018	明确围填海历史遗留问题处理有关要求	自然资规[2018]7号	自然资源部
2018	围填海项目生态评估技术指南	自然资办发[2018]36号	自然资源部办公厅
2019	除国家重大项目外,全面禁止围填海	党的十九届四中全会报告	党的十九届四中全会
