黄河流域绿色创新效率空间格局演化及其影响因素

doi:10.31497/zrzyxb.20220306

摘要/Abstract

摘要：

绿色创新作为培育经济增长新动能,是促进黄河流域生态保护和高质量发展的重要动力。采用网络DEA模型测度2003—2018年黄河流域79市（州、盟）绿色创新效率,进而运用核密度估计、重心—标准差椭圆分析效率的空间演化规律,采用空间计量模型探究其影响因素。结果表明：（1）黄河流域绿色创新效率水平较低,但表现为波动上升的时间趋势;（2）绿色创新效率具有显著的空间非均衡性,呈现出“下游>上游>中游”的空间分异格局,效率重心整体向东南方向移动,表现出南北方向相对稳定、东西方向集聚发展的趋势;（3）黄河流域绿色创新效率存在正向的空间溢出效应,人均收入、产业结构、师资力量、外资利用和环境规制是影响绿色创新效率的重要因素。

关键词: 绿色创新效率, 空间格局演化, 网络DEA模型, 空间计量分析, 黄河流域

Abstract:

As a new driving force of economic growth, green innovation is an important engine for promoting ecological protection and high-quality development in the Yellow River Basin. This paper uses the network DEA model containing unexpected output to measure the green innovation efficiency of 79 prefecture-level cities (prefectures and leagues) from 2003-2018. Furthermore, it adopts the kernel density estimation and center of gravity-center model and standard deviation ellipse model to examine the spatio-temporal evolution pattern of green innovation efficiency, and explore the influencing factors. The results show that: (1) The green innovation efficiency level in the Yellow River Basin is relatively low, but the efficiency of green innovation, the efficiency of science and technology research and development and the transformation efficiency of innovation achievements show a significant upward trend as the elapse of time. (2) There are significant spatial imbalance of green innovation efficiency in the study area. The efficiency of green innovation in the lower reaches of the basin is higher than that of the upper reaches, and the efficiency of green innovation of the upper reaches is higher than that of the middle reaches. The efficiency center of green innovation is gradually moving towards the southeast, and the efficiency of the middle and lower reaches of the basin is significantly improved. The standard deviation ellipse distribution is dominated by northwest-southeast direction, showing a relatively stable north-south direction and a trend of east-west development. The coverage area of the ellipse declines, and the differences of green innovation among regions are narrowing. (3) The efficiency of green innovation in the basin has a positive spatial spillover effect. Increasing per capita income, increasing teacher input, and strengthening environmental regulations improve the efficiency of green innovation in the entire river basin and the upper, middle and lower reaches. The positive effects of industrial structure and the actual utilization of foreign capital on the green innovation efficiency of the whole basin are not consistent with those of each sub-basin. We should take efficient measures according to the actual development of various regions, such as giving full play to the green innovation driving role of producer services, and opening wider to the outside world.

Key words: green innovation efficiency, spatial pattern evolution, network DEA model, spatial measurement analysis, Yellow River Basin

许玉洁, 刘曙光. 黄河流域绿色创新效率空间格局演化及其影响因素[J]. 自然资源学报, 2022, 37(3): 627-644.

XU Yu-jie, LIU Shu-guang. Spatial pattern evolution and influencing factors of green innovation efficiency in the Yellow River Basin[J]. JOURNAL OF NATURAL RESOURCES, 2022, 37(3): 627-644.

图/表 10

表1

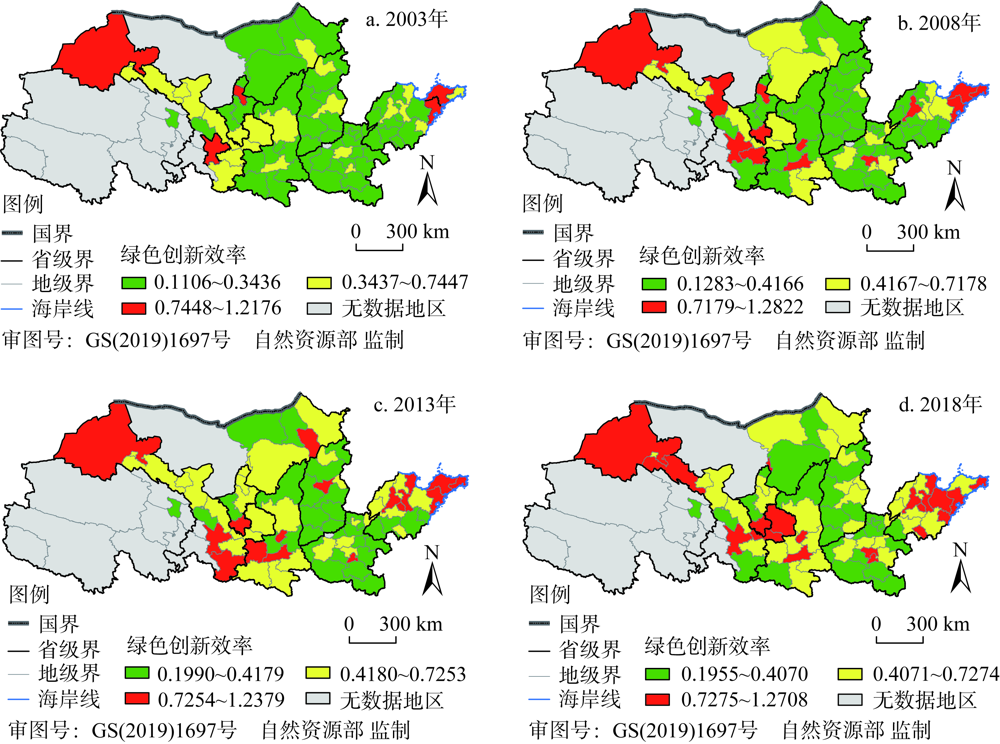

图1

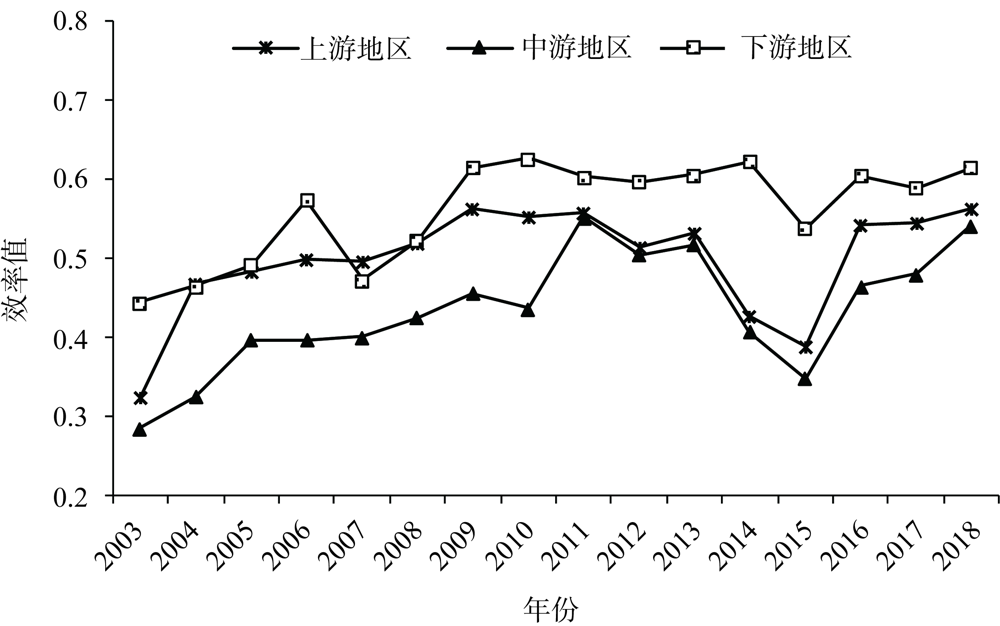

图2

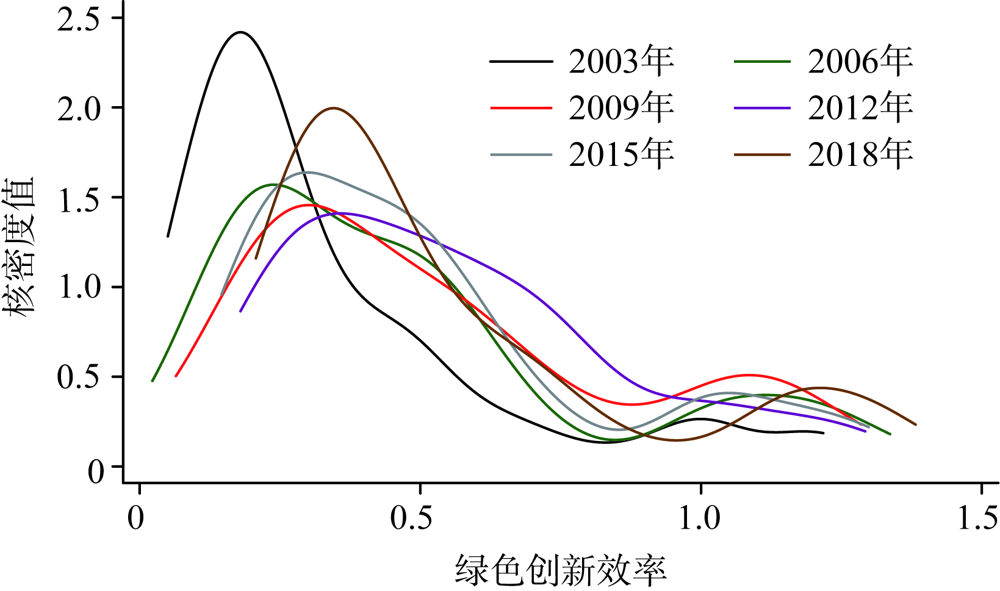

图3

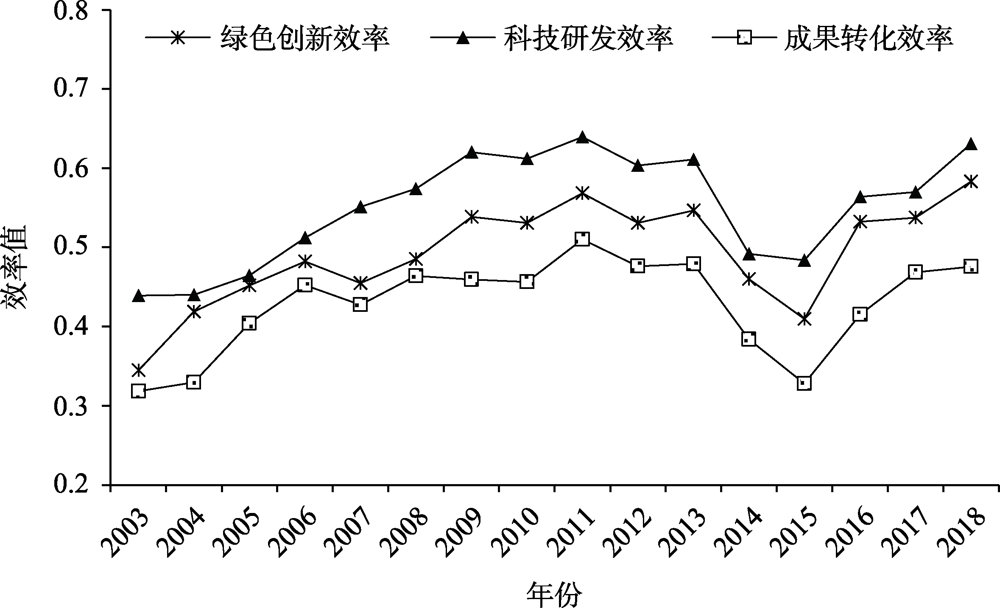

图4

表2

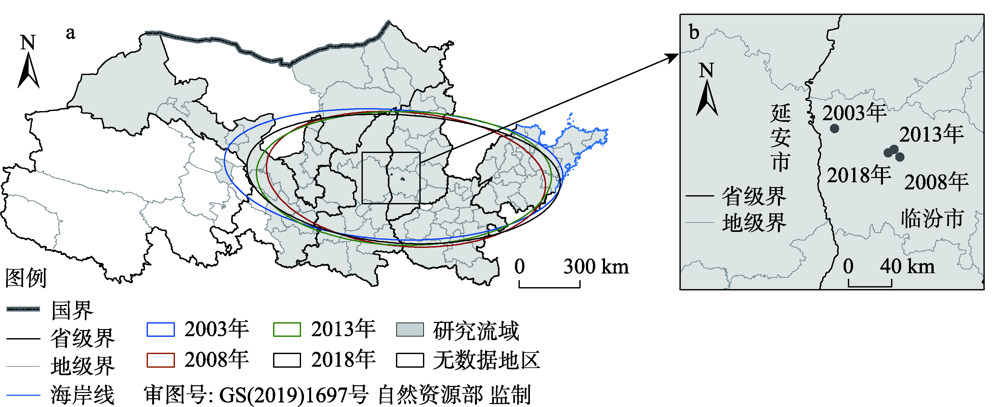

图5

表3

黄河流域绿色创新效率影响因素

影响层面	影响因素	变量简称	衡量指标	单位
经济发展水平	人均收入水平	$PGDP$	人均GDP	元
	产业结构	$INDU$	第二产业产值/GDP	%
	产业结构	$SERV$	第三产业产值/GDP	%
科技运行环境	金融发展水平	$FINA$	金融机构存贷款余额	元
	对外开放水平	$ROAD$	人均城市道路面积	m²
	对外开放水平	$WZ$	实际利用外资	元
政府制度导向	师资力量	$TEAC$	普通高等学院专任教师数	人
政府制度导向	环境规制强度	$ENVI$	(工业固体废物综合利用率+污水集中处理率)/2	%

表3

表4

2003—2018年黄河流域绿色创新效率Moran's I检验结果

年份	$I$	$Z$	年份	$I$	$Z$
2003	0.048^***	4.037	2011	0.026^***	2.560
2004	0.027^***	2.604	2012	0.017^**	1.967
2005	0.010^*	1.478	2013	0.043^***	3.665
2006	0.054^***	4.399	2014	0.068^***	5.337
2007	0.024^***	2.439	2015	0.042^***	3.599
2008	0.026^***	2.572	2016	0.013^**	1.670
2009	0.026^***	2.527	2017	0.010^*	1.499
2010	0.025^***	2.457	2018	0.034^***	3.050

表4

表5

绿色创新效率影响因素空间面板回归结果

解释变量	全流域	上游	中游	下游
$PGDP$	0.361^*** (0.049)	0.262^*** (0.054)	0.371^*** (0.012)	0.503^*** (0.039)
$INDU$	-0.006^*** (0.001)	-0.010^*** (0.002)	-0.004^** (0.002)	0.009^** (0.005)
$SERV$	0.004^** (0.002)	0.007^*** (0.002)	0.001^** (0.001)	-0.003^* (0.002)
$FINA$	-0.005 (0.001)	-0.015 (0.010)	-0.018 (0.015)	0.029 (0.037)
$ROAD$	-0.001 (0.001)	0.003 (0.002)	-0.013 (0.014)	0.004 (0.003)
$WZ$	0.018^** (0.009)	0.013^* (0.007)	0.014^** (0.007)	-0.016^*** (0.004)
$TECH$	0.026^** (0.013)	0.137^** (0.057)	0.075^*** (0.020)	0.019^** (0.009)
$ENVI$	0.002^*** (0.000)	0.004^*** (0.001)	0.003^* (0.002)	0.001^** (0.001)
$ρ$	0.452^*** (0.083)	-0.242^** (0.115)	0.368^*** (0.107)	0.417^*** (0.095)
$Sigma_2 e$	0.038^*** (0.002)	0.052^*** (0.004)	0.032^*** (0.002)	0.040^*** (0.003)
$R 2$	0.31	0.28	0.25	0.34

表5

参考文献 50

[1]	习近平. 决胜全面建成小康社会夺取新时代中国特色社会主义伟大胜利: 在中国共产党第十九次全国代表大会上的报告. 北京: 人民出版社, 2017: 58-59.
	[ XI J P. To Finish Building a Moderately Prosperous Society in all Aspects and Win the Great Victory of Socialism with Chinese Characteristics for the New Era: Report at the 19th National Congress of the Communist Party of China. Beijing: People's Publishing House, 2017: 58-59.]
[2]	陈才, 刘曙光. 区域经济地理学方法论建设初探. 地理研究, 1999,18(1):2-7.
	[ CHEN C, LIU S G. An initial approach to the construction of methodology in regional economic geography. Geographical Research, 1999,18(1):2-7.]
[3]	SEMAN N A A, GOVINDAN K, MARDANI A, et al. The mediating effect of green innovation on the relationship between green supply chain management and environmental performance. Cleaner Production, 2019,229:115-127. doi: 10.1016/j.jclepro.2019.03.211
[4]	BRUNTLAND G H. Our common future: Report of the world commission of environment and development. International Affairs, 1987,64(1):126.
[5]	NORDHAUS W D. To slow or not to slow: The economics of the greenhouse effect. Economic Journal, 1991,101(407):920-937. doi: 10.2307/2233864
[6]	ROMER P M. Increasing returns and long-run growth. The Journal of Political Economy, 1986,94(5):1002-1037. doi: 10.1086/261420
[7]	COOKE P. Regional innovation systems: Development opportunities from the "green turn". Technology Analysis & Strategic Management, 2010,22(7):831-844.
[8]	HORBACH J. Determinants of environmental innovation: New evidence from German panel data sources. Research Policy, 2006,37(1):163-173. doi: 10.1016/j.respol.2007.08.006
[9]	SCHIEDERIG T, TIETZE F, HERSTATT C. Green innovation in technology and innovation management: An exploratory literature review. R & D Management, 2012,42(2):180-192.
[10]	GUPTA H, BARUA M K. Supplier selection among SMEs on the basis of their green innovation ability using BWM and fuzzy TOPSIS. Journal of Cleaner Production, 2017,152:242-258. doi: 10.1016/j.jclepro.2017.03.125
[11]	GERRARD J, KANDLIKAR M. Is European end-of-life vehicle legislation living up to expectations? Assessing the impact of the ELV directive on "green" innovation and vehicle recovery. Journal of Cleaner Production, 2007,15(1):17-27. doi: 10.1016/j.jclepro.2005.06.004
[12]	龚建立, 王飞绒, 王存波. 政府在中小企业绿色技术创新中的地位和作用. 中国人口·资源与环境, 2002,12(1):114-117.
	[ GONG J L, WANG F R, WANG C B. The position and role of government in environment in technology innovation. China Population, Resources and Environment, 2002,12(1):114-117.]
[13]	李旭. 绿色创新相关研究的梳理与展望. 研究与发展管理, 2015,27(2):1-11.
	[ LI X. Analysis and outlook of the related researches on green innovation. R&D Management, 2015,27(2):1-11.]
[14]	丁堃. 论绿色创新系统的结构和功能. 科技进步与对策, 2009,26(15):116-119.
	[ DING K. On the structure and function of green innovation system. Science &Technology Progress and Policy, 2009,26(15):116-119.]
[15]	冯志军. 中国工业企业绿色创新效率研究. 中国科技论坛, 2013, (2):82-88.
	[ FENG Z J. Research on green innovation efficiency of Chinese industrial enterprises. Forum on Science and Technology in China, 2013, (2):82-88.]
[16]	肖黎明, 张仙鹏. 强可持续理念下绿色创新效率与生态福利绩效耦合协调的时空特征. 自然资源学报, 2019,34(2):312-324.
	[ XIAO L M, ZHANG X P. Spatio-temporal characteristics of coupling coordination between green innovation efficiency and ecological welfare performance under the concept of strong sustainability. Journal of Natural Resources, 2019,34(2):312-324.]
[17]	曹霞, 于娟. 绿色低碳视角下中国区域创新效率研究. 中国人口·资源与环境, 2015,25(5):10-19.
	[ CAO X, YU J. Regional innovation efficiency in China from the green low-carbon perspective. China Population, Resources and Environment, 2015,25(5):10-19.]
[18]	康鹏辉, 茹少峰. 环境规制的绿色创新双边效应. 中国人口·资源与环境, 2020,30(10):93-104.
	[ KANG P H, RU S F. Bilateral effects of environmental regulation on green innovation. China Population, Resources and Environment, 2020,30(10):93-104.]
[19]	龚新蜀, 李梦洁, 张洪振. OFDI是否提升了中国的工业绿色创新效率: 基于集聚经济效应的实证研究. 国际贸易问题, 2017, (11):127-137.
	[ GONG X S, LI M J, ZHANG H Z. Does OFDI improve the efficiency of industrial green innovation in China: An empirical study based on the effect of agglomeration economy. Journal of International Trade, 2017, (11):127-137.]
[20]	邝嫦娥, 文泽宙, 彭文斌. 影子经济影响绿色创新效率的门槛效应. 经济地理, 2019,39(7):184-193.
	[ KUANG C E, WEN Z Z, PENG W B. The threshold effect of shadow economy on green innovation efficiency. Economic Geography, 2019,39(7):184-193.]
[21]	汪芳, 苗长虹, 刘峰贵, 等. 黄河流域人居环境的地方性与适应性: 挑战和机遇. 自然资源学报, 2021,36(1):1-26.
	[ WANG F, MIAO C H, LIU F G, et al. The locality and adaptability of human settlements in the Yellow River Basin: Challenges and opportunities. Journal of Natural Resources, 2021,36(1):1-26. ]
[22]	汪芳, 苗长虹. 系统性、整体性与协同性: 黄河流域高质量发展的思维与策略: 写在专辑刊发之后的话. 自然资源学报, 2021,36(1):270-272.
	[ WANG F, MIAO C H. Systematization, integrity and coordination: Thinking and strategy of high quality development in the Yellow River Basin. Journal of Natural Resources, 2021,36(1):270-272.]
[23]	刘曙光, 许玉洁, 王嘉奕. 江河流域经济系统开放与可持续发展关系: 国际经典案例及对黄河流域高质量发展的启示. 资源科学, 2020,42(3):433-445.
	[ LIU S G, XU Y J, WANG J Y. Relationship between river basin economic system opening-up and sustainable development: International experiences and implications for the Yellow River Basin high-quality development. Resources Science, 2020,42(3):433-445.]
[24]	金凤君. 黄河流域生态保护与高质量发展的协调推进策略. 改革, 2019, (11):33-39.
	[ JIN F J. Coordinated promotion strategy of ecological protection and high-quality development in the Yellow River Basin. Reform, 2019, (11):33-39.]
[25]	杨永春, 穆焱杰, 张薇. 黄河流域高质量发展的基本条件与核心策略. 资源科学, 2020,42(3):409-423.
	[ YANG Y C, MU Y J, ZHANG W. Basic conditions and core strategies of high- quality development in the Yellow River Basin. Resources Science, 2020,42(3):409-423.]
[26]	任保平, 张倩. 黄河流域高质量发展的战略设计及其支撑体系构建. 改革, 2019, (10):26-34.
	[ REN B P, ZHANG Q. Strategic design and supporting system construction of high quality development in the Yellow River Basin. Reform, 2019, (10):26-34.]
[27]	刘贝贝, 左其亭, 刁艺璇. 绿色科技创新在黄河流域生态保护和高质量发展中的价值体现及实现路径. 资源科学, 2021,43(2):423-432.
	[ LIU B B, ZUO Q T, DIAO Y X. The value and pathways of green technology innovation for the ecological conservation and high-quality development of the Yellow River Basin. Resources Science, 2021,43(2):423-432.]
[28]	罗巍, 杨玄酯, 杨永芳. 面向高质量发展的黄河流域科技创新空间极化效应演化研究. 科技进步与对策, 2020,37(18):44-51.
	[ LUO W, YANG X Z, YANG Y F. Research on the evolution of spatial polarization effect of scientific and technological innovation in the Yellow River Basin for high quality development. Science & Technology Progress and Policy, 2020,37(18):44-51.]
[29]	郭付友, 佟连军, 仇方道, 等. 黄河流域生态经济走廊绿色发展时空分异特征与影响因素识别. 地理学报, 2021,76(3):726-739. doi: 10.11821/dlxb202103016
	[ GUO F Y, TONG L J, QIU F D, et al. Spatio-temporal differentiation characteristics and influencing factors of green development in the eco-economic corridor of the Yellow River Basin. Acta Geographica Sincia, 2021,76(3):726-739.]
[30]	邓洪波, 陆林. 基于DEA模型的安徽省城市旅游效率研究. 自然资源学报, 2014,29(2):313-323.
	[ DENG H B, LU L. Study on urban tourism efficiency of Anhui province based on DEA model. Journal of Natural Resources, 2014,29(2):313-323.]
[31]	CHARNES A, COOPER W W, RHODES E. Measuring the efficiency of decision making units. European Journal of Operational Research, 1978,2(6):429-444. doi: 10.1016/0377-2217(78)90138-8
[32]	FARREL M J. The measurement of productive efficiency. Journal of Royal Statistical Society, 1957,120:253-281.
[33]	BANKER R D, CHARNES A, COOPER W W. Some models for estimating technical and scale inefficiencies in data envelopment analysis. Management Science, 1984,30(9):1078-1092. doi: 10.1287/mnsc.30.9.1078
[34]	FÄRE R, GROSSKOP F S. Network DEA. Socio-Economic Planning Sciences, 2000,34(1):35-49. doi: 10.1016/S0038-0121(99)00012-9
[35]	TONE K, TSUTSUI M. Network DEA: A slacks-based measure approach. European Journal of Operational Research, 2009,197(1):243-252. doi: 10.1016/j.ejor.2008.05.027
[36]	许瑶, 纪建悦, 许玉洁. 中国养殖海域利用效率空间非均衡格局及成因. 资源科学, 2020,42(11):2158-2169.
	[ XU Y, JI J Y, XU Y J. Spatial disequilibrium of mariculture areas utilization efficiency in China and causes. Resources Science, 2020,42(11):2158-2169.]
[37]	金巍, 刘双双, 张可, 等. 农业生产效率对农业用水量的影响. 自然资源学报, 2018,33(8):1326-1339.
	[ JIN W, LIU S S, ZHANG K, et al. Influence of agricultural production efficiency on agricultural water consumption. Journal of Natural Resources, 2018,33(8):1326-1339.]
[38]	LEFEVER D W. Measuring geographic concentration by means of the standard deviational ellipse. The American Journal of Sociology, 1926,32(1):88-94. doi: 10.1086/214027
[39]	潘越, 翁钢民, 李聪慧, 等. 基于D-S证据理论的“丝绸之路旅游带”5A景区区位优势度测评. 自然资源学报, 2020,35(2):297-312.
	[ PAN Y, WENG G M, LI C H, et al. Evaluation on location advantages of 5A-Grade attractions in Silk Road Travel Belt based on the D-S evidence theory. Journal of Natural Resources, 2020,35(2):297-312.]
[40]	白俊红, 卞元超. 要素市场扭曲与中国创新生产的效率损失. 中国工业经济, 2016, (11):39-55.
	[ BAI J H, BIAN Y C. Factor market distortion and the efficiency losses of chinese innovative production. China Industrial Economics, 2016, (11):39-55.]
[41]	杨树旺, 吴婷, 李梓博. 长江经济带绿色创新效率的时空分异及影响因素研究. 宏观经济研究, 2018, (6):107-117, 132.
	[ YANG S W, WU T, LI Z B. Research on the spatial and temporal differentiation and influencing factors of green innovation efficiency in Yangtze River Economic Belt. Macroeconomics, 2018, (6):107-117, 132.]
[42]	彭文斌, 文泽宙, 邝嫦娥. 中国城市绿色创新空间格局及其影响因素. 广东财经大学学报, 2019,34(1):25-37.
	[ PENG W B, WEN Z Z, KUANG C E. The spatial pattern and influencing factors of green innovation. Journal of Guangdong University of Finance & Economics, 2019,34(1):25-37.]
[43]	庞瑞芝, 王亮. 服务业发展是绿色的吗? 基于服务业环境全要素效率分析. 产业经济研究, 2016, (4):18-28.
	[ PANG R Z, WANG L. Is the development of Chinese service industry definitely green? Based on analysis of environmental total factor efficiency of service industry. Industrial Economics Research, 2016, (4):18-28.]
[44]	李诗琪, 杨晨. 金融发展对绿色创新效率的影响研究. 江西师范大学学报: 哲学社会科学版, 2018,51(6):84-92.
	[ LI S Q, YANG C. On the influences of financial development on green innovation efficiency. Journal of Jiangxi Normal University: Philosophy and Social Sciences Edition, 2018,51(6):84-92.]
[45]	周锐波, 刘叶子, 杨卓文. 中国城市创新能力的时空演化及溢出效应. 经济地理, 2019,39(4):85-92.
	[ ZHOU R B, LIU Y Z, YANG Z W. Spatial-temporal evolution and knowledge spillovers of urban innovation in China. Economic Geography, 2019,39(4):85-92.]
[46]	刘和东. 中国区域研发效率及其影响因素研究: 基于随机前沿函数的实证分析. 科学学研究, 2011,9(4):548-556.
	[ LIU H D. Research on regional R&D efficiency and its influencing factors: Empirical analysis based on stochastic frontier function. Studies in Science of Science, 2011,9(4):548-556.]
[47]	PORTER M E, LINDE C V D. Toward a New conception of the environment-competitiveness relationship. Journal of Economic Perspectives, 1995,9(4):97-118. doi: 10.1257/jep.9.4.97
[48]	曾艺, 韩峰, 刘俊峰. 生产性服务业集聚提升城市经济增长质量了吗? 数量经济技术经济研究, 2019,36(5):83-100.
	[ ZENG Y, HAN F, LIU J F. Does the agglomeration of producer services improve the quality of urban economic growth?. The Journal of Quantitative & Technical Economics, 2019,36(5):83-100.]
[49]	康志勇. 金融错配阻碍了中国本土企业创新吗? 研究与发展管理, 2014,26(5):63-72.
	[ KANG Z Y. Does financial misallocation block Chinese local enterprises' innovation?. R&D Management, 2014,26(5):63-72.]
[50]	高良谋, 马文甲. 开放式创新: 内涵、框架与中国情境. 管理世界, 2014, (6):157-169.
	[ GAO L M, MA W J. Open innovation: Connotation, framework and Chinese context. Management World, 2014, (6):157-169.]

阶段	类别	具体指标	指标名称	单位
第一阶段	投入指标	资金投入	科学技术支出	万元
		资金投入	教育支出	万元
		劳动投入	科技服务人员	人
		劳动投入	普通高等学校在校学生	人
		资/能源投入	全社会用电量	万kW・h
		资/能源投入	供水总量	万t
	中间指标	创新产出（投入）	发明专利	分
			实用新型	分
			外观专利	分
第二阶段	产出指标	经济产出	地区生产总值	万元
		环境产出	绿地面积	hm²
			工业废水排放量	万t
			工业二氧化硫排放量	t
			工业烟（粉）尘排放量	t

年份	X轴标准差/km	Y轴标准差/km	方向角/(°)	重心坐标X	重心坐标Y
2003	9.29	2.89	94.95	110.64°E	36.62°N
2008	7.63	2.98	96.26	111.33°E	36.38°N
2013	8.07	2.97	93.36	111.24°E	36.42°N
2018	8.56	2.85	95.60	111.18°E	36.39°N
