中国自然资源生态服务重要性评价与空间格局分析

doi:10.31497/zrzyxb.20220102

摘要/Abstract

摘要：

自然资源是保障经济社会发展的重要物质基础,同时又发挥了重要的生态服务功能。选取水源涵养、水土保持、防风固沙、生物多样性维护和产品提供五类生态服务,采用NPP定量指标法识别中国自然资源生态服务的重要区域,并进一步分析空间格局特征。结果表明：中国自然资源生态服务极重要和高度重要区约占总面积的1/4,以东北山地、江南地区、西南地区和青藏高原东部等水源涵养能力强、水土保持较好、防风固沙水平高、生物多样性较丰富的地区为主;不同类型自然资源的生态服务重要性差异显著,耕地资源的产品提供服务重要性显著,林地和草地资源的水源涵养、水土保持、防风固沙及生物多样性维护服务重要性均较显著,水域主要提供水源涵养服务;各生态服务重要性在空间上均显著集聚,自然资源综合生态服务的热点区主要分布在大兴安岭、长白山、浙闽山地、武夷山、南岭山地、秦岭山地、滇西南地区和藏东南山地等;自然资源综合生态服务重要性的空间分布与农业自然带/亚带呈现较高的一致性,热带和温带地区的重要性级别较高。研究结果可为区域自然资源管理及生态保护修复提供决策依据。

关键词: 自然资源, 生态服务重要性, NPP, 空间格局, 中国

Abstract:

Natural resources are essential for ensuring economic and social development, and also provide important ecosystem services. This study selected five types of ecosystem services, including water conservation, soil erosion prevention, windbreak and sand fixation, biodiversity maintenance and product provision, and used NPP-associated index to determine the importance of natural resource ecosystem services in China. The spatial pattern of the importance of ecosystem services were then analyzed using spatial statistics methods. The results showed that the areas with extreme and high importance of natural resource ecosystem services are mainly distributed in the mountainous areas of Northeast China, the Southern and Southwestern parts of China, and the Eastern Qinghai-Tibet Plateau, accounting for about 25% of the country's total area. These areas were often characterized by high water conservation capacity, strong capability for soil erosion prevention, windbreak and sand fixation, and rich biodiversity. There were significant differences in the importance of ecosystem services among different natural resource types. Cultivated land resources played an important role in providing products; forest and grassland resources dominated the ecosystem services of water conservation, soil erosion prevention, windbreak and sand fixation, and biodiversity maintenance; water areas mainly provided the service of water conservation. The importance of ecosystem services showed a significantly clustered pattern. The hot spots of natural resource integrated ecosystem service are mainly distributed in the Da Hinggan Mountains, Changbai Mountains, Zhejiang-Fujian Mountains, Wuyi Mountains, Nanling Mountains, Qinling Mountains, Southwestern Yunnan, and Southeastern Tibet. The spatial distribution of the importance of integrated ecosystem service in China is highly consistent with the natural zones and subzones of agriculture, with higher level of importance in tropical and temperate regions. Our research provides sound decision-making support for the exploitation and management of natural resources, and is also useful for ecological protection and restoration.

Key words: natural resource, importance of ecosystem services, NPP, spatial pattern, China

吴英迪, 蒙吉军. 中国自然资源生态服务重要性评价与空间格局分析[J]. 自然资源学报, 2022, 37(1): 17-33.

WU Ying-di, MENG Ji-jun. Quantifying the spatial pattern for the importance of natural resource ecosystem services in China[J]. JOURNAL OF NATURAL RESOURCES, 2022, 37(1): 17-33.

图/表 8

表1

图1

表2

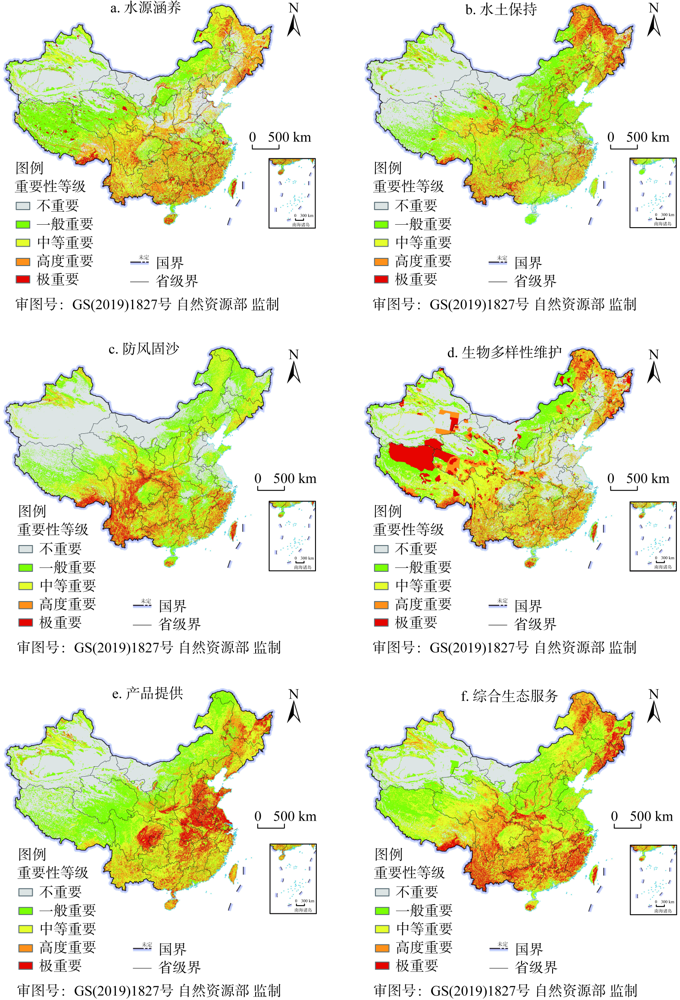

图2

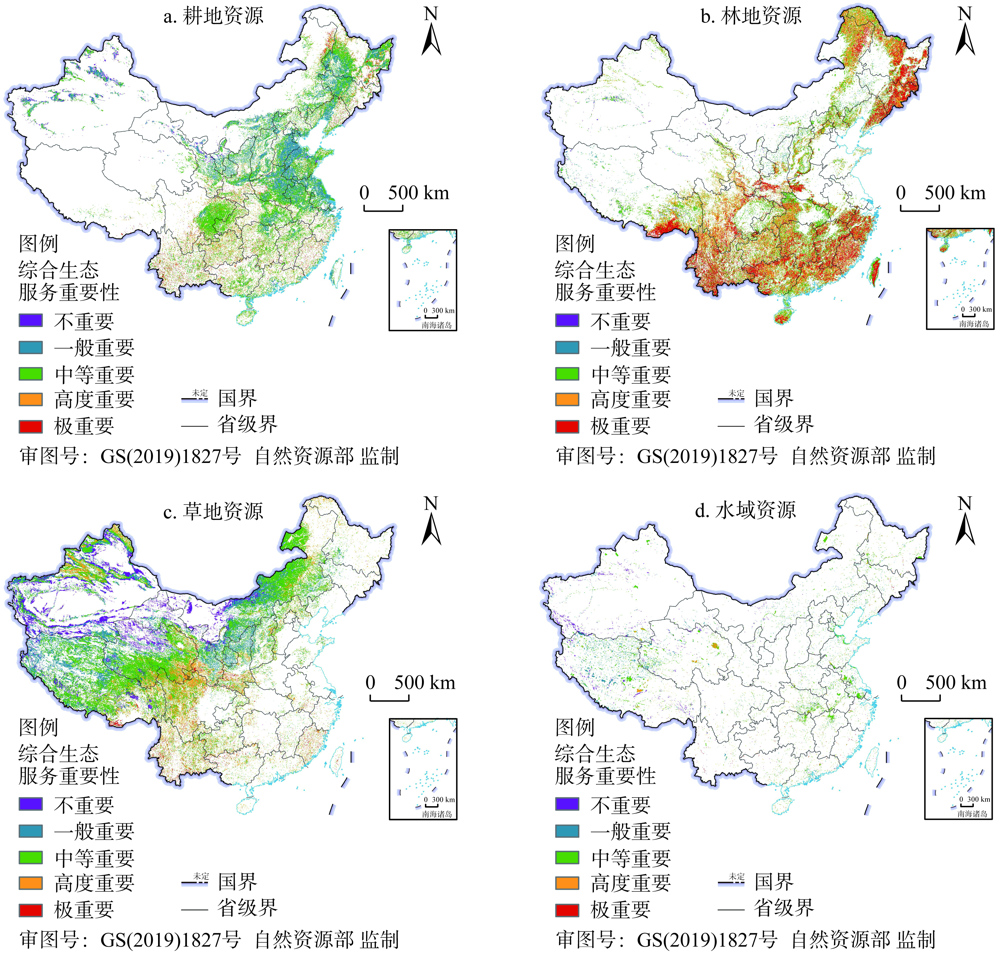

图3

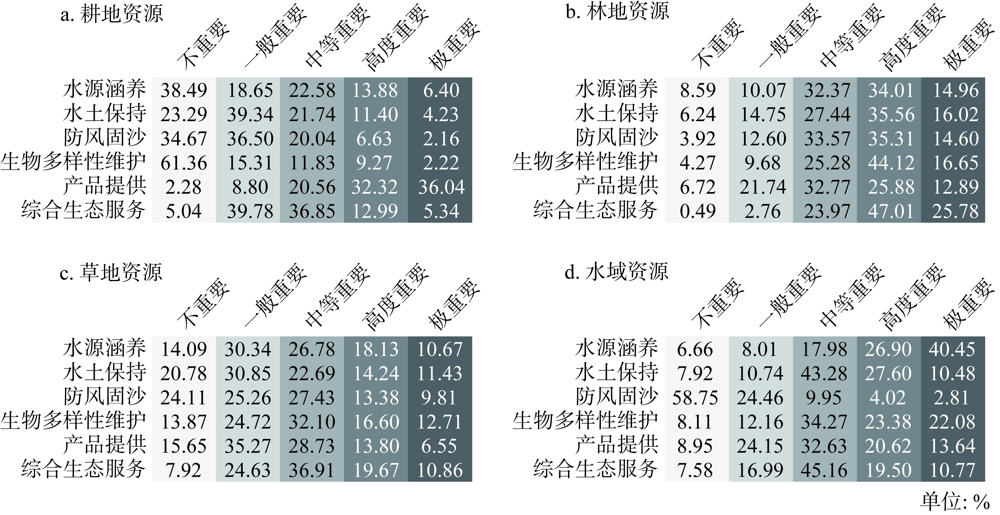

表3

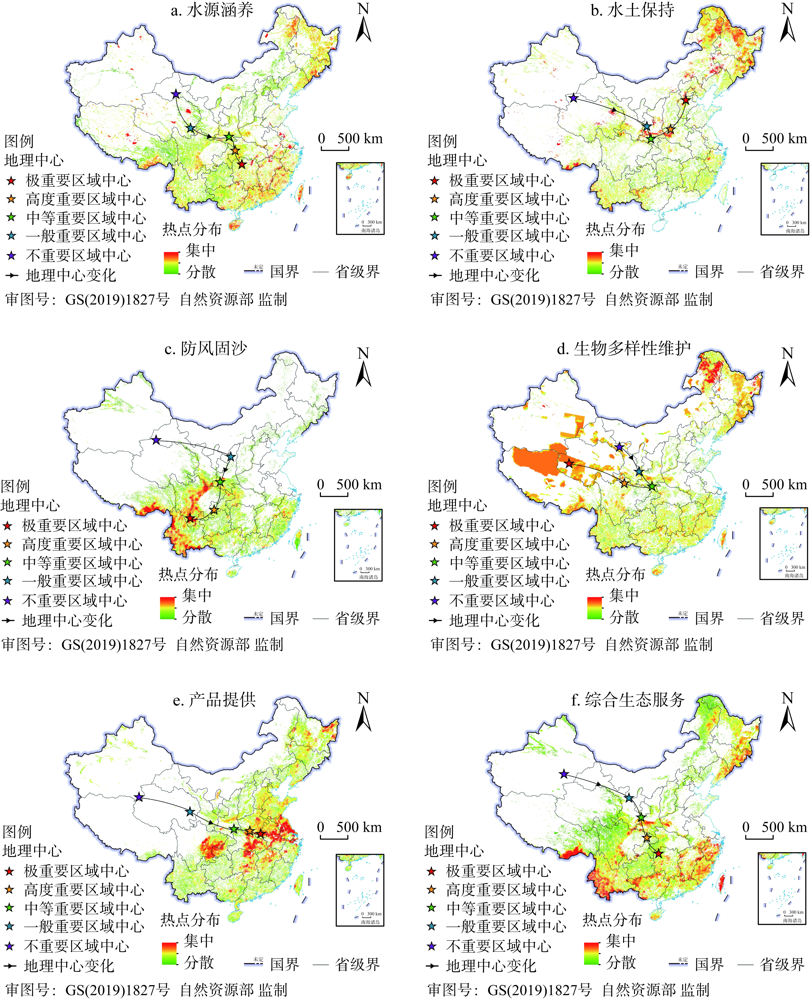

图4

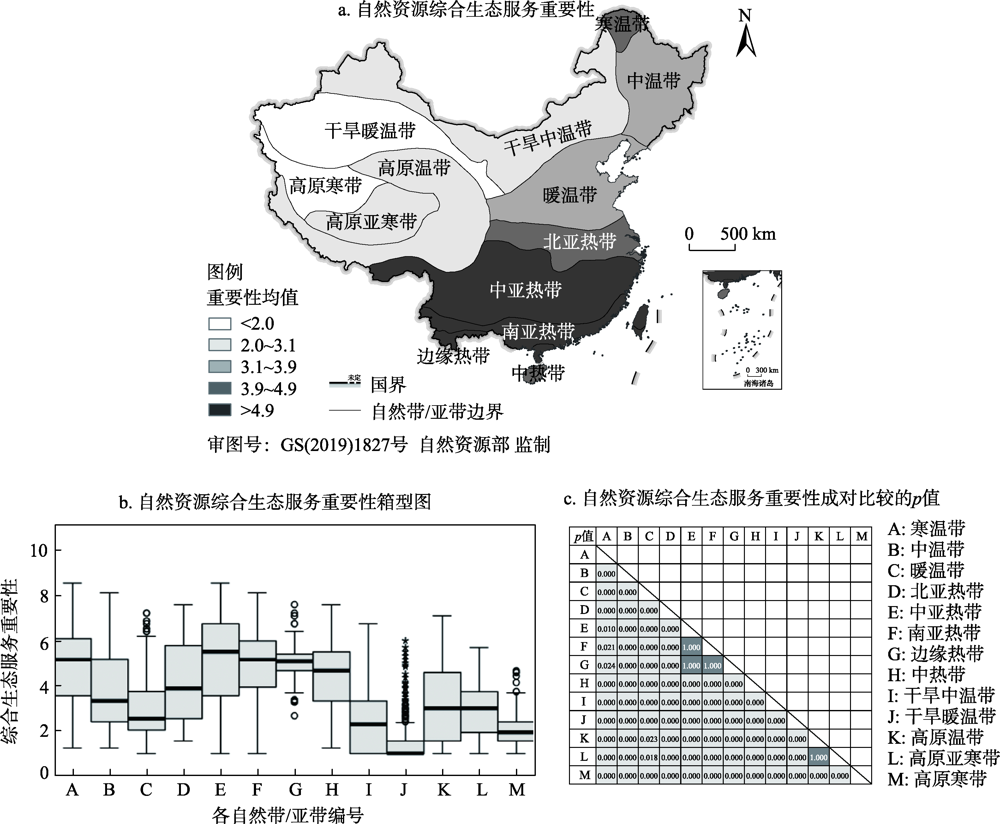

图5

参考文献 44

[1]	沈镭, 张红丽, 钟帅, 等. 新时代下中国自然资源安全的战略思考. 自然资源学报, 2018, 33(5):721-734.
	[ SHEN L, ZHANG H L, ZHONG S, et al. Strategic thinking on the security of natural resources of China in the New Era. Journal of Natural Resources, 2018, 33(5):721-734.]
[2]	沈镭, 钟帅, 胡纾寒. 新时代中国自然资源研究的机遇与挑战. 自然资源学报, 2020, 35(8):1773-1788.
	[ SHEN L, ZHONG S, HU S H. Opportunities and challenges of natural resources research of China in the New Era. Journal of Natural Resources, 2020, 35(8):1773-1788.]
[3]	WEI F, ZHAN X. Delineating urban growth boundaries with ecosystem service evaluation. Sustainability, 2019, 11(19):1-18. doi: 10.3390/su11010001
[4]	傅伯杰, 周国逸, 白永飞, 等. 中国主要陆地生态系统服务功能与生态安全. 地球科学进展, 2009, 24(6):571-576.
	[ FU B J, ZHOU G Y, BAI Y F, et al. The main terrestrial ecosystem services and ecological security in China. Advances in Earth Science, 2009, 24(6):571-576.]
[5]	谢花林, 李秀彬. 基于GIS的农村住区生态重要性空间评价及其分区管制: 以兴国县长冈乡为例. 生态学报, 2011, 31(1):230-238.
	[ XIE H L, LI X B. Spatial assessment and zoning regulations of ecological importance based on GIS for rural habitation in Changgang town, Xinguo county. Acta Ecologica Sinica, 2011, 31(1):230-238.]
[6]	XIAO Y, AN K, XIE G D, et al. Evaluation of ecosystem services provided by 10 typical rice paddies in China. Journal of Resources and Ecology, 2011, 2(4):328-337. doi: 10.3969/j.issn.1674-764x.2011.04.006
[7]	谢志坚, 贺亚琴, 徐昌旭. 紫云英—早稻—晚稻农田系统的生态功能服务价值评价. 自然资源学报, 2018, 33(5):735-746.
	[ XIE Z J, HE Y Q, XU C X. Appraisal on ecological services from Chinese milk vetch-early rice-late rice cropping ecosystem. Journal of Natural Resources, 2018, 33(5):735-746.]
[8]	肖强, 肖洋, 欧阳志云, 等. 重庆市森林生态系统服务功能价值评估. 生态学报, 2014, 34(1):216-223.
	[ XIAO Q, XIAO Y, OUYANG Z Y, et al. Value assessment of the function of the forest ecosystem services in Chongqing. Acta Ecologica Sinica, 2014, 34(1):216-223.]
[9]	GETZNER M, ISLAM M S. Ecosystem services of mangrove forests: Results of a meta-analysis of economic values. International Journal of Environmental Research and Public Health, 2020, 17(16):1-13. doi: 10.3390/ijerph17010001
[10]	赵苗苗, 赵海凤, 李仁强, 等. 青海省1998—2012年草地生态系统服务功能价值评估. 自然资源学报, 2017, 32(3):418-433.
	[ ZHAO M M, ZHAO H F, LI R Q, et al. Assessment on grassland ecosystem services in Qinghai province during 1998-2012. Journal of Natural Resources, 2017, 32(3):418-433.]
[11]	YANG Q, LIU G, GIANNETTI B F, et al. Emergy-based ecosystem services valuation and classification management applied to China's grasslands. Ecosystem Services, 2020, 42:101073, Doi: 10.1016/j.ecoser.2020.101073. doi: 10.1016/j.ecoser.2020.101073
[12]	李该霞, 宋蒙亚, 谢丽芳, 等. 江苏省水土保持功能的重要性评价. 水土保持通报, 2016, 36(1):236-241.
	[ LI G X, SONG M Y, XIE L F, et al. Importance evaluation of soil and water conservation function in Jiangsu province. Bulletin of Soil and Water Conservation, 2016, 36(1):236-241.]
[13]	LI P, OMANI N, CHAUBEY I, et al. Evaluation of drought implications on ecosystem services: Freshwater provisioning and food provisioning in the Upper Mississippi River Basin. International Journal of Environmental Research and Public Health, 2017, 14(5):1-23. doi: 10.3390/ijerph14010001
[14]	王雅, 蒙吉军. 黑河中游土地利用变化对生态系统服务的影响. 干旱区研究, 2017, 34(1):200-207.
	[ WANG Y, MENG J J. Effects of land use change on ecosystem services in the middle reaches of the Heihe River Basin. Arid Zone Research, 2017, 34(1):200-207.]
[15]	HUANG A, XU Y, SUN P, et al. Land use/land cover changes and its impact on ecosystem services in ecologically fragile zone: A case study of Zhangjiakou city, Hebei province, China. Ecological Indicators, 2019, 104(9):604-614. doi: 10.1016/j.ecolind.2019.05.027
[16]	陈涛, 叶有华, 孙芳芳, 等. 基于SPOT数据的深圳市生态系统服务功能重要性评价. 生态经济, 2018, 34(2):151-157.
	[ CHEN T, YE Y H, SUN F F, et al. Assessment on the importance of ecosystem service function in Shenzhen city based on SPOT data. Ecological Economy, 2018, 34(2):151-157.]
[17]	朱立晨, 王豪伟, 唐立娜. 闽三角区域生态系统服务重要性评价及其空间分布. 生态学报, 2018, 38(20):7254-7268.
	[ ZHU L C, WANG H W, TANG L N. Importance evaluation and spatial distribution analysis of ecosystem services in Min triangle area. Acta Ecologica Sinica, 2018, 38(20):7254-7268.]
[18]	尤南山, 蒙吉军. 基于生态敏感性和生态系统服务的黑河中游生态功能区划与生态系统管理. 中国沙漠, 2017, 37(1):186-197.
	[ YOU N S, MENG J J. Ecological functions regionalization and ecosystem management based on the ecological sensitivity and ecosystem service in the Middle Reaches of the Heihe River. Journal of Desert Research, 2017, 37(1):186-197.]
[19]	KUSI K K, KHATTABI A, MHAMMDI N, et al. Prospective evaluation of the impact of land use change on ecosystem services in the Ourika watershed, Morocco. Land Use Policy, 2020, 97:104796, Doi: 10.1016/j.landusepol.2020.104796. doi: 10.1016/j.landusepol.2020.104796
[20]	吕一河, 张立伟, 王江磊. 生态系统及其服务保护评估: 指标与方法. 应用生态学报, 2013, 5(5):1237-1243.
	[ LYU Y H, ZHANG L W, WANG J L. Assessment of ecosystem and its services conservation: Indicators and methods. Chinese Journal of Applied Ecology, 2013, 5(5):1237-1243.]
[21]	COSTANZA R, D'ARGE R, DE GROOT R, et al. The value of the world's ecosystem services and natural capital. Nature, 1997, 387(6630):253-260. doi: 10.1038/387253a0
[22]	凡非得, 罗俊, 王克林, 等. 桂西北喀斯特地区生态系统服务功能重要性评价与空间分析. 生态学杂志, 2011, 30(4):804-809.
	[ FAN F D, LUO J, WANG K L, et al. Assessment and spatial analysis of ecosystem service importance in karst area of Northwest Guangxi. Chinese Journal of Ecology, 2011, 30(4):804-809.]
[23]	EIGENBROD F, ARMSWORTH P R, ANDERSON B J, et al. Error propagation associated with benefits transfer-based mapping of ecosystem services. Biological Conservation, 2010, 143(11):2487-2493. doi: 10.1016/j.biocon.2010.06.015
[24]	JOHNSON K A, POLASKY S, NELSON E, et al. Uncertainty in ecosystem services valuation and implications for assessing land use tradeoffs: An agricultural case study in the Minnesota River Basin. Ecological Economics, 2012, 79:71-79. doi: 10.1016/j.ecolecon.2012.04.020
[25]	张路, 肖燚, 郑华, 等. 2010年中国生态系统服务空间数据集. 中国科学数据, 2018, 3(4):11-23.
	[ ZHANG L, XIAO Y, ZHENG H, et al. A spatial dataset of ecosystem services in China (2010). China Scientific Data, 2018, 3(4):11-23.]
[26]	徐新良. 中国陆地生态系统服务价值空间分布数据集. 中国科学院资源环境科学数据中心数据注册与出版系统, http://www.resdc.cn/DOI, 2018, Doi: 10.12078/2018060503. doi: 10.12078/2018060503
	[ XU X L. Spatial distribution data set of terrestrial ecosystem service value in China. Data Registration and Publishing System of the Resource and Environmental Science Data Center of the Chinese Academy of Sciences, http://www.resdc.cn/DOI, 2018, Doi: 10.12078/2018060503.] doi: 10.12078/2018060503
[27]	谢高地, 张彩霞, 张雷明, 等. 基于单位面积价值当量因子的生态系统服务价值化方法改进. 自然资源学报, 2015, 30(8):1243-1254.
	[ XIE G D, ZHANG C X, ZHANG L M, et al. Improvement of the evaluation method for ecosystem service value based on per unit area. Journal of Natural Resources, 2015, 30(8):1243-1254.]
[28]	黄敏, 杨飞, 郑士伟. 中国城镇化进程对生态系统服务价值的影响. 水土保持研究, 2019, 26(1):352-359.
	[ HUANG M, YANG F, ZHENG S W. Impact of urbanization process on ecosystem service value in China. Research of Soil and Water Conservation, 2019, 26(1):352-359.]
[29]	贺玉晓, 苏小婉, 任玉芬, 等. 中国生态地理区城市水资源利用效率时空分异特征研究. 生态学报, 2020, 40(20):7464-7478.
	[ HE Y X, SU X W, REN Y F, et al. Spatiotemporal differentiation of urban water resource utilization efficiency of eco-geographic regions in China. Acta Ecologica Sinica, 2020, 40(20):7464-7478.]
[30]	ZHAO M S, HEINSCH F A, NEMANI R R, et al. Improvements of the MODIS terrestrial gross and net primary production global data set. Remote Sensing of Environment, 2005, 95(2):164-176. doi: 10.1016/j.rse.2004.12.011
[31]	董玉祥, 康国定. 中国干旱半干旱地区风蚀气候侵蚀力的计算与分析. 水土保持学报, 1994, 8(3):1-7.
	[ DONG Y X, KANG G D. Study on the wind erosion climatic erosivity in arid and semi-arid areas in China. Journal of Soil and Water Conservation, 1994, 8(3):1-7.]
[32]	王万忠, 焦菊英. 中国的土壤侵蚀因子定量评价研究. 水土保持通报, 1996, 16(5):1-20.
	[ WANG W Z, JIAO J Y. Quantitative evaluation on factors influencing soil erosion in China. Bulletin of Soil and Water Conservation, 1996, 16(5):1-20.]
[33]	WILLIAMS J R. The erosion-productivity impact calculator (EPIC) model: A case history. Philosophical Transactions of the Royal Society of London Series B: Biological Sciences, 1990, 329(1255):421-428.
[34]	黄心怡, 赵小敏, 郭熙, 等. 基于生态系统服务功能和生态敏感性的自然生态空间管制分区研究. 生态学报, 2020, 40(3):1-12.
	[ HUANG X Y, ZHAO X M, GUO X, et al. The natural ecological spatial management zoning based on ecosystem service function and ecological sensitivity. Acta Ecologica Sinica, 2020, 40(3):1-12.]
[35]	环境保护部, 国家发展改革委. 生态保护红线划定指南, http://www.mee.gov.cn/gkml/hbb/bgt/201707/t20170728_418679.htm, 2017-07-20.
	[Ministry of Environmental Protection, National Development and Reform Commission. Guidelines for the delineation of ecological protection red lines, http://www.mee.gov.cn/gkml/hbb/bgt/201707/t20170728_418679.htm, 2017-07-20.]
[36]	自然资源部. 资源环境承载能力和国土空间开发适宜性评价技术指南(试行), http://gi.mnr.gov.cn/202001/t20200121_2498502.html, 2020-01-19.
	[Ministry of Natural Resources. Technical guidelines for evaluation of resources and environment carrying capacity and suitability of land and space development (Trial), http://gi.mnr.gov.cn/202001/t20200121_2498502.html, 2020-01-19.]
[37]	董蕊, 任小丽, 盖艾鸿, 等. 基于中国生态系统研究网络的典型森林生态系统土壤保持功能分析. 生态学报, 2020, 40(7):2310-2320.
	[ DONG R, REN X L, GAI A H, et al. Use of CERN for estimating the soil conservation capability of typical forest ecosystems in China. Acta Ecologica Sinica, 2020, 40(7):2310-2320.]
[38]	马良, 朱再春, 曾辉. NPP评估过程模型应用研究进展. 中国沙漠, 2017, 37(6):1250-1260.
	[ MA L, ZHU Z C, ZENG H. Research advance about application of NPP process models in NPP evaluation. Journal of Desert Research, 2017, 37(6):1250-1260.]
[39]	ZHANG L Q, PENG J, LIU Y X, et al. Coupling ecosystem services supply and human ecological demand to identify landscape ecological security pattern: A case study in Beijing-Tianjin-Hebei Region, China. Urban Ecosystems, 2017, 20(3):701-714. doi: 10.1007/s11252-016-0629-y
[40]	刘军会, 马苏, 高吉喜, 等. 区域尺度生态保护红线划定: 以京津冀地区为例. 中国环境科学, 2018, 38(7):2652-2657.
	[ LIU J H, MA S, GAO J X, et al. Delimiting the ecological conservation redline at regional scale: A case study of Beijing-Tianjin-Hebei Region. China Environmental Science, 2018, 38(7):2652-2657.]
[41]	曹慧明, 董仁才, 邓红兵, 等. 区域生态系统重心指标的概念与应用. 生态学报, 2016, 36(12):3639-3645.
	[ CAO H M, DONG R C, DENG H B, et al. The concept and application of centroids in the spatial analysis of regional ecosystems. Acta Ecologica Sinica, 2016, 36(12):3639-3645.]
[42]	丘宝剑. 全国农业综合自然区划的一个方案. 河南大学学报: 自然科学版, 1986, 53(1):21-28.
	[ QIU B J. A scheme for agricultural comprehensive natural division in China. Journal of Henan University: Natural Science, 1986, 53(1):21-28.]
[43]	李彦波, 邓方荣, 罗逍. “双评价”结果在长沙市国土空间规划中的应用探索. 规划师, 2020, 36(7):33-39.
	[ LI Y B, DENG F R, LUO X. The application of "Double Evaluations" in Changsha national land use and space plan. Planners, 2020, 36(7):33-39.]
[44]	于连莉, 郭晓林, 宋军. 青岛市国土空间“双评价”的实践与思考. 规划师, 2020, 36(6):5-12.
	[ YU L L, GUO X L, SONG J. Practice and reflection of "Dual Evaluations" of national land, Qingdao. Planners, 2020, 36(6):5-12.]

类型	范围	分级
主干河流	河流两侧1 km	极重要
	河流两侧2 km	高度重要
	河流两侧3 km	中等重要
二级河流	河流两侧200 m	极重要
	河流两侧400 m	高度重要
	河流两侧600 m	中等重要
湖泊、水库	—	极重要
重要饮用水水源地	—	极重要

重要性级别	面积比例
重要性级别	水源涵养	水土保持	防风固沙	生物多样性维护	产品提供	综合生态
极重要	6.08	4.90	4.61	9.51	7.25	8.37
高度重要	14.38	11.34	10.88	15.58	13.98	17.81
中等重要	20.56	19.95	21.29	17.93	21.26	32.24
一般重要	24.63	27.16	23.94	20.32	25.75	22.50
不重要	34.35	36.65	39.28	36.65	31.75	19.09

生态服务	Moran's I指数	z得分
水源涵养	0.5319	1302.03
水土保持	0.5847	526.87
防风固沙	0.6984	1160.46
生物多样性维护	0.6370	572.87
产品提供	0.7052	825.37
综合生态服务	0.7190	1293.23
