扎龙湿地丹顶鹤繁殖栖息地的选择及扩散

doi:10.31497/zrzyxb.20210805

自然资源学报 ›› 2021, Vol. 36 ›› Issue (8): 1964-1975.doi: 10.31497/zrzyxb.20210805

• “生态系统评估”专栏 • 上一篇下一篇

扎龙湿地丹顶鹤繁殖栖息地的选择及扩散

宫兆宁¹^,²^,³^,⁴(), 苏朔¹^,²^,³^,⁴, 杜博¹^,²^,³^,⁴, 关晖⁵, 张强⁵

1.首都师范大学资源环境与旅游学院,北京 100048
2.北京水资源安全实验室,北京 100048
3.北京市资源环境与GIS重点实验室,北京 100048
4.北京市城市环境过程与数字模拟国家重点实验室培育基地,北京 100048
5.北京空间飞行器总体设计部,北京 100086

收稿日期:2019-11-08 修回日期:2020-05-11 出版日期:2021-08-28 发布日期:2021-10-28
作者简介:宫兆宁（1976- ）,女,山东青岛人,博士,教授,主要从事湿地生态遥感方面的研究。E-mail: gongzhn@163.com
基金资助:
国家自然科学基金项目(41971381);北京水务局重点项目(TAHP-2018-ZB-YY-490S)

Habitat selection and dispersal of red-crowned cranes during breeding period in Zhalong Wetland National Nature Reserve

GONG Zhao-ning¹^,²^,³^,⁴(), SU Shuo¹^,²^,³^,⁴, DU Bo¹^,²^,³^,⁴, GUAN Hui⁵, ZHANG Qiang⁵

1. College of Resources Environment & Tourism, Capital Normal University, Beijing 100048, China
2. Beijing Water Resources Security Laboratory, Beijing 100048, China
3. Key Laboratory of Resources Environment and GIS of Beijing Municipal, Beijing 100048, China
4. Base of the State Laboratory of Urban Environmental Processes and Digital Modeling, Beijing 100048, China
5. Beijing Institute of Spacecraft System Engineering, China Academy of Space Technology, Beijing 100086, China

Received:2019-11-08 Revised:2020-05-11 Online:2021-08-28 Published:2021-10-28

摘要/Abstract

摘要：

景观演变对野生动物栖息地质量和连接度造成的影响,一直是威胁全球生物多样性保护的关键问题,开展扎龙湿地丹顶鹤（Grus japonensis）繁殖栖息地选择及繁殖期生境间的扩散研究,对野生丹顶鹤的保护具有重要的意义。首先利用需要“出现点”的生态位MAXENT模型,进行适宜栖息地选择研究。从水源、食物、干扰、隐蔽物四个方面选择明水面距离、土壤湿度、NDVI、道路距离和居民地距离五个环境变量作为丹顶鹤繁殖栖息地选择的影响因子,预测扎龙保护区可供丹顶鹤进行营巢繁殖的栖息地分布,并分析各影响因子的反应曲线。结果显示：丹顶鹤易于选择远离道路和居民地干扰且靠近明水面的区域作为营巢栖息地,栖息地土壤湿度较高并且植被覆盖较多。从MAXENT模型中提取了38个适宜栖息地斑块,基于电路理论模拟丹顶鹤繁殖期失去飞行能力时的多路径扩散,最大电流密度图突出了可能的“夹点”,模拟出具有一定宽度范围的连接区域,可供丹顶鹤在繁殖期间进行扩散。累积电流密度图突出了在维持网络连通性方面起到积极作用的斑块,并进行面积加权来评估适宜栖息地斑块的综合重要性。结果表明,在MAXENT模型预测出的适宜栖息地斑块基础上,考虑丹顶鹤繁殖期的迁移扩散行为,利用累积电流密度面积加权来评估适宜栖息地斑块的综合重要性,得到的适宜性等级更符合丹顶鹤真实巢址的分布。研究成果可为保护区丹顶鹤栖息繁殖生境的恢复和保护提供科学依据。

关键词: 丹顶鹤, 繁殖栖息地选择, 扩散, 最大熵模型, 电路理论, 扎龙湿地自然保护区

Abstract:

The impact of landscape changes on the quality and connectivity of habitats for multiple wildlife species is a global conservation concern. Zhalong Wetland is not only the priority areas of biodiversity conservation in China, but also the largest haibitat in the world with a large number of red-crowned cranes (Grus japonensis) breeding. The red-crowned crane was listed as a globally endangered species by the IUCN Red List of threatened species (IUCN, 2012), which is the umbrella species and the most sensitive biological indicator species of ecological changes in Zhalong Wetland. The selection of breeding habitat and the dispersal between suitable habitats in the study area are of great significance to the protection of wild red-crowned cranes. Firstly five variables (distance to water, soil wetness, NDVI, distance to roads and distance to buildings) were derived, which was hypothesized to influence the quality of habitat for red-crowned cranes according to the actual investigation within an area encompassing the entire Zhalong Nature Reserve. The MAXENT model was used to predict the suitable habitat distribution of red-crowned crane and analyze the response curve of each factor. The results showed that the red-crowned cranes were more likely to inhabit far away from roads and residents, and the breeding habitat might be close to water with more vegetation in a higher soil moisture condition. Finally, 38 suitable habitat patches were extracted from MAXENT model to simulate the multipath dispersal of red-crowned cranes when they lost flight ability based on circuit theory in landscape connectivity. Our map of maximum current flow between patches highlighted the possible pinch points, which can be used for red-crowned cranes moving directly between patch pairs. Current flow summed across all pairs of patches highlighted areas important for keeping the entire network connected. The results show that based on the suitable habitat patches predicted by MaxEnt model, considering the migration and diffusion behavior of the red-crowned crane in the breeding period, the comprehensive importance of the suitable habitat patches is evaluated by using the area weighting of the cumulative current density, and the suitability level is more consistent with the real nest distribution of the red-crowned cranes. Map results can be used to support the planning efforts concerned with the maintenance of red-crowned cranes metapopulation structure, as well as to protect the landscape features that facilitate the dispersal process.

Key words: red-crowned crane, habitat selection during breeding period, dispersal, MAXENT Model, circuit theory, Zhalong Wetland National Nature Reserve

宫兆宁, 苏朔, 杜博, 关晖, 张强. 扎龙湿地丹顶鹤繁殖栖息地的选择及扩散[J]. 自然资源学报, 2021, 36(8): 1964-1975.

GONG Zhao-ning, SU Shuo, DU Bo, GUAN Hui, ZHANG Qiang. Habitat selection and dispersal of red-crowned cranes during breeding period in Zhalong Wetland National Nature Reserve[J]. JOURNAL OF NATURAL RESOURCES, 2021, 36(8): 1964-1975.

图/表 10

图1

图2

表1

图3

表2

图4

图5

图6

图7

图8

参考文献 34

[1]	PECL G T, ARAÚJO M B, BELL J D, et al. Biodiversity redistribution under climate change: Impacts on ecosystems and human well-being. Science, 2017, 355(6332): 9214. doi: 10.1126/science.355.6328.921-d
[2]	魏辅文, 聂永刚, 苗海霞, 等. 生物多样性丧失机制研究进展. 科学通报, 2014, 59(6): 430-437.
	[WEI F W, NIE Y G, MIAO H X, et al. Advancements of the researches on biodiversity loss mechanisms. Chinese Science Bulletin, 2014, 59(6): 430-437.]
[3]	刘慧明, 高吉喜, 张海燕, 等. 2010—2015年中国生物多样性保护优先区域人类干扰程度评估. 地球信息科学学报, 2017, 19(11): 1456-1465. doi: 10.3724/SP.J.1047.2017.01456
	[LIU H M, GAO J X, ZHANG H Y, et al. Human disturbance monitoring and assessment in the biodiversity conservation priority area of China. Journal of Geo-Information Science, 2017, 19(11): 1456-1465.]
[4]	佟守正, 吕宪国, 苏立英, 等. 扎龙湿地生态系统变化过程及影响因子分析. 湿地科学, 2008, 6(2): 179-184.
	[TONG S Z, LYU X G, SU L Y, et al. Changing process and the impact factors of wetland ecosystem in Zhalong Wetland. Wetland Science, 2008, 6(2): 179-184.]
[5]	LAWLER J J, RUESCH A S, OLDEN J D, et al. Projected climate-driven faunal movement routes. Ecology Letters, 2013, 16(8): 1014-1022. doi: 10.1111/ele.2013.16.issue-8
[6]	AMANO T, SZÉKELY T, SANDEL B, et al. Successful conservation of global waterbird populations depends on effective governance. Nature, 2017, 553: 199-201. doi: 10.1038/nature25139
[7]	杨维康, 钟文勤, 高行宜. 鸟类栖息地选择研究进展. 干旱区研究, 2000, 17(3): 71-78.
	[YANG W K, ZHONG W Q, GAO X Y. A review of studies on avian habitat selection. Arid Zone Research, 2000, 17(3): 71-78.]
[8]	HOEGHGULDBERG O, HUGHES L, MCINTYRE S, et al. Assisted colonization and rapid climate change. Science, 2008, 321(5887): 345-346. doi: 10.1126/science.1157897
[9]	吴昌广, 周志翔, 王鹏程, 等. 景观连接度的概念、度量及其应用. 生态学报, 2010, 30(7): 1903-1910.
	[WU C G, ZHOU Z X, WANG P C, et al. The concept and measurement of landscape connectivity and its applications. Acta Ecologica Sinica, 2010, 30(7): 1903-1910.]
[10]	陈春娣, 贾振毅, 吴胜军, 等. 基于文献计量法的中国景观连接度应用研究进展. 生态学报, 2017, 37(10): 3243-3255.
	[CHEN C D, JIA Z Y, WU S J, et al. A bibliometric review of Chinese studies on the application of landscape connectivity. Acta Ecologica Sinica, 2017, 37(10): 3243-3255.]
[11]	欧维新, 袁薇锦. 基于景观连接度的盐城滨海湿地丹顶鹤生境斑块重要性评价. 资源科学, 2015, 37(4): 823-831.
	[OU W X, YUAN W J. Priority of red-crowned crane wintering habitat patches using landscape connectivity in the Yancheng Coastal Wetland. Resources Science, 2015, 37(4): 823-831.]
[12]	张宇, 李丽, 吴巩胜, 等. 基于生境斑块的滇金丝猴景观连接度分析. 生态学报, 2016, 36(1): 51-58.
	[ZHANG Y, LI L, WU G S, et al. Analysis of landscape connectivity of the Yunnan snub-nosed monkeys (Rhinopithecus bieti) based on habitat patches. Acta Ecologica Sinica, 2016, 36(1): 51-58.]
[13]	DICKSON B G, ROEMER G W, MCRAE B H, et al. Models of regional habitat quality and connectivity for pumas (Puma concolor) in the Southwestern United States. PLoS One, 2013, 8(12): e81898, Doi: 10.1371/journal.pone.0081898. doi: 10.1371/journal.pone.0081898
[14]	李慧, 李丽, 吴巩胜, 等. 基于电路理论的滇金丝猴生境景观连通性分析. 生态学报, 2018, 38(6): 2221-2228.
	[LI H, LI L, WU G S, et al. Analysis of the landscape level connectivity of the Yunnan snub-nosed monkey habitat based on circuit theory. Acta Ecologica Sinica, 2018, 38(6): 2221-2228.]
[15]	张玉红, 苏立英, 于万辉, 等. 扎龙湿地景观动态变化特征. 地理学报, 2015, 70(1): 131-142. doi: 10.11821/dlxb201501011
	[ZHANG Y H, SU L Y, YU W H, et al. Characteristics of landscape dynamic changes in Zhalong Wetland. Acta Geographica Sinica, 2015, 70(1): 131-142.]
[16]	冯夏清, 章光新. 自然—人为双重作用下扎龙湿地水文情势分析. 资源科学, 2010, 32(12): 2316-2323.
	[FENG X Q, ZHANG G X. Analysis of the hydrologic regime affected by natural and human factors over the Zhalong Wetland. Resources Science, 2010, 32(12): 2316-2323.]
[17]	邹红菲, 朱井丽, 吴庆明, 等. 扎龙保护区湿地注水恢复期鸟类群落多样性. 野生动物学报, 2016, 37(3): 207-215.
	[ZOU H F, ZHU J L, WU Q M, et al. Avian community diversity during the restoration stage after wetland irrigation in Zhalong Nature Reserve. Chinese Journal of Wildlife, 2016, 37(3): 207-215.]
[18]	刘学昌, 吴庆明, 邹红菲, 等. 丹顶鹤(Grus japonensis)东、西种群巢址选择的分异. 生态学报, 2009, 29(8): 4483-4491.
	[LIU X C, WU Q M, ZOU H F, et al. The difference in characteristics of the nestsite selection between the east and west populations of the Red-crowned Cranes (Grus japonensis). Acta Ecologica Sinica, 2009, 29(8): 4483-4491.]
[19]	ELITH J, GRAHAM C H, ANDERSON R P, et al. Novel methods improve prediction of species' distributions from occurrence data. Ecography, 2006, 29(2): 129-151. doi: 10.1111/j.2006.0906-7590.04596.x
[20]	朱耿平, 乔慧捷. Maxent模型复杂度对物种潜在分布区预测的影响. 生物多样性, 2016, 24(10): 1189-1196. doi: 10.17520/biods.2016265
	[ZHU G P, QIAO H J, et al. Effect of the Maxent model's complexity on the prediction of species potential distributions. Biodiversity Science, 2016, 24(10): 1189-1196.]
[21]	高蓓, 卫海燕, 郭彦龙, 等. 应用GIS和最大熵模型分析秦岭冷杉潜在地理分布. 生态学杂志, 2015, 34(3): 843-852.
	[GAO B, WEI H Y, GUO Y L, et al. Using GIS and Maxent to analyze the potential distribution of Abies chensiensis. Chinese Journal of Ecology, 2015, 34(3): 843-852.]
[22]	PHILLIPS S J, ANDERSON R P, SCHAPIRE R E. Maximum entropy modeling of species geographic distributions. Ecological Modelling, 2006, 190(3): 231-259. doi: 10.1016/j.ecolmodel.2005.03.026
[23]	宋利利, 秦明周. 整合电路理论的生态廊道及其重要性识别. 应用生态学报, 2016, 27(10): 3344-3352.
	[SONG L L, QIN M Z. Identification of ecological corridors and its importance by integrating circuit theory. Chinese Journal of Applied Ecology, 2016, 27(10): 3344-3352.]
[24]	周志华. 机器学习. 北京: 清华大学出版社, 2016: 31-36.
	[ZHOU Z H. Machine Learning. Beijing: Tsinghua University Press, 2016: 31-36.]
[25]	赵正阶. 中国鸟类志. 长春: 吉林科学技术出版社, 2001: 414-415.
	[ZHAO Z J. Avifauna of China. Changchun: Jilin Science and Technology Press, 2001: 414-415.]
[26]	SU L, ZOU H. Status, threats and conservation needs for the continental population of the Red-crowned Crane. Chinese Birds, 2012, 3(3): 147-164. doi: 10.5122/cbirds.2012.0030
[27]	江红星, 刘春悦, 钱法文, 等. 基于3S技术的扎龙湿地丹顶鹤巢址选择模型. 林业科学, 2009, 45(7): 76-83.
	[JIANG H H, LIU C Y, QIAN F W, et al. A model of nest-site selection of Red-crowned Crane based on RS, GIS and GPS techniques at Zhalong Wetland, China. Scientia Silvae Sinicae, 2009, 45(7): 76-83.]
[28]	李枫, 杨红军. 扎龙湿地丹顶鹤巢址选择研究. 东北林业大学学报, 1999, 27(6): 57-60.
	[LI F, YANG H J. The nest-site selection by Red-crowned Crane in the Zhalong Wetland. Journal of Northeast Forestry University, 1999, 27(6): 57-60.]
[29]	郭殿繁, 臧淑英, 那晓东. 扎龙保护区丹顶鹤栖息地适宜性评价. 地理与地理信息科学, 2015, 31(1): 54-58.
	[GUO D Y, ZANG S Y, NA X D. Habitat suitability evaluation of Red-Crowned Crane in Zhalong National Nature Reserve. Geography and Geo-Information Science, 2015, 31(1): 54-58.]
[30]	MCRAE B H, SHAH V B, MOHAPATRA T K. Circuitscape 4 User Guide. The Nature Conservancy. http://docs.circuitscape.org/circuitscape_4_0_user_guide.html?&id=gsite, 2013.
[31]	秦喜文, 张树清, 李晓峰, 等. 基于证据权重法的丹顶鹤栖息地适宜性评价. 生态学报, 2009, 29(3): 1074-1082.
	[QIN X W, ZHANG S Q, LI X F, et al. Assessment of Red-crowned Crane's habitat suitability based on weights-of-evidence. Acta Ecologica Sinica, 2009, 29(3): 1074-1082.]
[32]	王志强, 陈志超, 郝成元. 基于HSI模型的扎龙国家级自然保护区丹顶鹤繁殖生境适宜性评价. 湿地科学, 2009, 7(3): 197-201.
	[WANG Z Q, CHEN Z C, HAO C Y. Breeding habitat suitability evaluation of Red-crown Crane in Zhalong National Nature Reserve by the method of habitat suitability index. Wetland Science, 2009, 7(3): 197-201.]
[33]	李方满, 李佩. 丹顶鹤与白枕鹤的领域比较. 生态学杂志, 1999, 18(6): 33-37.
	[LI F M, LI P. A comparative study on territories of White-Naped Crane and Red-Crowned Crane. Chinese Journal of Ecology, 1999, 18(6): 33-37.]
[34]	BEIER P, MAJKA D R, NEWELL S L. Uncertainty analysis of least-cost modeling for designing wildlife linkages. Ecological Applications: A Publication of the Ecological Society of America, 2009, 19(8): 2067. doi: 10.1890/08-1898.1

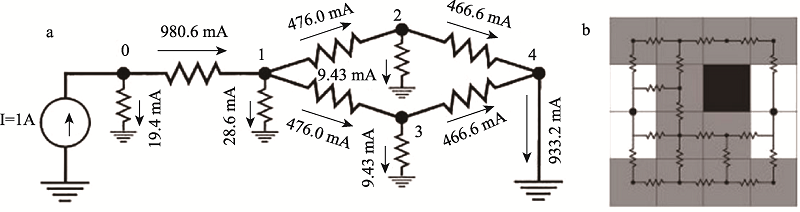

名词	生态学解释
电阻	与生态学中景观阻力概念相似,电阻阻值越大,景观对物种扩散的阻碍能力越强
电压	用来预测物种离开任意一个焦点并成功到达下一个给定焦点的可能概率
电流	表示物种在运动过程中沿某一路径扩散的概率
电源	表示物种进行扩散过程前的种群数量
接地	表示物种在某一焦点停留,不继续扩散过程

土地覆被类型	阻力值
芦苇沼泽	1
明水面	10
草地	25
盐碱地	50
耕地	75
建筑道路用地	Infinite
