改革开放以来中国粮食生产空间重构

doi:10.31497/zrzyxb.20210606

摘要/Abstract

摘要：

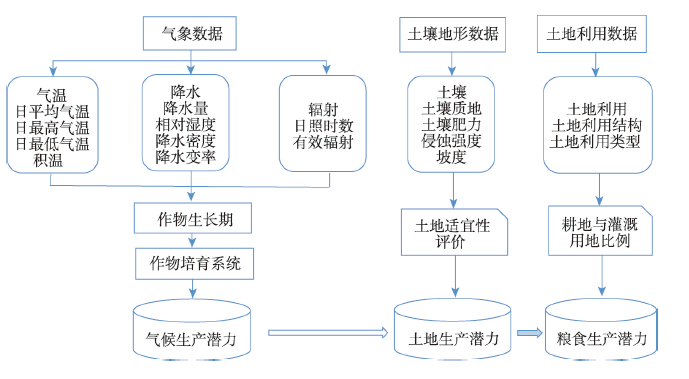

粮食生产空间重构不仅事关我国粮食安全,而且深刻影响着区域经济发展与生态保护。从数量、生产潜力和空间格局三个维度出发,采用GAEZ模型、景观格局指数与重心迁移模型探讨了1980—2018年中国粮食生产空间重构。研究表明：（1）就数量来看,南减北增,总量基本持衡,但其内部转换频繁。粮食生产空间转出面积约达6458万hm²,其中退耕还林还草与建设用地扩张占到90%左右;粮食生产空间转入面积为6680万hm²,毁林垦草占到75%。（2）从生产潜力上看,其总量整体呈下降趋势,同时表现出由东向西降低的梯度差异。生产潜力总量减少主要是由退耕还林还草与城市扩张所导致,使得中低潜力、中潜力与中高潜力等级的粮食生产空间减少。而增加的主要原因是毁林垦草,使得中潜力与中高潜力等级的粮食生产空间大量增加。（3）由于人类活动的加剧,空间格局发生了显著变化。粮食生产空间的规模逐渐变小,形状趋于复杂,相隔距离逐渐变远。同时,粮食生产空间的数量重心整体向南运动,但迁移距离不大。而生产潜力重心不断向东北移动,迁移幅度相对较大。研究结果丰富了土地系统研究体系,为保障粮食安全及实现粮食生产空间的可持续集约化发展提供依据。

关键词: 粮食生产空间, 生产潜力, 空间格局

Abstract:

Grain production space reconstruction not only concerns China's food security, but also has a profound impact on regional economic development and ecological protection. From three dimensions of quantity, production potential and spatial pattern, the paper employs GAEZ (Global Agro-Ecological Zones) model, landscape pattern index and gravity center model to discuss the grain production space reconstruction of China from 1980 to 2018. Studies have shown that: (1) In terms of quantity, grain production space gradually decreases from south to north, and the total area remains almost unchanged, but it has frequent internal conversion. The grain production space has been transformed into other land use types, amounting to about 64.58 million hm², of which the Grain for Green and construction land expansion account for roughly 90%. The other land use types have been converted into grain production space, reaching 66.8 million hm², of which deforestation and grassland reclamation account for 75%. (2) From production potential, the total amount showed decreasing trends in the past 40 years, while the spatial distribution presents a pattern of "high in the east and low in the west", showing an obvious gradient difference from east to west. The decrease of total production potential of grain production space was mainly caused by the Grain for Green and construction land expansion, resulting in the decrease of grain production space with medium-low, medium and medium-high potential levels; However, its total increase was mainly attributed to the deforestation and grassland reclamation, leading to an increase of grain production space with medium and medium-high potential levels. (3) Due to the aggravation of human activities, the landscape pattern of China's grain production space has undergone significant changes since the 1980s. Its scale gradually decreased, the shape tended to be complex, and the distance gradually became far. Meanwhile, the quantity gravity center has moved southward, but not too far. The gravity center of its production potential has been moving to the northeast, with a distance of 82.74 km. This paper enriches the research setup of land system, and provides the basis for guaranteeing food security and realizing food production space's sustainable and intensive use.

Key words: grain production space, production potential, spatial pattern

张秋梦, 杨方社, 李飞. 改革开放以来中国粮食生产空间重构[J]. 自然资源学报, 2021, 36(6): 1426-1438.

ZHANG Qiu-meng, YANG Fang-she, LI Fei. The grain production space reconstruction in China since the reform and opening up[J]. JOURNAL OF NATURAL RESOURCES, 2021, 36(6): 1426-1438.

图/表 10

图1

图2

图3

表1

1980—2018年中国粮食生产空间转换的区域差异"

	1980—2018年			1980—2000年			2000—2018年
	毁林垦草	退耕还林还草	建设用地扩张	毁林垦草	退耕还林还草	建设用地扩张	毁林垦草	退耕还林还草	建设用地扩张
黑龙江	36965	11665	6657	32274	14070	5674	25317	18017	7251
吉林	16909	10927	5267	6694	2058	1067	13548	12161	5270
辽宁	14795	14172	6949	11803	8981	4390	15587	17785	6985
内蒙古	50852	32465	5715	46022	35587	4301	44865	36617	5363
甘肃	25166	26349	2601	26497	27111	1703	24515	26399	2628
宁夏	6294	5232	1128	1974	191	65	5338	5943	1185
新疆	34353	8102	3296	12351	8016	1051	28055	6610	3170
青海	3641	2924	379	467	19	38	3343	3044	376
西藏	5975	2812	80	2686	2733	40	6233	3101	62
四川	27917	27844	4393	30318	30067	1975	31107	31422	3969
广西	21792	21415	3305	1537	2078	617	21686	21783	2993
贵州	23239	22900	943	29213	28987	199	29186	29196	836
云南	33278	33747	2480	1392	1489	327	33376	33732	2270
重庆	13151	12762	1507	12337	12380	338	11788	11338	1430
陕西	25703	28871	3423	29754	29581	2088	28291	317173	3232
山西	17372	17628	5117	21137	20700	2773	20378	21120	5132
河南	5542	5763	16144	7558	7228	13351	7065	7193	16291
湖北	12007	12478	5816	16508	16526	3388	16153	16723	5287
湖南	28446	29093	2596	27466	27763	1361	28601	28900	2449
江西	17030	16787	3117	20026	20032	1512	18283	18033	2896
安徽	6205	6344	11853	7541	7584	8867	6306	6471	11312
北京	636	1168	2040	771	907	1276	639	1012	1552
天津	178	255	1529	201	233	950	197	249	1605
河北	12034	13125	15300	13816	13758	9725	9643	10653	13066
山东	9717	5933	19158	9493	9369	13200	8296	4486	17148
江苏	1477	1244	15100	1689	1607	9620	1466	1294	14261
上海	36	85	2127	69	70	958	52	83	1621
浙江	6047	7445	5359	8256	9678	2150	7813	8015	4810
福建	11046	10900	2217	13256	13222	1023	12868	12858	1941
广东	14479	14860	6394	14831	15248	3406	15549	15698	5131
海南	2593	2657	546	3624	3686	340	3308	3327	524
台湾	573	584	717	27	32	177	555	555	594

表1

表2

图4

图5

表3

图6

图7

参考文献 42

[1]	刘超, 霍永伟, 许月卿, 等. 生态退耕前后张家口市耕地变化及影响因素识别. 自然资源学报, 2018,33(10):1806-1820.
	[ LIU C, HUO Y W, XU Y Q, et al. Changes in cultivated land and influencing factors before and after the implementation of grain for green project in Zhangjiakou city. Journal of Natural Resources, 2018,33(10):1806-1820.]
[2]	TILMAN D, BALZER C, HILL J, et al. Global food demand and the sustainable intensification of agriculture. PNAS, 2011,108(50):20260-20264. doi: 10.1073/pnas.1116437108
[3]	BREN D A C, REITSMA F, BAIOCCHI G, et al. Future urban land expansion and implications for global croplands. PNAS, 2017,114(34):8939-8944. doi: 10.1073/pnas.1606036114
[4]	FOLEY J A, DEFRIES R, ASNER G P, et al. Global consequences of land use. Sciense, 2005,309(5734):570-574. doi: 10.1126/science.1111772
[5]	陈军. 基于GlobeLand 30的全球耕地利用格局变化研究. 中国农业科学, 2018,51(6):1089-1090.
	[ CHEN J. Farming the spatio-temporal changes in global cultivated land using GlobaLand 30. Scientia Agricultura Sinica, 2018,51(6):1089-1090.]
[6]	张国平, 刘纪远, 纪增祥. 近10年来中国耕地资源的时空变化分析. 地理学报, 2003,58(3):323-332.
	[ ZHANG G P, LIU J Y, JI Z X. Spatial-temporal changes of cropland in China for the past 10 years based on remote sensing. Acta Geographica Sinica, 2003,58(3):323-332.]
[7]	刘纪远, 张增祥, 庄大方, 等. 20世纪90年代中国土地利用变化时空特征及其成因分析. 地理研究, 2003,22(1):1-12.
	[ LIU J Y, ZHANG Z X, ZHUANG D F, et al. A study on the spatial-temporal dynamic changes of land-use and driving forces analyses of China in the 1990s. Geographical Research, 2003,22(1):1-12.]
[8]	刘纪远, 匡文慧, 张增祥, 等. 20世纪80年代末以来中国土地利用变化的基本特征与空间格局. 地理学报, 2014,69(1):3-13.
	[ LIU J Y, KUANG W H, ZHANG Z X, et al. Spatiotemporal characteristics, patterns and causes of land use changes in China since the late 1980s. Acta Geographica Sinica, 2014,69(1):3-13.]
[9]	DENG X Z, HUANG J K, ROZELLE S, et al. Cultivated land conversion and potential agriculture productivity in China. Land Use Policy, 2006,23(4):372-384. doi: 10.1016/j.landusepol.2005.07.003
[10]	刘纪远, 宁佳, 匡文慧, 等. 2010—2015年中国土地利用变化的时空格局与新特征. 地理学报, 2018,73(5):789-802. doi: 10.11821/dlxb201805001
	[ LIU J Y, NING J, KUANG W H, et al. Spatio-temporal patterns and characteristics of land-use change in China during 2010-2015. Acta Geographica Sinica, 2018,73(5):789-802.]
[11]	程维明, 高晓雨, 马廷, 等. 基于地貌分区的1990—2015年中国耕地时空特征变化分析. 地理学报, 2018,73(9):1613-1629. doi: 10.11821/dlxb201809001
	[ CHENG W M, GAO X Y, MA T, et al. Spatial-temporal distribution of cropland in China based on geomorphologic regionalization during 1990-2015. Acta Geographica Sinica, 2018,73(9):1613-1629.]
[12]	石淑芹, 陈佑启, 姚艳敏, 等. 东北地区耕地变化对粮食生产能力的影响评价. 地理学报, 2008,63(6):574-586.
	[ SHI S Q, CHEN Y Q, YAO Y M, et al. Impact assessment of cultivated land change upon grain production capacity in Northeast China. Acta Geographica Sinica, 2008,63(6):574-586.]
[13]	李相玺, 尹忠东, 何长高. 土地生产潜力研究综述. 水土保持学报, 2001,15(5):33-36.
	[ LI X X, YIN Z D, HE C G. Review on the study of land potential productivity. Journal of Soil and Water Conservation, 2001,15(5):33-36.]
[14]	潘佩佩, 杨桂山, 苏伟忠. 土地利用变化对生产力的影响研究进展. 地理科学进展, 2012,31(5):539-550.
	[ PAN P P, YANG G S, SU W Z. Progress on effects of land use change on land productivity. Progress in Geography, 2012,31(5):539-550.]
[15]	邓祥征, 黄季焜, ROZELLE S. 中国耕地变化及其对生物生产力的影响: 兼谈中国的粮食安全. 中国软科学, 2005, (5):65-70.
	[ DENG X Z, HUANG J K, ROZELLE S. Changes of cultivated land and its impacts on agricultural bioproductivity in China: Implications on national grain security. China Soft Science, 2005, (5):65-70.]
[16]	YAN H M, LIU J Y, HUANG H Q, et al. Assessing the consequence of land use change on agricultural productivity in China. Global and Planetary Change, 2009,67(1-2):13-19. doi: 10.1016/j.gloplacha.2008.12.012
[17]	闫慧敏, 刘纪远, 黄河清, 等. 城市化和退耕还林还草对中国耕地生产力的影响. 地理学报, 2012,67(5):579-588. doi: 10.11821/xb201205001
	[ YAN H M, LIU J Y, HUANG H Q, et al. Impact of cropland transformation on agricultural production under urbanization and grain for green project in China. Acta Geographica Sinica, 2012,67(5):579-588.]
[18]	曲胜秋, 刘艳芳, 银超慧, 等. 1990—2015年福建省耕地变化的空间格局分析. 中国生态农业学报, 2020,28(4):587-598.
	[ QU Q Y, LIU Y F, YIN C H, et al. Spatial pattern of cultivated land change in Fujian province from 1990 to 2015. Chinese Journal of Eco-Agriculture, 2020,48(4):587-598.]
[19]	关兴良, 方创琳, 鲁莎莎. 中国耕地变化的空间格局与重心曲线动态分析. 自然资源学报, 2010,25(12):1997-2006.
	[ GUAN X L, FANG C L, LU S S. Analysis of spatial distribution and gravity centers curve dynamics cultivated land changes in China. Journal of Natural Resources, 2010,25(12):1997-2006.]
[20]	张海燕, 樊江文, 邵全琴. 2000—2010年中国退牧还草工程区土地利用/覆被变化. 地理科学进展, 2015,34(7):840-853. doi: 10.18306/dlkxjz.2015.07.006
	[ ZHANG H Y, FAN J W, SHAO Q Q. Land use/land cover change in the grassland restoration program areas in China, 2000-2010. Progress in Geography, 2015,34(7):840-853.]
[21]	李广东, 戚伟. 中国建设用地扩张对景观格局演化的影响. 地理学报, 2019,74(12):2572-2591. doi: 10.11821/dlxb201912011
	[ LI G D, QI W. Impacts of construction land expansion on landscape pattern evolution in China. Acta Geographica Sinica, 2019,74(12):2572-2591.]
[22]	MWANGI H M, LARIU P, JULICH S, et al. Characterzing the intensity and dynamics of land-use change in the Mara River Basin, East Africa. Forests, 2018,9(8):1-17. doi: 10.3390/f9010001
[23]	龙禹桥, 吴文斌, 余强毅, 等. 耕地集约化利用研究进展评述. 自然资源学报, 2018,33(2):337-350.
	[ LONG Y Q, WU W B, YU Q Y, et al. Recent study progresses in intensive use of cropland. Journal of Natural Resources, 2018,33(2):337-350.]
[24]	LIU J Y, LIU M L, DENG X Z, et al. The land use and land cover change database and its relative studies in China. Journal of Geographical Sciences, 2002,12(3):275-282. doi: 10.1007/BF02837545
[25]	LIU J Y, ZHANG Z X, XU X L, et al. Spatial patterns and driving forces of land use change in China during the early 21st century. Journal of Geographical Sciences, 2010,20(4):483-494. doi: 10.1007/s11442-010-0483-4
[26]	ALLEN R G, L PEREIRA L S, RAES D, et al. FAO irrigation and drainage paper No. 56. Rome: Food and Agriculture Organization of the United Nations, 1998: 26-40.
[27]	HUTCHISON M F. ANUSPLIN Version 4.2 User Guide. Canberra: Centre for Resource and Environmental Studies, Australian National University, 2002.
[28]	MASUTOMI Y, TAKAHASHI K, HARASAWA H, et al. Impact assessment of climate change on rice production in Asia in comprehensive consideration of process/parameter uncertainty in general circulation models. Agriculture Ecosystems & Environment, 2009,131(3):281-291. doi: 10.1016/j.agee.2009.02.004
[29]	SHORTRIDGE A, MESSINA J. Spatial structure and landscape associations of SRTM error. Remote Sensing of Environment, 2011,115(6):1576-1587. doi: 10.1016/j.rse.2011.02.017
[30]	FISCHER G, VELTHUIZEN H V, SHAH M, et al. Global Agro-ecological Assessment for Agriculture in the 21st Century: Methodology and Results. Laxenburg, Austria: International Institute for Applied Systems Analysis, 2002.
[31]	FISCHER G, SHAH M, TUBIELLO F N, et al. Socio-economic and climate change impacts on agriculture: An integrated assessment, 1990-2080. Philosophical Transaction of the Royal Society B: Biological Sciences, 2005,360(1463):2067-2087.
[32]	FISCHER G, SHAH M, VELTHUIZEN H, et al. Agro-ecological Zones Assessments. Oxford, UK: Eloss Publishers, 2006.
[33]	葛亚宁, 刘洛, 徐新良, 等. 近50 a气候变化背景下我国玉米生产潜力时空演变特征. 自然资源学报, 2015,30(5):784-795.
	[ GE Y N, LIU L, XU X L, et al. Temporal and spatial variations of Chinese maize production potential on the background of climate change during 1960-2010. Journal of Natural Resources, 2015,30(5):784-795.]
[34]	FU B J, SHI P J, LIU Y H, et al. Principle and Application of Landscape Ecology. Beijing: Science Press, 2011: 368-376.
[35]	鞠洪润, 左丽君, 张增详, 等. 中国土地利用空间格局刻画方法研究. 地理学报, 2020,75(1):143-159. doi: 10.11821/dlxb202001011
	[ JU H R, ZUO L J, ZHANG Z X, et al. Methods research on describing the spatial pattern of land use types in China. Acta Geographica Sinica, 2020,75(1):143-159.]
[36]	BAKER W L, CAI Y M. The rule programs for multiscale analysis of landscape structure using the GRASS geographical information system. Landscape Ecology, 1992,7(4):291-302. doi: 10.1007/BF00131258
[37]	MCGARIGAL K. FRAGSTATS v4: Spatial Pattern Analysis Program for Categorical and Continuous Maps-Help Manual. University of Massachusetts, Amherst. http://www.umass.edu/landeco/research/fragstats/fragstats.html, 2014.
[38]	刘彦随, 王介勇, 郭丽英. 中国粮食生产与耕地变化的时空动态. 中国农业科学, 2009,42(12):4269-4274.
	[ LIU Y S, WANG J Y, GUO L Y. The spatial-temporal changes of grain production and arable land in China. Scientia Agricultura Sinica, 2009,42(12):4269-4274.]
[39]	RAMANKUTTYN N, FOLEY J A, OLEJNICZAK N J. People on the land: Changes in global population and croplands during the 20th century. AMBIO, 2002,31(3):251-257. doi: 10.1579/0044-7447-31.3.251
[40]	刘洛, 徐新良, 刘纪远, 等. 1990—2010年中国耕地变化对粮食生产潜力的影响. 地理学报, 2014,69(12):1767-1778. doi: 10.11821/dlxb201412003
	[ LIU L, XU X L, LIU J Y, et al. Impact of farmland changes on production potential in China during recent two decades. Acta Geographica Sinica, 2014,69(12):1767-1778.]
[41]	鞠洪润. 土地利用空间刻画方法及其在中国的应用. 北京: 中国科学院大学, 2018.
	[ JU H R. Methods research on describing the spatial pattern of land use and its application in China. Beijing: University of Chinese Academy of Sciences, 2018.]
[42]	王朗, 徐延达, 傅伯杰, 等. 半干旱区景观格局与生态水文过程研究进展. 地球科学进展, 2009,24(11):1238-1246.
	[ WANG L, XU Y D, FU B J, et al. Landscape pattern and eco-hydrological process. Advanced in Earth Science, 2009,24(11):1238-1246.]

耕地生产潜力/(kg/hm²）	耕地分类
<2000	低潜力
2000~4000	中低潜力
4000~6000	中潜力
6000~8000	中高潜力
>8000	高潜力

	1980—2018年			1980—2000年			2000—2018年
	退耕还林还草	建设用地扩张	毁林垦草	退耕还林还草	建设用地扩张	毁林垦草	退耕还林还草	建设用地扩张	毁林垦草
低潜力	15.56	4.04	52.59	14.85	1.75	24.51	12.61	3.74	39.39
中低潜力	38.7	8.03	66.56	43.14	3.84	52.88	28.94	7.9	47.3
中潜力	64.45	25.43	154.72	85.73	20.48	141.27	79.43	25.77	109.06
中高潜力	94.54	44.89	336.1	130.41	38.08	301.19	143.32	46.66	224.5
高潜力	7.93	8.88	23.54	10.33	7.54	29.51	11.17	9.09	13.69
