黄河流域地级城市土地集约利用效率与生态福利绩效的耦合性分析

doi:10.31497/zrzyxb.20210108

摘要/Abstract

摘要：

通过构建包含时间趋势变量的超越对数生产函数形式的随机前沿分析模型,对黄河流域2008—2017年57个城市的土地集约利用效率与生态福利绩效进行了测度,借助偏离系数的耦合度模型、马尔科夫链以及地理探测器等方法从市域和省域层面探究了两者耦合度的动态演进规律,并阐明了耦合机理与驱动机制。研究发现：（1）各城市的土地集约利用效率稳中有进,而生态福利绩效却呈波动下降的态势,两者的耦合度经历了“先降后升”的阶段性演变过程。（2）大部分省份耦合度的变异系数表现出扩大的倾向,尚有近1/5的城市属于低发展度低协调度的耦合类型;耦合度在空间上呈现出“东北—西南”走向的分异格局,重心整体向西南方向移动,其类型演变以大概率保持原有类型和向相邻的类型转化为主。（3）在驱动因子探测中,经济发展解释力>自然条件解释力>社会文明解释力;因子交互作用以双因子增强效应为主,非线性增强效应为辅,且社会因子是最主要的交互对象。

关键词: 黄河流域, 土地集约利用效率, 生态福利绩效, 耦合度, 地理探测器, 随机前沿

Abstract:

Correctly handling the relationship between land intensive use efficiency and ecological well-being performance is a special essential prerequisite for promoting ecological protection and high-quality development in the Yellow River Basin. Based on the stochastic frontier analysis model in the form of a translog production function that includes a time trend variable, we measure the land intensive use efficiency and ecological welfare performance of 57 cities in the Yellow River Basin from 2008 to 2017. With the help of a coupling model, distribution dynamic theory and geographical detector tools, in the perspective of cities and provincial levels, the dynamic evolution of the coupling degree between them is described, and the coupling mechanism and driving factors are clarified. The results show that: (1) The land intensive use efficiency of 57 cities has basically remained stable and improved slightly over time, provincial capital cities have gradually formed the first echelon of land intensive use efficiency, but the ecological welfare performance has shown a trend of declining fluctuations. The degree of coupling keeps a high level, taking 2012 as the boundary, it has undergone the evolution process of "decline-rise". (2) The degree of coupling development between cities is uneven, because the coefficient of variation of most provinces is increasing, nearly one fifth of the cities belong to the type of "low level coupling" with low development degree and low coordination degree, although more than half of the cities have achieved the relative synchronization between development and coordination. What's more, the degree of coupling generally presents a spatially differentiated pattern of "northeast-southwest", the center of gravity moves to the southwest as a whole, and its evolution is mainly to maintain the original type and transform to adjacent types. (3) As for the driving factors, the explanatory power of economic dimensions speak louder than that of the natural and social dimensions, that is to say, economies are the leading factors of coupling degree, while social factors and natural factors play roles of support and foundation respectively. The interaction between factors shows the two-factor enhancement and non-linear enhancement effects, and social factors are the main interaction objects.

Key words: Yellow River Basin, land intensive use efficiency, ecological well-being performance, degree of coupling, geographical detector, stochastic frontier analysis

徐维祥, 徐志雄, 刘程军. 黄河流域地级城市土地集约利用效率与生态福利绩效的耦合性分析[J]. 自然资源学报, 2021, 36(1): 114-130.

XU Wei-xiang, XU Zhi-xiong, LIU Cheng-jun. Coupling analysis of land intensive use efficiency and ecological well-being performance of cities in the Yellow River Basin[J]. JOURNAL OF NATURAL RESOURCES, 2021, 36(1): 114-130.

图/表 12

表1

表2

表3

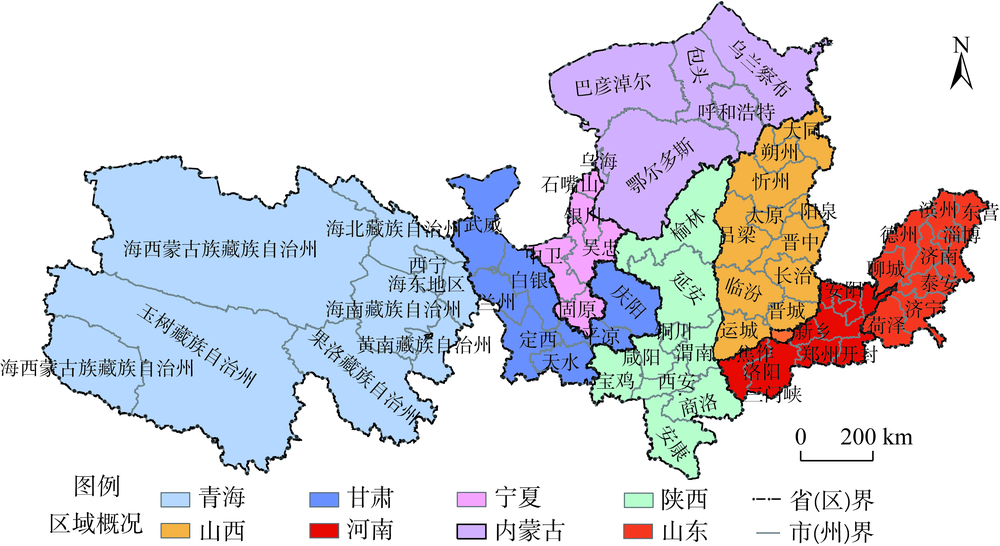

图1

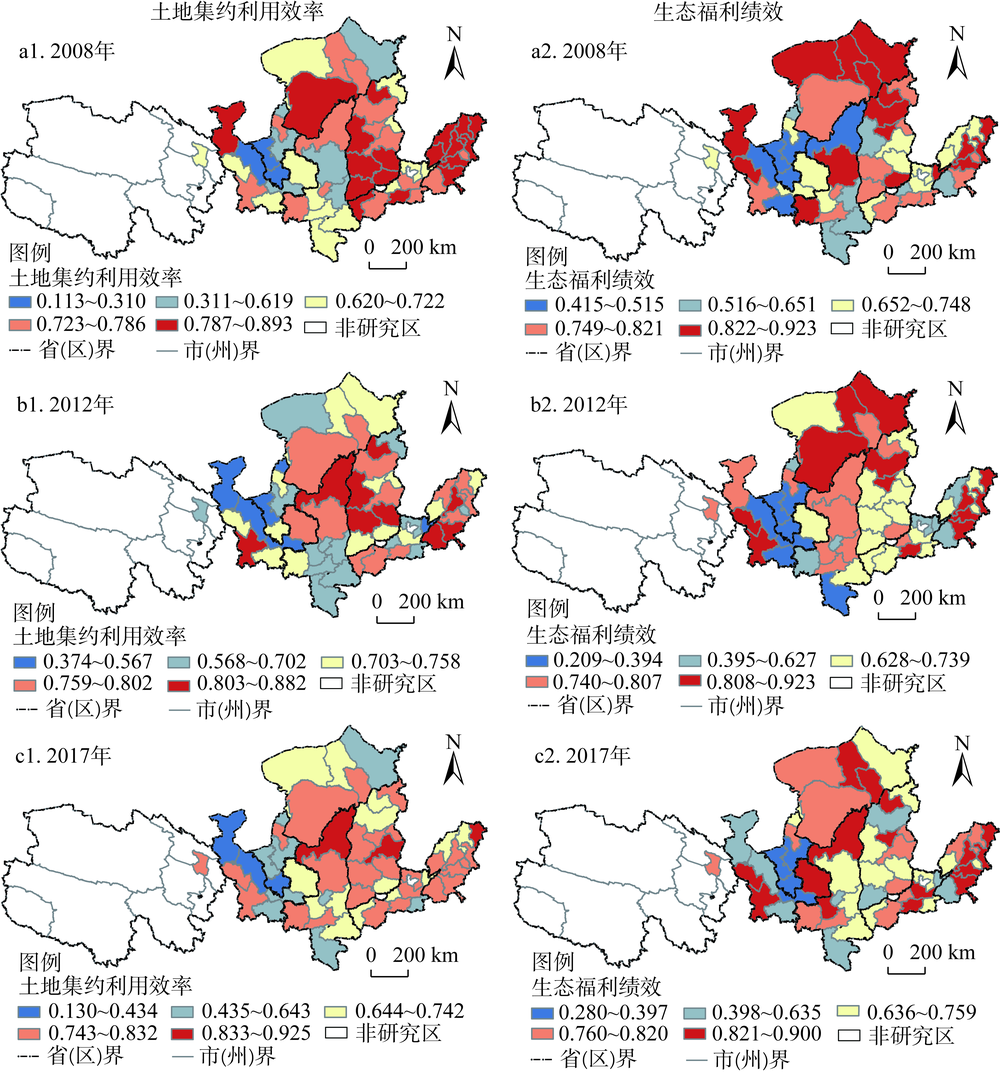

图2

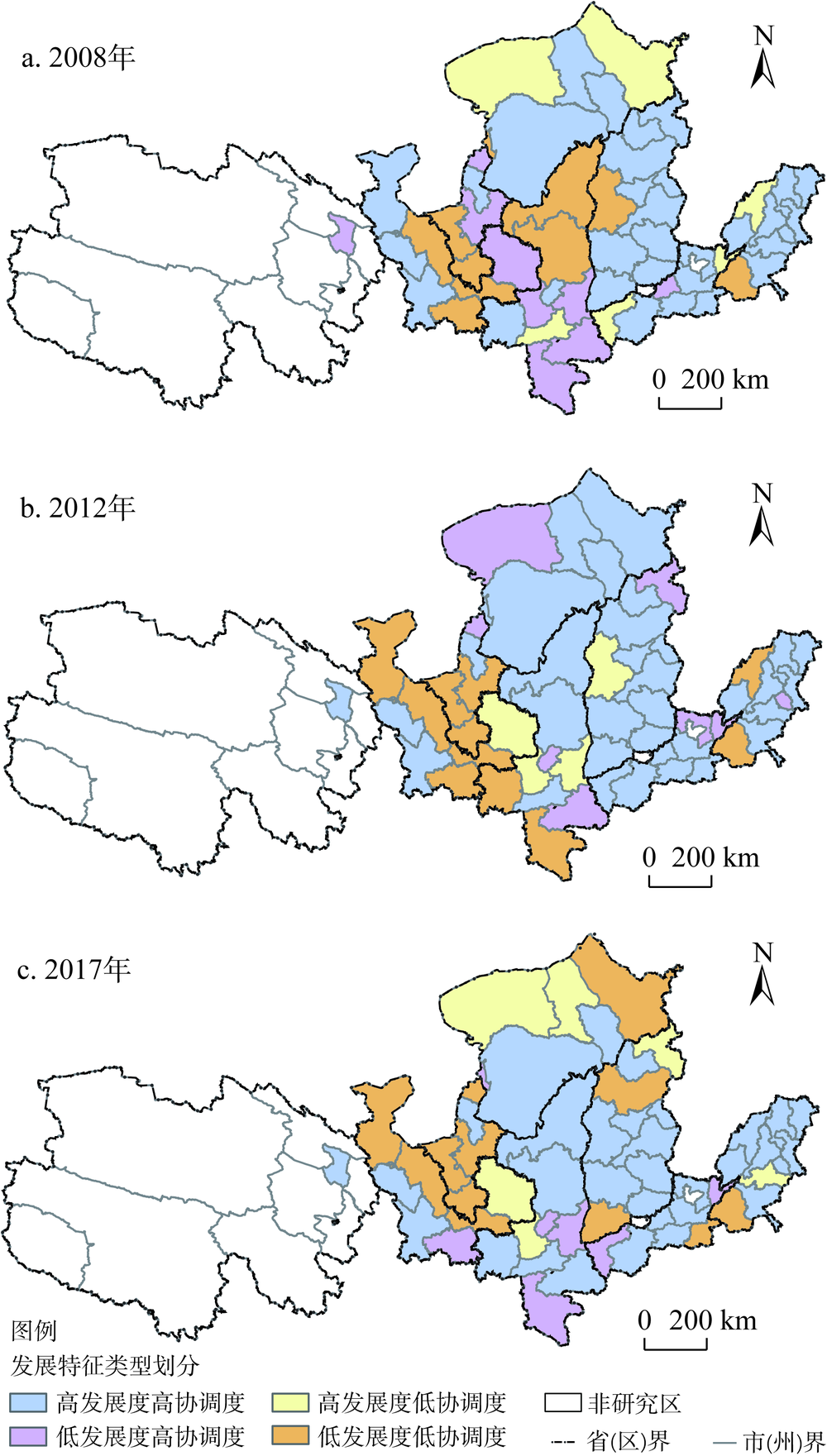

图3

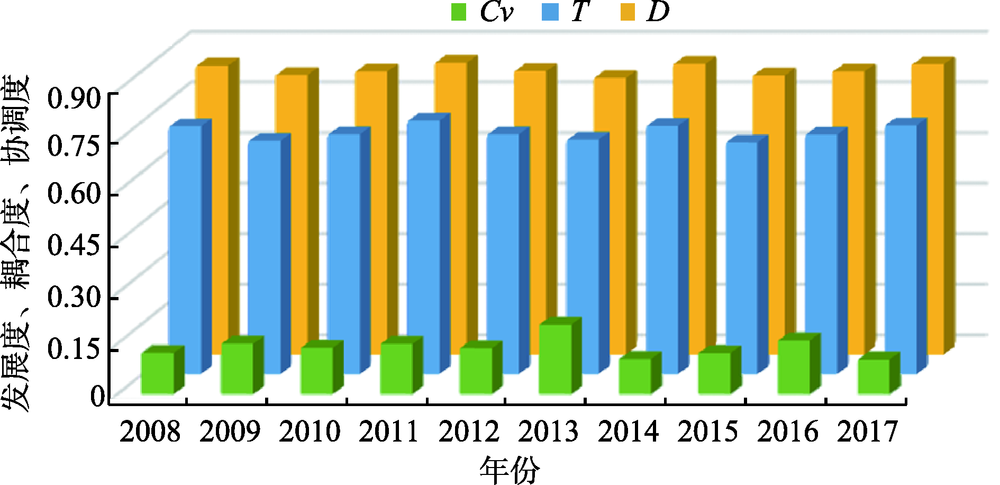

图4

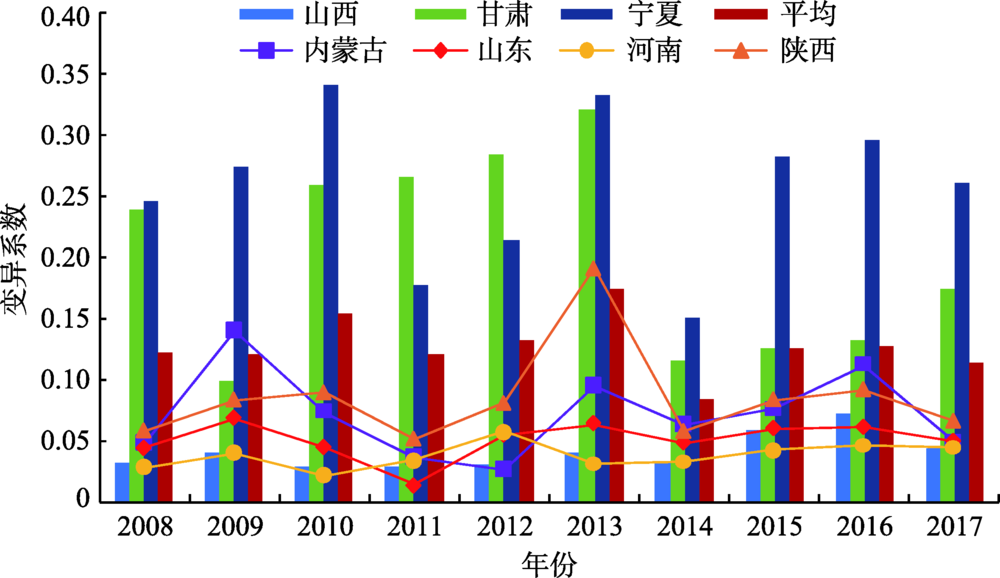

图5

表4

表5

表6

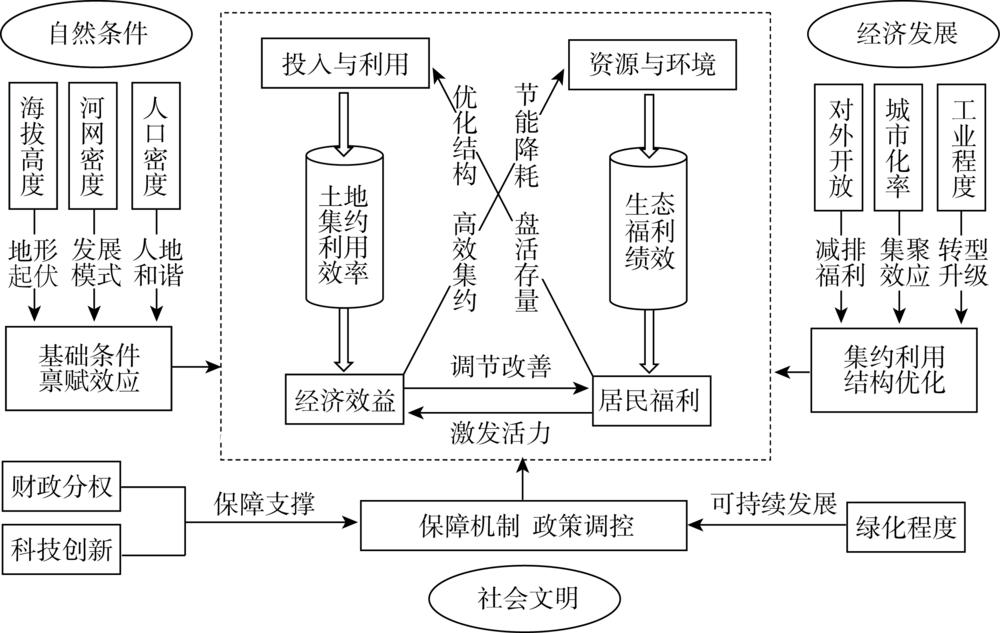

图6

参考文献 36

[1]	王向东, 刘小茜, 裴韬, 等. 基于技术效率测算的京津冀城市土地集约利用潜力评价. 地理学报, 2019,74(9):1853-1865.
	[ WANG X D, LIU X Q, PEI T, et al. Potential evaluation of urban land intensive use in Beijing-Tianjin-Hebei region based on measurement of technical efficiency. Acta Geographica Sinica, 2019,74(9):1853-1865.]
[2]	王镝, 唐茂钢. 土地城市化如何影响生态环境质量: 基于动态最优化和空间自适应半参数模型的分析. 经济研究, 2019,54(3):72-85.
	[ WANG D, TANG M G. How does land urbanization affect ecological environment quality: Analysis based on dynamic optimization and spatially adaptive semi-parametric model. Economic Research, 2019,54(3):72-85.]
[3]	金凤君. 黄河流域生态保护与高质量发展的协调推进策略. 改革, 2019, (11):33-39.
	[ JIN F J. Coordinated promotion strategy of ecological protection and high-quality development in the Yellow River Basin. Reform, 2019, (11):33-39.]
[4]	朱庆莹, 陈银蓉, 胡伟艳, 等. 中国土地集约利用与区域生态效率耦合协调度时空格局. 农业工程学报, 2020,36(4):234-243.
	[ ZHU Q Y, CHEN Y R, HU W Y, et al. Spatiotemporal pattern of coupling coordination degree between land intensive use and regional ecological efficiency in China. Transactions of the CSAE, 2020,36(4):234-243.]
[5]	范建双, 任逸蓉. 违法用地对土地可持续集约利用的影响机制及效应研究. 中国土地科学, 2018,32(3):52-58.
	[ FAN J S, REN Y R. The mechanism and effect of illegal land use on sustainable and intensive land use. Chinese Land Science, 2018,32(3):52-58.]
[6]	尹旭, 李裕瑞, 袁涛, 等. 镇域经济发展与土地集约利用水平综合测度及其关联特征分析: 以江苏省109个抽样乡镇为例. 自然资源学报, 2020,35(3):614-625.
	[ YIN X, LI Y R, YUAN T, et al. Quantitative measurement of economic development and land use intensity and their correlation characteristics in 109 sampled towns of Jiangsu province. Journal of Natural Resources, 2020,35(3):614-625.]
[7]	周璟茹, 赵华甫, 吴金华. 关中城市群土地集约利用与碳排放关系演化特征研究. 中国土地科学, 2017,31(11):55-61, 72.
	[ ZHOU J R, ZHAO H F, WU J H. Study on relationship and evolution characteristics of intensive land-use and urban emission of Guanzhong Urban Agglomeration. Chinese Land Science, 2017,31(11):55-61, 72.]
[8]	董捷, 陈星, 张安录. 基于“三生”功能的长江中游城市群土地集约利用空间差异研究. 华中农业大学学报: 社会科学版, 2017, (6):110-117, 152.
	[ DONG J, CHEN X, ZHANG A L. Research on the spatial difference in land intensive use based on the function of production-ecology-living spaces in urban agglomeration in the Middle Reaches of the Yangtze River. Journal of Huazhong Agricultural University: Social Sciences Edition, 2017, (6):110-117, 152.]
[9]	赵丹丹, 胡业翠. 土地集约利用与城市化相互作用的定量研究: 以中国三大城市群为例. 地理研究, 2016,35(11):2105-2115.
	[ ZHAO D D, HU Y C. Quantitative study of the interaction between intensive land use and urbanization in three urban agglomerations of China. Geographical Research, 2016,35(11):2105-2115.]
[10]	LU X H, KUANG B, LI J. Regional difference decomposition and policy implications of China's urban land use efficiency under the environmental restriction. Habitat International, 2018,77:32-39. doi: 10.1016/j.habitatint.2017.11.016
[11]	CUI X G, FANG C L, WANG Z B, et al. Spatial relationship of high-speed transportation construction and land-use efficiency and its mechanism: Case study of Shandong Peninsula Urban Agglomeration. Journal of Geographical Sciences, 2019,29(4):549-562. doi: 10.1007/s11442-019-1614-1
[12]	万娟娟, 陈璇. 土地发展权视域下中国城市土地集约利用效率空间格局及溢出效应. 经济地理, 2018,38(6):160-167.
	[ WAN J J, CHEN X. Spatial pattern and spillover effect of urban land intensive use efficiency from the perspective of land development rights. Economic Geography, 2018,38(6):160-167.]
[13]	陈莹, 吴秀兰. 土地集约利用与生态效率的耦合协调发展研究. 长江流域资源与环境, 2019,28(5):1025-1035.
	[ CHEN Y, WU X L. Coupling and coordinated development of land intensive use and ecological efficiency. Resources and Environment in the Yangtze Basin, 2019,28(5):1025-1035.]
[14]	李成宇, 张士强, 张伟, 等. 中国省际生态福利绩效测算及影响因素研究. 地理科学, 2019,39(12):1875-1883.
	[ LI C Y, ZHANG S Q, ZHANG W, et al. Measurement and influencing factors of inter-provincial ecological well-being performance in China. Journal of Geographical Sciences, 2019,39(12):1875-1883.]
[15]	DALY H E. A further critique of growth economics. Ecological Economics, 2013,88:20-24. doi: 10.1016/j.ecolecon.2013.01.007
[16]	UNDP. Human Development Report 1990: Concept and Measurement of Human Development. Oxford: Oxford University Press, 1990: 15-18.
[17]	REES W E. Ecological footprints and appropriated carrying capacity: What urban economics leaves out. Environment and Urbanization, 1992,4(2):121-130. doi: 10.1177/095624789200400212
[18]	龙亮军, 王霞. 上海市生态福利绩效评价研究. 中国人口·资源与环境, 2017,27(2):84-92.
	[ LONG L J, WANG X. A study on Shanghai's ecological well-being performance. China Population, Resources and Environment, 2017,27(2):84-92.]
[19]	龙亮军. 基于两阶段Super-NSBM模型的城市生态福利绩效评价研究. 中国人口·资源与环境, 2019,29(7):1-10.
	[ LONG L J. Evaluation of urban ecological well-being performance of Chinese major cities based on two-stage super-efficiency network SBM Model. China Population, Resources and Environment, 2019,29(7):1-10.]
[20]	龙亮军, 王霞, 郭兵. 基于改进DEA模型的城市生态福利绩效评价研究: 以我国35个大中城市为例. 自然资源学报, 2017,32(4):595-605.
	[ LONG L J, WANG X, GUO B. Evaluation of urban ecological well-being performance based on revised DEA model: A case study of 35 major cities in China. Journal of Natural Resources, 2017,32(4):595-605.]
[21]	钟水映, 冯英杰. 中国省际间绿色发展福利测量与评价. 中国人口·资源与环境, 2017,27(9):196-204.
	[ ZHONG S Y, FENG Y J. Green development welfare measurement and evaluation among China's provinces. China Population, Resources and Environment, 2017,27(9):196-204.]
[22]	孟雪, 狄乾斌, 季建文. 京津冀城市群生态福利绩效水平测度及影响因素. 经济地理, 2020,40(1):181-186, 225.
	[ MENG X, DI Q B, JI J W. Measurement on the level of the urban ecological performance and analysis of influential factors in Beijing-Tianjin-Hebei Urban Agglomeration. Economic Geography, 2020,40(1):181-186, 225.]
[23]	方时姣, 肖权. 中国区域生态福利绩效水平及其空间效应研究. 中国人口·资源与环境, 2019,29(3):1-10.
	[ FANG S J, XIAO Q. Research on regional ecological well-being performance and spatial effect in China. China Population, Resources and Environment, 2019,29(3):1-10.]
[24]	龙亮军. 综合福利视角下中国生态文明建设绩效评价及国际比较. 自然资源学报, 2019,34(6):1259-1272.
	[ LONG L J. Evaluation of ecological civilization construction performance and its international comparison from the perspective of overall well-being. Journal of Natural Resources, 2019,34(6):1259-1272.]
[25]	杜慧彬, 黄立军, 张辰, 等. 中国省级生态福利绩效区域差异性分解和收敛性研究. 生态经济, 2019,35(3):187-193.
	[ DU H B, HUANG L J, ZHANG C, et al. Research on the regional difference decomposition and convergence mechanism of ecological well-being performance. Ecological Economics, 2019,35(3):187-193.]
[26]	BATTESE G E, COELLI T J. Frontier production functions, technical efficiency and panel data: With application to paddy farmers in India. Journal of Productivity Analysis, 1992,3(6):153-169. doi: 10.1007/BF00158774
[27]	逯进, 周惠民. 中国省域人力资本与经济增长耦合关系的实证分析. 数量经济技术经济研究, 2013,30(9):3-19, 36.
	[ LU J, ZHOU H M. Empirical analysis of the coupling relationship between human capital and economic growth in Chinese province. use efficiency in China. The Journal of Quantitative & Technical Economics, 2013,30(9):3-19, 36.]
[28]	肖黎明, 张仙鹏. 强可持续理念下绿色创新效率与生态福利绩效耦合协调的时空特征. 自然资源学报, 2019,34(2):312-324.
	[ XIAO L M, ZHANG X P. Spatio-temporal characteristics of coupling coordination between green innovation efficiency and ecological welfare performance under the concept of strong sustainability. Journal of Natural Resources, 2019,34(2):312-324.]
[29]	WANG J F, LI X H, CHRISTAKOS G, et al. Geographical detectors-based health risk assessment and its application in the neural tube defects study of the Heshun Region, China. International Journal of Geographical Information Science, 2010,24(1):107-127. doi: 10.1080/13658810802443457
[30]	单豪杰. 中国资本存量K的再估算: 1952—2006年. 数量经济技术经济研究, 2008,25(10):17-31.
	[ SHAN H J. Estimating the capital stock of China: 1952-2006. The Journal of Quantitative & Technical Economics, 2008,25(10):17-31.]
[31]	龙亮军. 中国主要城市生态福利绩效评价研究: 基于PCA-DEA方法和Malmquist指数的实证分析. 经济问题探索, 2019, (2):69-79.
	[ LONG L J. Measurement and evaluation of urban ecological well-being performance of 35 major cities in China based on PCA-DEA and Malmquist index method. Inquiry into Economic Issues, 2019, (2):69-79.]
[32]	田建国, 庄贵阳, 朱庄瑞. 新时代中国人类福祉的理论框架和测量. 中国人口·资源与环境, 2019,29(12):9-18.
	[ TIAN J G, ZHUANG G Y, ZHU Z R. Theoretical framework and measurement of human well-being in the New Era of China. China Population, Resources and Environment, 2019,29(12):9-18.]
[33]	周迪, 王雪芹. 中国碳排放效率与产业结构升级的耦合度及耦合路径. 自然资源学报, 2019,34(11):2305-2316.
	[ ZHOU D, WANG X Q. Research on coupling degree and coupling path between China's carbon emission efficiency and industrial structure upgrade. Journal of Natural Resources, 2019,34(11):2305-2316.]
[34]	张改素, 魏建飞, 丁志伟. 中国镇域工业化和城镇化综合水平的空间格局特征及其影响因素. 地理研究, 2020,39(3):627-650.
	[ ZHANG G S, WEI J F, DING Z W. Spatial pattern and its influencing factors of industrialization-urbanization comprehensive level in China at town level. Geographical Research, 2020,39(3):627-650.]
[35]	蒲英霞, 马荣华, 葛莹, 等. 基于空间马尔可夫链的江苏区域趋同时空演变. 地理学报, 2005,60(5):817-826. doi: 10.11821/xb200505013
	[ PU Y X, MA R H, GE Y, et al. Spatial-temporal dynamics of Jiangsu regional convergence with Spatial Markov chains approach. Acta Geographica Sinica, 2005,60(5):817-826.]
[36]	张红凤, 曲衍波. 我国城镇化发展与土地集约利用的时空耦合及调控格局. 经济理论与经济管理, 2018,38(10):44-54.
	[ ZHANG H F, QU Y B. Spatio-temporal coupling and regulation pattern of land intensive use and urbanization development. Economic Theory and Business Management, 2018,38(10):44-54.]

负向耦合（失调衰退）		正向耦合（协调发展）
D值	耦合类型	D值	耦合类型
0.000~0.099	极度失调衰退	0.500~0.599	勉强协调发展
0.100~0.199	严重失调衰退	0.600~0.699	初级协调发展
0.200~0.299	中度失调衰退	0.700~0.799	中级协调发展
0.300~0.399	轻度失调衰退	0.800~0.899	良好协调发展
0.400~0.499	濒临失调衰退	0.900~1.000	优质协调发展

类别	一级指标	二级指标	三级指标	单位
投入变量	投入强度	劳动从业	地均二三产业从业人员	人/km²
	投入强度	资本存量	地均城市固定资产存量	元/km²
	利用强度	建筑用地	平均建筑密度	%
		居住用地	居住用地占比	%
		道路设施	路网密度	km/km²
产出变量	经济效益	产业产值	地均二三产业产值	万元/km²
		零售总额	地均社会消费品零售额	万元/km²
		财政收入	地均财政收入	万元/km²

类别	一级指标	二级指标	三级指标	单位
投入变量	环境污染	废水排放	人均废水排放量	t/人
		废气排放	人均废气（SO₂）排放量	t/人
		烟尘排放	人均烟粉尘排放量	t/人
	资源消耗	电力消耗	人均用电量	kW·h/人
		水资源消耗	人均用水量	t/人
		土地资源消耗	人均建设用地面积	km²/人
产出变量	福利水平	经济发展	人均GDP	元
		教育水平	平均受教育年限	年
		健康状况	万人卫生技术人员	人

时间段/年	类型	4	5	6	7	8	9	10
2008—2012	4	1.000	0.000	0.000	0.000	0.000	0.000	0.000
	5	0.000	0.000	1.000	0.000	0.000	0.000	0.000
	7	0.000	0.000	1.000	0.000	0.000	0.000	0.000
	8	0.000	0.000	0.000	0.429	0.286	0.286	0.000
	9	0.000	0.000	0.000	0.000	0.118	0.853	0.029
	10	0.000	0.000	0.000	0.000	0.077	0.615	0.308
2013—2017	4	0.000	0.000	0.000	1.000	0.000	0.000	0.000
	5	0.000	0.333	0.000	0.333	0.333	0.000	0.000
	6	0.000	0.000	0.000	0.500	0.500	0.000	0.000
	7	0.000	0.000	1.000	0.000	0.000	0.000	0.000
	8	0.000	0.000	0.000	0.111	0.333	0.444	0.111
	9	0.000	0.000	0.000	0.000	0.059	0.706	0.235
	10	0.000	0.000	0.000	0.000	0.000	0.286	0.714

年份	椭圆面积/km²	椭圆周长/km	重心经度/°E	重心纬度°N	X轴标准差	Y轴标准差	旋转角/(°)
2008	536065.155	2702.850	111.155	36.812	326.676	522.372	88.170
2012	533069.369	2693.108	111.144	36.828	326.544	519.663	88.180
2017	532596.370	2697.379	111.123	36.799	324.456	522.544	87.766
