桐梓河流域输沙量变化及其对气候和人类活动的响应

doi:10.31497/zrzyxb.20191217

自然资源学报 ›› 2019, Vol. 34 ›› Issue (12): 2701-2716.doi: 10.31497/zrzyxb.20191217

桐梓河流域输沙量变化及其对气候和人类活动的响应

田义超^1,^2,^3,⁴(), 王世杰², 白晓永²(), 张强¹, 陶进¹, 张亚丽¹, 黄鹄⁴, 梁铭忠⁴, 周国清⁵, 劳燕玲¹

1. 北部湾大学资源与环境学院,钦州 535000
2. 中国科学院地球化学研究所环境地球化学国家重点实验室,贵阳 550081
3. 海洋地理信息资源开发利用重点实验室,钦州 535000
4. 北部湾大学广西北部湾海洋生物多样性养护重点实验室,钦州 535000
5. 桂林理工大学广西空间信息与测绘重点实验室,桂林 541004

收稿日期:2019-05-31 修回日期:2019-09-10 出版日期:2019-12-28 发布日期:2019-12-28
作者简介:
作者简介：田义超（1986- ）,男,陕西西安人,博士,工程师,主要从事资源环境遥感与GIS及海岸带生态环境监测的相关研究。E-mail: tianyichao1314@yeah.net
基金资助:
国家重点研发计划（2016YFC0502300）;广西自然科学基金项目（2018JJA150135）;广西教育厅基金项目（ZD2014138）;广西创新驱动发展专项（AA18118038）;广西北部湾海洋生物多样性养护重点实验室、北部湾海洋生物资源开发与保护重点实验室联合资助项目（2015ZB07）;广西科技计划项目（2017AB43024）

Sediment transport variation and its response to climate and human activities in Tongzi River Basin

TIAN Yi-chao^1,^2,^3,⁴(), WANG Shi-jie², BAI Xiao-yong²(), ZHANG Qiang¹, TAO Jin¹, ZHANG Ya-li¹, HUANG Hu⁴, LIANG Ming-zhong⁴, ZHOU Guo-qing⁵, LAO Yan-ling¹

1. College of Resources and Environment, Qinzhou 535000, Guangxi, China
2. State Key Laboratory of Environmental Geochemistry, Institute of Geochemistry, Chinese Academy of Sciences, Guiyang 550081, China
3. Key Laboratory of Marine Geographic Information Resources Development and Utilization, Qinzhou 535000, Guangxi, China
4. Guangxi Key Laboratory of Beibu Gulf Marine Biodiversity Conservation, Beibu Gulf University, Qinzhou 535000, Guangxi, China
5. Guangxi Key Laboratory for Geospatial Informatics and Geomatics Engineering, Guilin University of Technology, Guilin 541004, Guangxi, China

Received:2019-05-31 Revised:2019-09-10 Online:2019-12-28 Published:2019-12-28

摘要/Abstract

摘要：

基于桐梓河流域二郎坝水文站1975-2015年长时间序列降水、蒸散量及输沙量数据,通过累积距平法、Morlet小波分析和Hurst指数等数理统计方法;定量分析了流域40年以来输沙量的演变过程以及未来变化趋势,并应用累积量斜率变化率比较法定量评估了研究区降雨量变化和人类活动对流域输沙量变化的影响和贡献率。研究结果表明：（1）40年来流域降水量介于608.10~1132.70 mm之间,其平均值为829.00 mm,呈不显著减小趋势,年均减小量为-3.10 mm/a。（2）流域年输沙量介于0.44万~478.01万t,其平均值为64.68万t,呈极显著减少趋势,减少速率为-4.13万t/a。未来流域输沙量呈持续递减趋势,但10年后将呈现出增加趋势。（3）1989年为流域输沙量的突变年份,1989年以前呈现上升趋势,1989年之后呈显著下降趋势,且突变年份后输沙量较突变年份前减少了76.82%。（4）输沙量存在12年左右的年代际震荡周期,形成了两个高震荡周期和一个低震荡中心,高震荡周期位于1976-1979年以及1986-1992年,低震荡周期位于1979-1985年。（5）多年季节输沙量呈持续性减少趋势,夏季输沙量在8年之后可能呈现出增加趋势,而其他季节则不存在持续性周期。（6）以1975-1989为基准期,降水量和人类活动对流域输沙量的贡献在1990-2015年分别达到4.87%和95.14%;如果考虑蒸发量对流域输沙量的影响,则人类活动对桐梓河流域径流量变化的贡献率在2003-2015年会增加到98.65%。流域输沙量在1990-2015年的减少主要由人类活动控制,人类活动每年导致输沙量减少1.57万t。

关键词: 输沙量, 气候变化, 人类活动, 响应, 桐梓河流域

Abstract:

Based on the long time series data of annual precipitation, evapotranspiration and sediment transport of Erlangba Hydrological Station in Tongzi River Basin from 1975 to 2015, the evolution process and future trend of sediment transport in the past 40 years were quantitatively analyzed by the methods of cumulative anomaly, Morlet wavelet analysis and Hurst index, and the contribution rates of climate change and human activities to sediment transport in the study area were quantitatively assessed by the cumulative slope rate change comparison method. The results indicated that: (1) In the past 40 years, the precipitation in the basin ranged from 608.10 mm to 1132.70 mm, with an average of 829.00 mm. And the precipitation showed no significant decreasing trend, with an average annual decrease of -3.10 mm/a. (2) The annual sediment transport in the basin ranged from 0.44 to 478.01 million tons, with an average of 646.8 million tons. And it showed a very significant decreasing trend, with a reduction rate of -413000 t/a. In the future, sediment transport in the basin will continue to decrease, but it is likely to increase after 10 years. (3) In 1989, the sediment discharge in the basin changed abruptly. Before 1989, it showed an upward trend. After 1989, it showed a significant downward trend. The sediment discharge after the abrupt year decreased by 76.82% compared with that before the abrupt year. (4) The sediment discharge had a 12-year interdecadal oscillation period, forming two high oscillation periods and a low oscillation center. The high oscillation period was observed in 1976-1979 and 1986-1992, and the low oscillation period was found in 1979-1985. (5) The sediment transport in summer showed an increasing trend after 8 years, while there was no continuous cycle in other seasons. (6) Based on the period from 1975 to 1989, the contributions of precipitation and human activities to the sediment transport of Tongzi River Basin reached 4.8651% and 95.1385%, respectively in the period from 1989 to 2015. If the influence of evaporation on the sediment transport of the study area was taken into account, the contribution of human activities to the change of runoff of this basin would increase to 98.65% from 1989 to 2015. The decrease of sediment transport in the basin from 1990 to 2015 was mainly controlled by human activities, which reduced sediment transport by 157 thousand tons annually.

Key words: sediment transport, climate change, human activities, response, Tongzi River Basin

田义超, 王世杰, 白晓永, 张强, 陶进, 张亚丽, 黄鹄, 梁铭忠, 周国清, 劳燕玲. 桐梓河流域输沙量变化及其对气候和人类活动的响应[J]. 自然资源学报, 2019, 34(12): 2701-2716.

TIAN Yi-chao, WANG Shi-jie, BAI Xiao-yong, ZHANG Qiang, TAO Jin, ZHANG Ya-li, HUANG Hu, LIANG Ming-zhong, ZHOU Guo-qing, LAO Yan-ling. Sediment transport variation and its response to climate and human activities in Tongzi River Basin[J]. JOURNAL OF NATURAL RESOURCES, 2019, 34(12): 2701-2716.

图/表 16

图1

表1

图2

表2

图3

表3

图4

图5

图6

图7

表4

图8

表5

表6

图9

图10

参考文献 32

[1]	王绍武, 叶瑾琳. 近百年全球气候变暖的分析. 大气科学, 1995, 19(5): 545-553.
	[WANG S W, YE J L.An analysis of global warming during the last one hundred years. Scientia Atmospherica Sinica, 1995, 19(5): 545-553.]
[2]	刘晓东, 安芷生, 方建刚, 等. 全球气候变暖条件下黄河流域降水的可能变化. 地理科学, 2002, 22(5): 513-519.
	[LIU X D, AN Z S, FANG J G, et al.Possible variations of precipitation over the Yellow River Valley under the global-warming conditions. Scientia Geographica Sinica, 2002, 22(5): 513-519.]
[3]	曹梓豪, 赵清贺, 丁圣彦, 等. 坡度和植被盖度对河岸坡面侵蚀产沙特征的影响. 自然资源学报, 2017, 32(11): 1892-1904.
	[CAO Z H, ZHAO Q H, DING S Y, et al.Effect of slope gradient and vegetation cover on sediment yielding characteristics of the riparian slope. Journal of Natural Resources, 2017, 32(11): 1892-1904.]
[4]	RITA C S V R, RODRIGUEZ D A, TOMASELLA J, et al. Response of the river discharge in the Tocantins River Basin, Brazil, to environmental changes and the associated effects on the energy potential. Regional Environmental Change, 2019, 19(1): 193-204.
[5]	STOCKER T.IPCC, 2013: Technical Summary. In: Climate Change 2013: The Physical Science Basis. Contribution of Working Group I to the Fifth Assessment Report of the Intergovernmental Panel on Climate Change. Computational Geometry, 2013, 18(2): 95-123.
[6]	LI Z, ZHENG F L, LIU W Z, et al.Spatial distribution and temporal trends of extreme temperature and precipitation events on the Loess Plateau of China during 1961-2007. Quaternary International, 2010, 226(1): 92-100.
[7]	HE D, ZHANG K, TANG J, et al.Using fecal sterols to assess dynamics of sewage input in sediments along a human-impacted river-estuary system in eastern China. Science of the Total Environment, 2018, 636: 787-797.
[8]	赵阳, 曹文洪, 谢刚, 等. 黄土丘陵区小流域土地覆被变化对径流产沙量的影响. 中国环境科学, 2014, 34(8): 2111-2117.
	[ZHAO Y, CAO W H, XIE G, et al.Effect of land cover change on runoff and sediment yield of small watershed in loess hilly-gully region. China Environmental Science, 2014, 34(8): 2111-2117.]
[9]	MA X, ZHUANG C, WANG Z, et al.Positive leader velocity and discharge current considering leader branching under different air pressures. IEEE Transactions on Plasma Science, 2019, (99): 1-5.
[10]	顾朝军, 穆兴民, 孙文义, 等. 极端暴雨洪水及侵蚀产沙对延河流域植被恢复响应的比较研究. 自然资源学报, 2017, 32(10): 1755-1767.
	[GU C J, MU X M, SUN W Y, et al.Comparative analysis of the responses of rainstorm flood and sediment yield to vegetation rehabilitation in the Yanhe River Basin. Journal of Natural Resources, 2017, 32(10): 1755-1767.]
[11]	吴丽, 张爱静. 气候变化和人类活动对大凌河上游流域径流的影响. 水利水电科技进展, 2016, 36(2): 10-15.
	[WU L, ZHAGN A J.Effects of climate change and human activities on runoff in upper Daling River Basin. Advances in Science and Technology of Water Resources, 2016, 36(2): 10-15.]
[12]	WALLING D E, FANG D.Recent trends in the suspended sediment loads of the world's rivers. Global & Planetary Change, 2003, 39(1): 111-126.
[13]	WALLING D E.Human impact on land-ocean sediment transfer by the world's rivers. Geomorphology, 2006, 79(3): 192-216.
[14]	HUNTINGTON T G.Evidence for intensification of the global water cycle: Review and synthesis. Journal of Hydrology, 2006, 319(1): 83-95.
[15]	LU X X, RAN L S, LIU S, et al.Sediment loads response to climate change: A preliminary study of eight large Chinese rivers. International Journal of Sediment Research, 2013, 28(1): 1-14.
[16]	姚文艺, 冉大川, 陈江南. 黄河流域近期水沙变化及其趋势预测. 水科学进展, 2013, 24(5): 607-616.
	[YAO W Y, RAN D C, CHEN J N.Recent changes in runoff and sediment regimes and future projections in the Yellow River Basin. Advances in Water Science, 2013, 24(5): 607-616.]
[17]	郑培龙, 李云霞, 寇馨月, 等. 黄土高原藉河流域径流对气候和土地利用变化的响应. 水土保持通报, 2016, 36(2): 250-253.
	[ZHENG P L, LI Y X, KOU X Y, et al.Effects of climate variation and land use change on streamflow in Jiehe Watershed of Loess Plateau. Bulletin of Soil and Water Conservation, 2016, 36(2): 250-253.]
[18]	何旭强, 张勃, 孙力炜, 等. 气候变化和人类活动对黑河上中游径流量变化的贡献率. 生态学杂志, 2012, 31(11): 2884-2890.
	[HE X Q, ZHAGN B, SUN L W, et al.Contribution rates of climate change and human activity on the streamflow in upper and middle reaches of Heihe River Basin. Chinese Journal of Ecology, 2012, 31(11): 2884-2890.]
[19]	孔兰, 梁虹, 黄法苏, 等. 基于喀斯特流域径流量多时间尺度小波分析. 人民长江, 2008, 39(5): 17-18.
	[KONG L, LIANG H, HUANG F S, et al.Multi-time-scale analysis for runoff in karst basin based on wave-let transfer. Chinese Yangtze River, 2008, 39(5): 17-18.]
[20]	WU L H, WANG S J, BAI X Y, et al. Quantitative assessment of the impacts of climate change and human activities on runoff change in a typical karst watershed, SW China. Science of the Total Environment, 2017, 601-602: 1449-1465.
[21]	LUO G J, WANG S J, BAI X Y, et al.Delineating small karst watersheds based on digital elevation model and eco-hydrogeological principles. Solid Earth, 2016, 7(2): 1-28.
[22]	PENG T, WANG S J.Effects of land use, land cover and rainfall regimes on the surface runoff and soil loss on karst slopes in Southwest China. Catena, 2012: 53-62.
[23]	李野, 鲍新华, 王泰涵, 等. 白龙江上游径流变化特征及其与人类活动的关系. 科学技术与工程, 2016, 16(27): 88-93.
	[LI Y, BAO X H, WANG T H, et al.Runoff variation characteristics and its relationship with human activities in upper reaches of Bailong River Basin. Science Technology and Engineering, 2016, 16(27): 88-93.]
[24]	任婧宇, 彭守璋, 曹扬, 等. 1901-2014年黄土高原区域气候变化时空分布特征. 自然资源学报, 2018, 33(4): 621-633.
	[REN J Y, PENG S Z, CAO Y, et al.Spatiotemporal distribution characteristics of climate change in the Loess Plateau from 1901 to 2014. Journal of Natural Resources, 2018, 33(4): 621-633.]
[25]	陈伏龙, 王怡璇, 吴泽斌, 等. 气候变化和人类活动对干旱区内陆河径流量的影响: 以新疆玛纳斯河流域肯斯瓦特水文为例. 干旱区研究, 2015, 32(4): 692-697.
	[CHEN F L, WANG Y X, WU Z B, et al.Impacts of climate change and human activities on runoff of continental river in arid areas: Taking Kensiwate Hydrological station in Xinjiang Manas River Basin as an example. Arid Zone Research, 2015, 32(4): 692-697.]
[26]	HURST H E.Closure to long-term storage capacity of reservoirs by H. E. Hurst. Transactions of the American Society of Civil Engineers, 2013, 116: 804-808.
[27]	MANDELBROT B B, WALLIS J R.Robustness of the rescaled range R/S in the measurement of noncyclic long run statistical dependence. Water Resources Research, 1969, 5(5): 967-988.
[28]	王随继, 李玲, 颜明. 气候和人类活动对黄河中游区间产流量变化的贡献率. 地理研究, 2013, 32(3): 395-402.
	[WANG S J, LI L, YAN M.The contributions of climate change and human activities to the runoff yield changes in the middle Yellow River Basin. Geographical Research, 2013, 32(3): 395-402.]
[29]	NEUPAUER R M, POWELL K L.A fully-anisotropic Morlet wavelet to identify dominant orientations in a porous medium. Computers & Geosciences, 2005, 31(4): 465-471.
[30]	WANG S, FU B J, PIAO S, et al.Reduced sediment transport in the Yellow River due to anthropogenic changes. Nature Geoscience, 2015, 9(1): 38-41.
[31]	王雁, 丁永建, 叶柏生, 等. 黄河与长江流域水资源变化原因. 中国科学: 地球科学, 2013, (7): 1207-1219.
	[WANG Y, DING Y J, YE B S, et al.Contributions of climate and human activities to changes in runoff of the Yellow and Yangtze rivers from 1950 to 2008. Science China: Earth Sciences, 2013, 56: 1398-1412.]
[32]	代稳, 吕殿青, 李景保, 等. 气候变化和人类活动对长江中游径流量变化影响分析. 冰川冻土, 2016, 38(2): 488-497.
	[DAI W, LYU D Q, LI J B, et al.The effect of climate change and human activities on runoff in the middle reaches of the Yangtze River. Journal of Glaciology and Geocryology, 2016, 38(2): 488-497.]

时段/年	平均值/mm	极值比	变差系数
1975-1979	864.58	1.64	0.18
1980-1989	845.01	1.57	0.15
1990-1999	848.35	1.86	0.20
2000-2010	828.77	1.45	0.12
2011-2015	740.83	1.78	0.24
多年平均	829.00	1.86	0.17

时段/年	年均输沙量/万t	极值比	变差系数
1975-1979	647.58	11.25	0.96
1980-1989	581.11	6.65	0.38
1990-1999	692.59	19.89	0.91
2000-2010	272.72	14.99	0.93
2011-2015	218.75	85.35	1.99
多年平均	64.68	1084.89	1.33

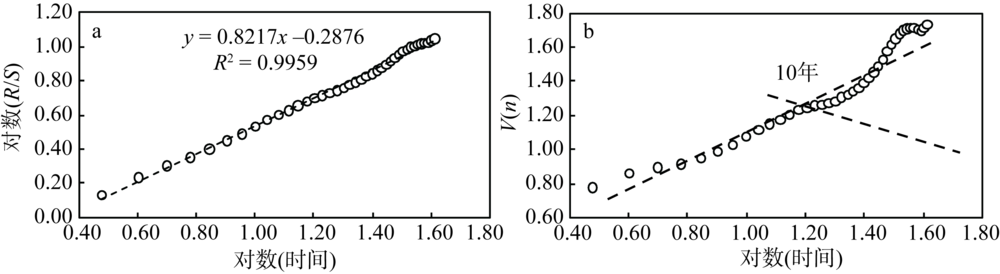

水文站	Kendall秩相关系数				累积滤波器法	Hurst指数	未来趋势	持续时间/年
水文站	M值	趋势	Ma=0.05	显著性	累积滤波器法	Hurst指数	未来趋势	持续时间/年
二郎坝	4.96	下降	1.96	显著	减少	0.82	持续减少	10

季节	Kendall秩相关系数				累积滤波器法	Hurst指数	未来趋势	持续时间/年
季节	M值	趋势	Ma=0.05	显著性	累积滤波器法	Hurst指数	未来趋势	持续时间/年
春季	1.35	下降	1.96	不显著	减少	0.96	持续减少	—
夏季	4.67	下降	1.96	显著	减少	0.73	持续减少	8
秋季	4.70	下降	1.96	显著	减少	0.77	持续减少	—
冬季	4.25	下降	1.96	显著	减少	0.79	持续减少	—

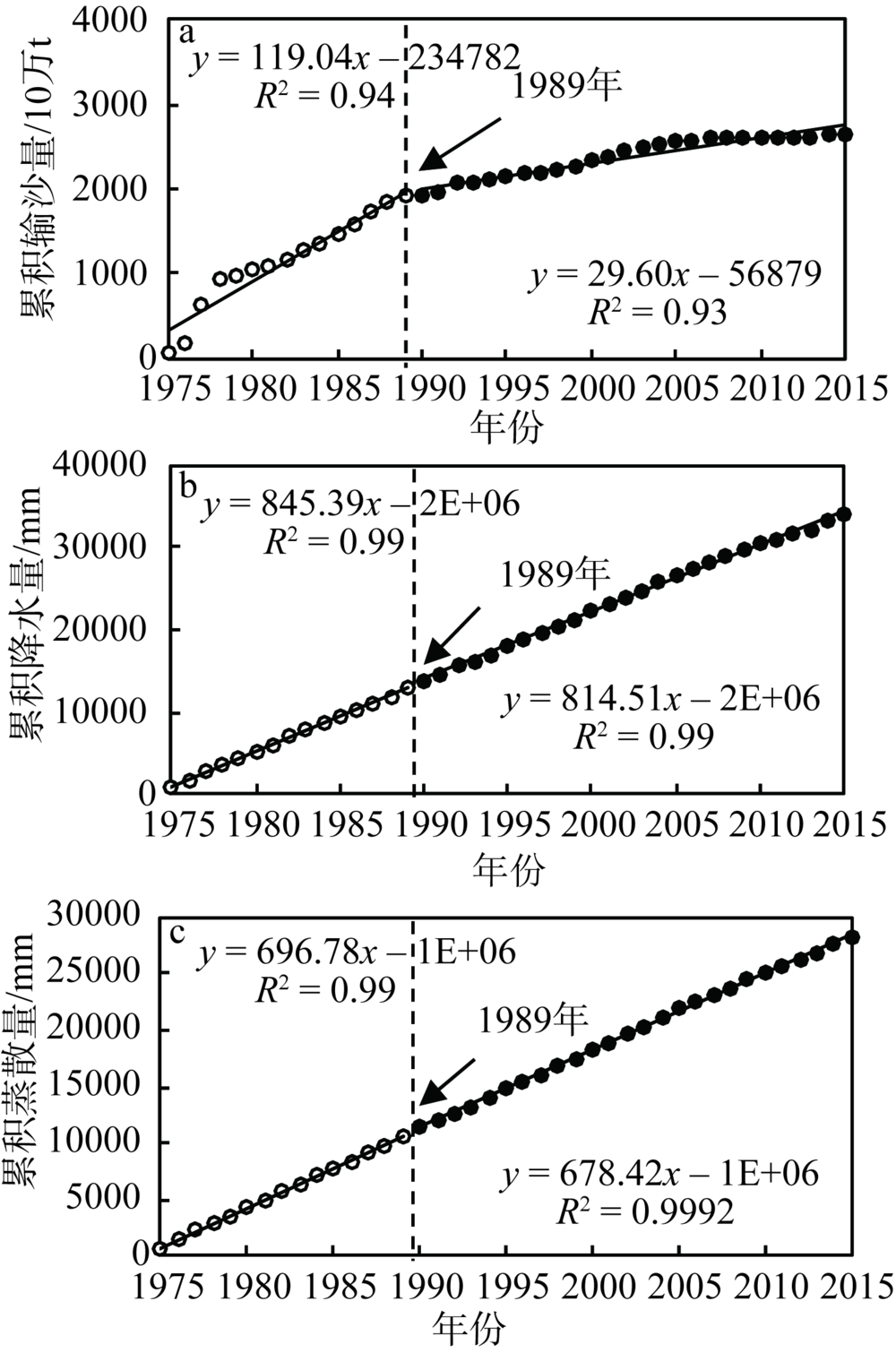

时期	1975-1989年(TA)	1990-2015年(TB)
累积泥沙量斜率/亿m³	119.04	29.60
累积降水量斜率/mm	845.39	814.51
累积蒸散量斜率/mm	696.78	678.42
