廊道与源地协调的国土空间生态安全格局构建

doi:10.31497/zrzyxb.20191019

摘要/Abstract

摘要：

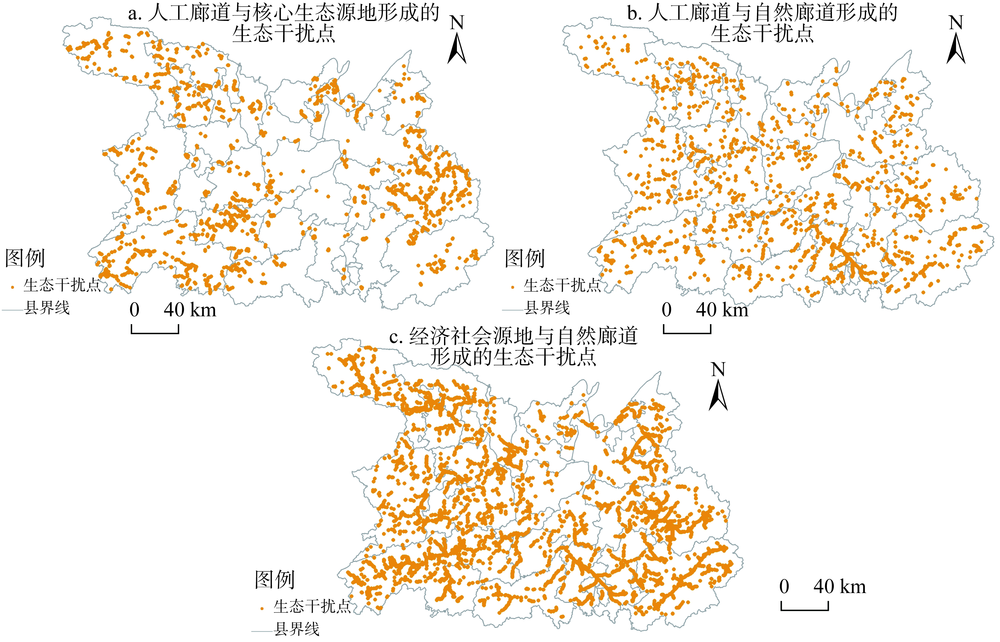

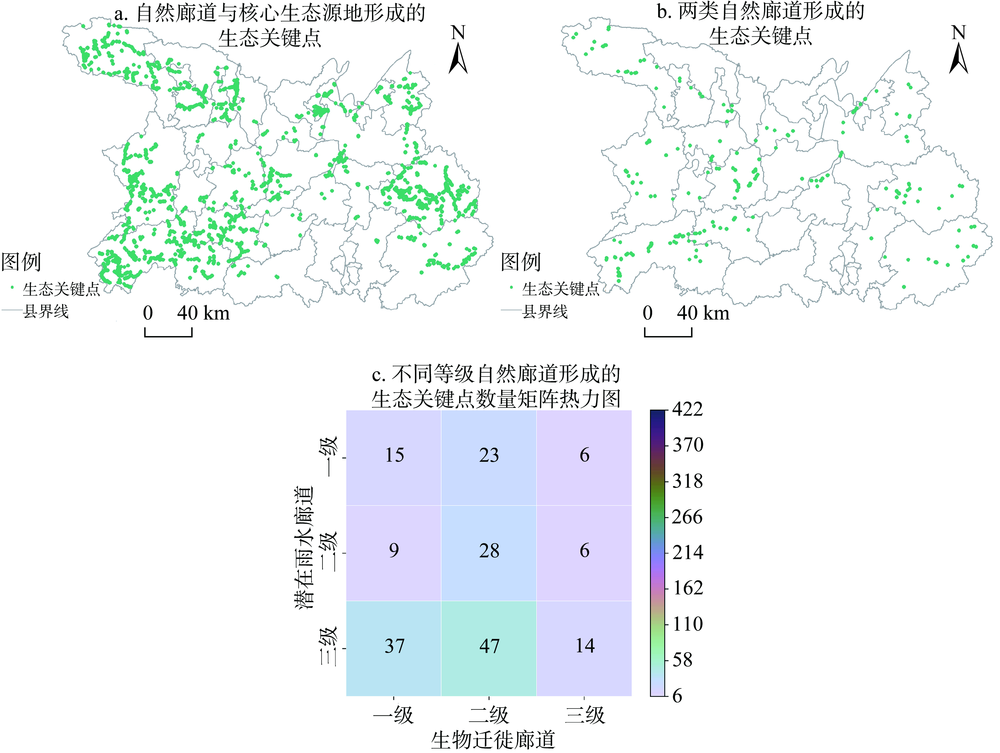

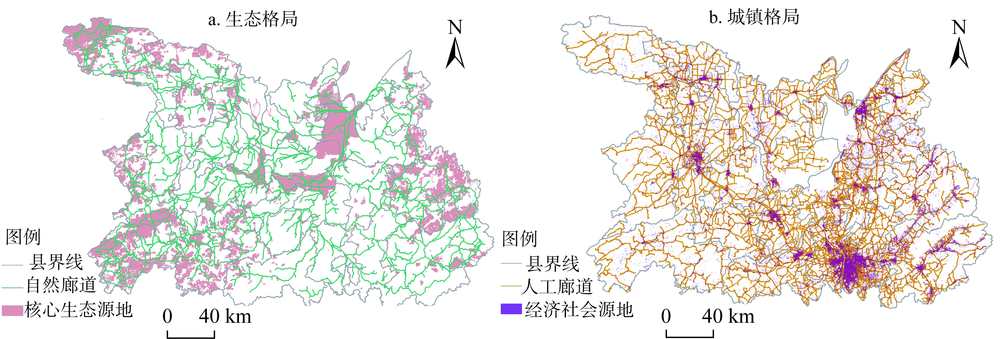

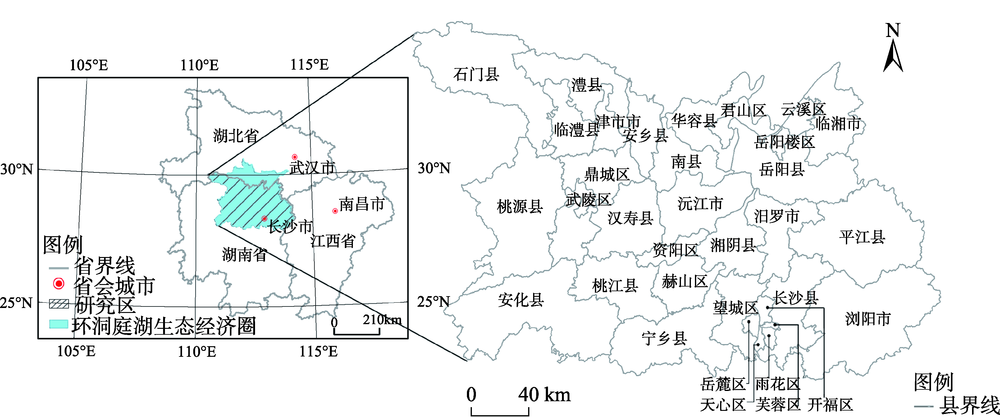

构建生态联系紧密且生态干扰更小的生态安全格局,是平衡国土空间规划中生态保护与经济社会发展的重要手段。在国土空间中,为形成廊道与源地的协调与保护兼顾的生态安全格局,以环洞庭湖区域33个县（区）为例,针对核心生态源地与自然廊道、经济社会源地与人工廊道分别形成的生态格局、城镇格局,揭示两者之间生态关键点及生态干扰点的分布特征,并差异化应对。结果表明：（1）为促进生态要素的空间联系,1537条生态廊道应纳入生态安全格局中,908处生态关键点需要保护,而0.48%的经济社会源地面积应退让给自然廊道。（2）受干扰的核心生态源地面积占比和自然廊道长度占比分别为1.36%、12.95%,8800处生态干扰点可采取缓冲、预警等主要应对策略,以协同发展自然—人工系统。（3）为满足生态保护用地应持续增加的需求,非核心生态源地内,面积分别为203.22 km²、125.67 km²、35.59 km²的一、二、三级自然廊道可分批作为生态安全格局未来发展的储备用地。研究结果可为协调国土空间规划体系中生态用地与城镇建设用地提供参考。

关键词: 国土空间, 生态安全格局, 生态廊道与源地保护, 生态战略点, 环洞庭湖区域

Abstract:

Constructing an ecological security pattern with closer ecological connections and less ecological disturbance is an important way to make contributions to the balance between ecological protection and economic development in national territorial planning. This paper aims to establish an ecological security pattern, which should take into account the coordination and protection of sources and corridors in the ecological system in an integrated manner. Taking 33 counties (districts) around Dongting Lake as examples, it puts forward the ecological pattern formed by the ecological essential source areas and natural corridors, and the urbanization pattern formed by economic society source areas and artificial corridors. Then, we reveal the spatial characteristics of the ecological positive points and ecological disturbing points between the ecological pattern and urbanization pattern, and offer artificial and natural countermeasures for the problems in particular areas of the ecological environment. The main conclusions can be drawn as follows: (1) There should be 1537 identified ecological corridors in the ecological security pattern and 908 key points urged to be protected, which takes up 0.48% of economic society areas for returning to the ecological core source area, so as to promote the spatial relationship between ecological elements; (2) There are 8800 ecological disturbing points, 1.36% of ecological essential source areas and 12.95% of the length of natural corridors are in disturbance. In order to collaboratively develop the natural and artificial systems, the interference areas should be managed by means of creating buffers, establishing an early-warning system, and so on; (3) Natural corridors of the first to third levels in non-essential patches can be measured as 203.22 km², 125.67 km² and 35.59 km², respectively, which can be defined as protected area of future ecological security pattern separately to meet a continuous increasing demand for ecological protection land. The results can provide a reference for the coordination of ecological land and urban construction land in the national territorial planning system.

Key words: national territorial space, ecological security pattern, ecological corridors and sources protection, ecological strategy point, Dongting Lake

韩宗伟, 焦胜, 胡亮, 杨宇民, 蔡青, 黎贝, 周敏. 廊道与源地协调的国土空间生态安全格局构建[J]. 自然资源学报, 2019, 34(10): 2244-2256.

HAN Zong-wei, JIAO sheng, HU Liang, YANG Yu-min, CAI Qing, LI Bei, ZHOU Min. Construction of ecological security pattern based on coordination between corridors and sources in national territorial space[J]. JOURNAL OF NATURAL RESOURCES, 2019, 34(10): 2244-2256.

图/表 12

图1

表1

图2

表2

表3

图3

表4

图4

表5

图5

图6

图7

参考文献 35

[1]	樊杰. 我国国土空间开发保护格局优化配置理论创新与“十三五”规划的应对策略. 中国科学院院刊, 2016, 31(1): 1-12.
	[FAN J.Theoretical innovation in optimization of protection and development of China's territorial space and coping strategy of 13th Five-Year Plan. Bulletin of Chinese Academy of Sciences, 2016, 31(1): 1-12.]
[2]	郧文聚, 高璐璐, 张超, 等. 从生态文明视角看我国土地利用的变化及影响. 环境保护, 2018, 46(20): 31-35.
	[YUN W J, GAO L L, ZHANG C, et al.The change and influence of land use in China from the perspective of ecological civilization. Environmental Protection, 2018, 46(20): 31-35.]
[3]	孙鸿烈, 郑度, 夏军, 等. 专家笔谈:资源环境热点问题. 自然资源学报, 2018, 33(6): 1092-1102.
	[SUN H L, ZHENG D, XIA J, et al.Experts interviews: Disputes on current hotspot issues in resources and environment. Journal of Natural Resources, 2018, 33(6): 1092-1102.]
[4]	焦胜, 曾光明, 何理, 等. 小城镇生态规划的不确定性分析. 城市环境与城市生态, 2003, 16(s1): 43-45.
	[JIAO S, ZENG G M, HE L, et al.Analysis of uncertainties in ecological planning for small-sized town. Urban Environment and Urban Ecology, 2003, 16(s1): 43-45.]
[5]	RAPPORT D J.Ecosystems not optimized: A reply. Journal of Aquatic Ecosystem Health, 1993, 2(1): 57-57.
[6]	HESS G R, FISCHER R A.Communicating clearly about conservation corridors. Landscape and Urban Planning, 2001, 55(3): 195-208.
[7]	KENCHINGTON R A, DAY J C.Zoning, a fundamental cornerstone of effective marine spatial planning: Lessons learnt from the great barrier reef, Australia. Journal of Coastal Conservation, 2011, 15(2): 271-278.
[8]	LIU J, MOONEY H, HULL V, et al.Systems integration for global sustainability. Science, 2015, 347(6225): 1258832.
[9]	叶鑫, 邹长新, 刘国华, 等. 生态安全格局研究的主要内容与进展. 生态学报, 2018, 38(10): 3382-3392.
	[YE X, ZOU C X, LIU G H, et al.Main research contents and advances in the ecological security pattern. Acta Ecologica Sinica, 2018, 38(10): 3382-3392.]
[10]	杨天荣, 匡文慧, 刘卫东, 等. 基于生态安全格局的关中城市群生态空间结构优化布局. 地理研究, 2017, 36(3): 441-452.
	[YANG T R, KUANG W H, LIU W D, et al.Optimizing the layout of eco-spatial structure in Guanzhong urban agglomeration based on the ecological security pattern. Geographical Research, 2017, 36(3): 441-452.]
[11]	俞孔坚, 王思思, 李迪华, 等. 北京城市扩张的生态底线: 基本生态系统服务及其安全格局. 城市规划, 2010, 34(2): 19-24.
	[YU K J, WANG S S, LI D H, et al.Ecological baseline for Beijing's urban sprawl: Basic ecosystem services and their security patterns. City Planning Review, 2010, 34(2): 19-24.]
[12]	丛佃敏, 赵书河, 于涛, 等. 综合生态安全格局构建与城市扩张模拟的城市增长边界划定: 以天水市规划区(2015-2030年)为例. 自然资源学报, 2018, 33(1): 14-26.
	[CONG D M, ZHAO S H, YU T, et al.Urban growth boundary delimitation method integrating comprehensive ecological security pattern and urban expansion simulation: A case study of planning areas in Tianshui city (2015-2030). Journal of Natural Resources, 2018, 33(1): 14-26.]
[13]	田健, 黄晶涛, 曾穗平. 基于复合生态平衡的城市边缘区生态安全格局重构: 以铜陵东湖地区为例. 中国园林, 2019, 35(2): 92-97.
	[TIAN J, HUANG JT, ZENG S P.Research on the reconstruction of ecological security pattern in urban fringe based on the compound ecological balance: A case study of Donghu district in Tongling city. Chinese Landscape Architecture, 2019, 35(2): 92-97.]
[14]	黄木易, 岳文泽, 冯少茹, 等. 基于MCR模型的大别山核心区生态安全格局异质性及优化. 自然资源学报, 2019, 34(4): 771-784.
	[HUANG M Y, YUE W Z, FENG S R, et al.Analysis of spatial heterogeneity of ecological security based on MCR model and ecological pattern optimization in the Yuexi county of the Dabie Mountain Area. Journal of Natural Resources, 2019, 34(4): 771-784.]
[15]	陈昕, 彭建, 刘焱序, 等. 基于“重要性—敏感性—连通性”框架的云浮市生态安全格局构建. 地理研究, 2017, 36(3): 471-484.
	[CHEN X, PENG J, LIU Y X, et al.Constructing ecological security patterns in Yunfu city based on the framework of importance-sensitivity-connectivity. Geographical Research, 2017, 36(3): 471-484.]
[16]	袁少雄, 陈军, 宫清华, 等. 基于Apache Spark机器学习的生态安全格局构建方法. 生态学报, 2019, 39(13): 1-12.
	[YUAN S X, CHEN J, GONG Q H, et al.An ecological security pattern construction method based on Apache Spark machine learning. Acta Ecologica Sinica, 2019, 39(13): 1-12.]
[17]	PENG J, ZHAO S Q, DONG J Q, et al.Applying ant colony algorithm to identify ecological security patterns in megacities. Environmental Modelling and Software, 2019, 117: 214-222.
[18]	彭保发, 郑俞, 刘宇. 耦合生态服务的区域生态安全格局研究框架. 地理科学, 2018, 38(3): 361-367.
	[PENG B F, ZHENG Y, LIU Y.Coupling ecosystem services and regional ecological security pattern. Scientia Geographical Sinica, 2018, 38(3): 361-367.]
[19]	李维佳, 马琳, 臧振华, 等. 基于生态红线的洱海流域生态安全格局构建. 北京林业大学学报, 2018, 40(7): 85-95.
	[LI W J, MA L, ZANG Z H, et al.Construction of ecological security patterns based on ecological red line in Erhai Lake Basin of Southwestern China. Journal of Beijing Forestry University, 2018, 40(7): 85-95.]
[20]	杨姗姗, 邹长新, 沈渭寿, 等. 基于生态红线划分的生态安全格局构建: 以江西省为例. 生态学杂志, 2016, 35(1): 250-258.
	[YANG S S, ZOU C X, SHEN W S, et al.Construction of ecological security patterns based on ecological red line: A case study of Jiangxi province. Chinese Journal of Ecology, 2016, 35(1): 250-258.]
[21]	安静, 徐明德, 孙凯迪, 等. 三级生态保护体系区划研究: 以山西省高平市为例. 环境科学与技术, 2018, 41(10): 226-232.
	[AN J, XU M D, SUN K D, et al.Research on delineation of three-level ecological conservation system: A case study in Gaoping city, Shanxi province. Environmental Science & Technology, 2018, 41(10): 226-232.]
[22]	刘军会, 高吉喜, 马苏, 等. 中国生态环境敏感区评价. 自然资源学报, 2015, 30(10): 1607-1616.
	[LIU J H, GAO J X, MA S, et al.Evaluation of ecological sensitivity in China. Journal of Natural Resources, 2015, 30(10): 1607-1616.]
[23]	俞孔坚. 生物保护的景观生态安全格局. 生态学报, 1999, 19(1): 8-15.
	[YU K J.Landscape ecological security patterns in biological con servation. Acta Ecologica Sinica, 1999, 19(1): 8-15.]
[24]	高敬. 北京等15省份生态保护红线划定方案获批. , 2018-2-12.
	[GAO JING.Layout of the ecological essential lines have been approved in 15 provinces including Beijing. , 2018-2-12.]
[25]	焦胜, 李振民, 高青, 等. 景观连通性理论在城市土地适宜性评价与优化方法中的应用. 地理研究, 2013, 32(4): 720-730.
	[JIAO S, LI Z M, GAO Q, et al.The application of landscape connectivity theory in urban ecology suitability assessment and optimization. Geographical Research, 2013, 32(4): 720-730.]
[26]	吴健生, 马洪坤, 彭建. 基于“功能节点—关键廊道”的城市生态安全格局构建: 以深圳市为例. 地理科学进展, 2018, 37(12): 1663-1671.
	[WU J S, MA H K, PENG J.Improving urban ecological security pattern based on functional nodes-key corridors: A case study of Shenzhen city. Progress in Geography, 2018, 37(12): 1663-1671.]
[27]	GUO R, WU T, LIU M G, et al.The construction and optimization of ecological security pattern in the Harbin-Changchun Urban Agglomeration, China. International journal of environmental research and public health, 2019, 16(7): 1-18.
[28]	刘昌明, 王中根, 杨胜天, 等. 地表物质能量交换过程中的水循环综合模拟系统(HIMS)研究进展. 地理学报, 2014, 69(5): 579-587.
	[LIU C M, WANG Z G, YANG S T, et al.Hydro-informatic modeling system: Aiming at water cycle in land surface material and energy exchange processes. Acta Geographica Sinica, 2014, 69(5): 579-587.]
[29]	胡飞, 余亦奇, 郑玥, 等. 生态保护红线划定方法研究. 规划师, 2018, 34(5): 108-114.
	[HU F, YU Y Q, ZHENG Y, et al.An innovative study of ecological red line delimitation. Planners, 2018, 34(5): 108-114.]
[30]	陈竹安, 况达, 危小建, 等. 基于MSPA与MCR模型的余江县生态网络构建. 长江流域资源与环境, 2017, 26(8): 1199-1207.
	[CHEN Z A, GUAN D, WEI X J, et al.Developing ecological networks based on MSPA and MCR: A case study in Yujiang county. Resources and Environment in the Yangtze River Basin, 2017, 26(8): 1199-1207.]
[31]	汤峰, 张蓬涛, 张贵军, 等. 基于生态敏感性和生态系统服务价值的昌黎县生态廊道构建. 应用生态学报, 2018, 29(8): 2675-2684.
	[TANG F, ZHANG P T, ZHANG G J, et al.Construction of ecological corridors in Changli county based on ecological sensitivity and ecosystem service values. Chinese Journal of Applied Ecology, 2018, 29(8): 2675-2684.]
[32]	朱强, 俞孔坚, 李迪华. 景观规划中的生态廊道宽度. 生态学报, 2005, 25(9): 2406-2412.
	[ZHU Q, YU K J, LI D H.The width of ecological corridor in landscape planning. Acta Ecologica Sinica, 2005, 25(9): 2406-2412.]
[33]	焦胜, 韩静艳, 周敏, 等. 基于雨洪安全格局的城市低影响开发模式研究. 地理研究, 2018, 37(9): 1704-1713.
	[JIAO S, HAN J Y, ZHOU M, et al.Low-impact urban development mode based on waterlogging security pattern. Geographical Research, 2018, 37(9): 1704-1713.]
[34]	FORMAN R, GODRON M. Landscape Ecology. New York: John Wiley & Sons, 1986: 121-155.
[35]	韩志勇, 王忠伟, 韩志刚. 生态交通研究进展. 生态经济, 2017, 33(12): 198-202.
	[HAN Z Y, WANG Z W, HAN Z G.Research progress on eco-traffic. Ecological Economy, 2017, 33(12): 198-202.]

数据类型	数据产品	来源	空间分辨率
湖南省环洞庭湖区核心生态源地	湖南省生态保护红线区空间数据（2018年）	湖南省自然资源厅	1∶25万
硬化的道路（乡道级别以上）	湖南省道路矢量数据（2015年）	国家地球系统科学数据共享服务平台	1∶25万
DEM	ASTER GDEM V2 版	地理空间数据云	30 m
土壤数据和土地覆被	中国土壤数据集（v1.1）	黑河计划数据管理中心	1∶100万
河网水系（三级河流以上）	中国河网水系矢量数据	地理空间数据云	1∶25万
城镇建设用地边界（乡镇级别以上）	Google 遥感影像（2017年）	作者目视解译提取	10 m

阻力因子	阻力系数	阻力因子	阻力系数
林地	10	沙地、裸地	450
水域	30	设施农用地	600
园地	100	农村道路	700
草地	200	公路	1000
耕地	300	村庄	1500
滩涂、沼泽	400	城镇	3500

因子	阻力分级					指标权重
因子	5	4	3	2	1	指标权重
高程/m	30~70	70~120	120~165	165~210	210以上	0.15
坡度/°	0~5	5~10	10~15	15~25	25以上	0.22
坡向	南	东南、西南	东、西	东北、西北	北	0.1
土壤类型	河潮土	—	水稻土	—	红壤土	0.23
覆被类型	城镇建设用地	农田	裸地	草地、湿地	林地	0.3

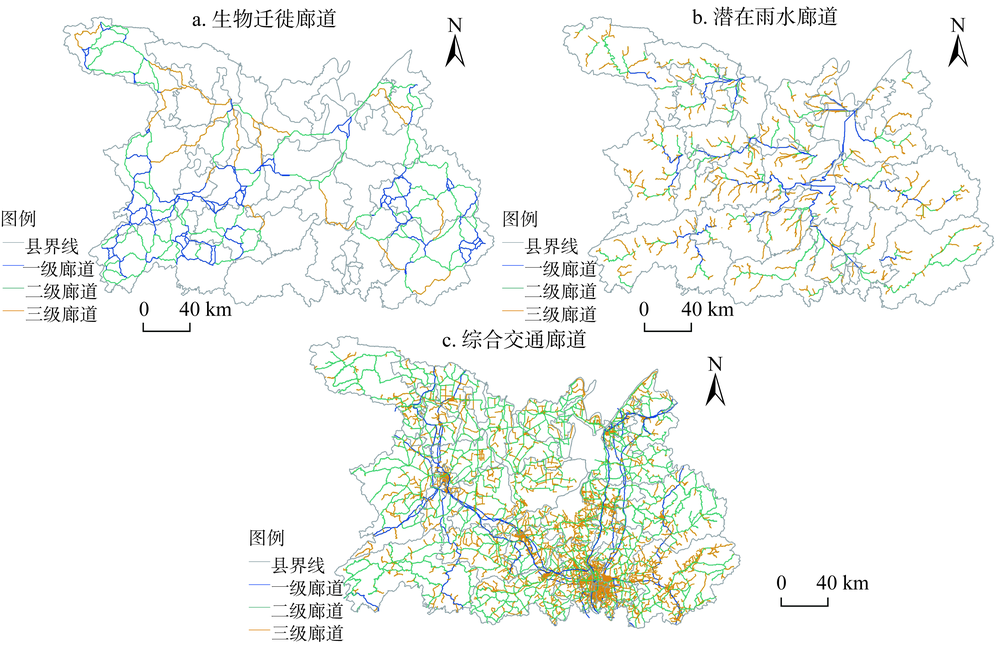

廊道类型及等级	生物迁徙廊道				潜在雨水廊道				综合交通廊道
廊道类型及等级	一级	二级	三级	汇总	一级	二级	三级	汇总	一级	二级	三级	汇总
面积/km²	329.89	187.95	23.85	541.69	13.79	15.99	21.1	50.88	542.72	1263.3	497.99	2304.01
长度/km	1649.45	2088.32	794.98	4532.75	1149.33	1776.54	3013.72	5939.59	3618.13	10527.51	12449.73	26595.38

廊道等级		核心生态源地				经济社会源地
廊道等级		有交点斑块数占比/%	廊道长度占比/%	廊道面积占比/%	平均最近邻距离/km	有交点斑块数占比/%	廊道长度占比/%	廊道面积占比/%	平均最近邻距离/km
生物迁徙廊道	一级	2.56	1.00	14.97	11.07	0.29	0.97	0.20	18.34
	二级	2.73	0.55	18.43	8.69	0.45	1.65	0.15	13.98
	三级	1.23	0.04	4.20	27.12	0.26	0.97	0.03	21.58
	总体	6.52	1.60	37.61	5.88	1.00	3.59	0.38	10.11
潜在雨水廊道	一级	1.03	0.03	6.64	19.44	0.31	1.45	0.02	17.55
	二级	1.40	0.02	5.76	8.82	0.69	3.09	0.04	7.28
	三级	2.79	0.03	8.75	5.22	1.17	4.82	0.04	4.61
	总体	5.22	0.08	21.16	4.68	2.17	9.36	0.10	3.77
综合交通廊道	一级	1.46	0.14	0.48	17.79	1.40	4.59	4.08	14.54
	二级	6.18	1.02	4.33	2.68	6.34	11.95	8.50	1.79
	三级	3.49	0.19	2.48	2.84	5.05	21.99	5.21	1.74
	总体	11.14	1.36	7.29	1.72	12.79	38.53	17.80	0.91
