基于空间决策的区域城镇发展与农业生产协调布局优化——以江西省临川区为例

doi:10.31497/zrzyxb.20190307

摘要/Abstract

摘要：

科学地进行城镇发展空间与农业生产空间的划分,是解决城市无序发展问题和粮食安全问题的重要途径。本文以江西省临川区为例,借助ArcGIS、GeoDa等软件,对临川区耕地综合质量及其自相关关系进行评价,以此确定永久基本农田初步划定成果,采用多准则判断CA模型对城市扩张进行模拟,通过两方面结果的对比与调整,结合城市发展方向、发展模式和耕地国家利用等别,进行永久基本农田和城市开发边界的划定。结果表明：永久基本农田划定面积为593.46 km²,初步划定结果主要分布于上顿渡镇、崇岗镇、河埠乡和荣山镇等耕地综合质量较高,且多为高—高聚集的区域。经过城市扩张模拟结果可知,临川区城市建设用地面积较为显著增加,主要增加面积分布于展坪乡、上顿渡镇以及钟岭街道。城市发展方向和城市扩张模型分析结果显示,临川区城市建设用地主要向西北、东南、西南方向扩张,扩张类型主要为蔓延式扩展。根据耕地国家利用等别将初步划定永久基本农田区分为可调入区与可调出区,从而进行永久基本农田区与城市开发边界的优化与协调,形成永久基本农田区与城市开发边界的最终成果。研究结果可为保护耕地资源、避免城市的无序扩张提供参考,也可为今后的划定工作提供借鉴。

关键词: 耕地, 城市开发边界, 自相关, 城市扩张模拟, 临川区, 耕地, 城市开发边界, 自相关, 城市扩张模拟, 临川区

Abstract:

Scientific division of urban development space and agricultural production space is an important way to solve the problems of unregulated urban development and food security. Taking Linchuan district in Jiangxi province as an example, this paper uses ArcGIS, GeoDa software and others to establish a preliminary demarcation of the permanent basic farmland based on the comprehensive quality and autocorrelation of cultivated land in Linchuan district, and uses a multi-criterion CA model to simulate urban expansion. Through the comparison and adjustment of the results of the two aspects, combined with the direction of urban development, urban development model and the farmland natural utility grade, the demarcation of the boundary between the permanent basic farmland and the urban development will be carried out. The results showed that the demarcated area of permanent basic farmland was 593.46 km². The preliminary delimitation results were mainly distributed in Shangdundu town, Chonggang town, Hejian town, Rongshan town, etc. The comprehensive quality of cultivated land was high, and most of it was high-high gathered area. According to the results of urban expansion simulations, the area of urban construction land in Linchuan district has increased significantly, and the area mainly increased in Zhanping township, Shangdundu town, and Zhongling street. The results of urban development direction analysis and urban expansion model analysis show that the urban construction land in Linchuan district mainly expands to the northwest, southeast, and southwest, and the expansion type is mainly a spreading one. According to the farmland natural utility grade, the initially demarcated permanent basic farmland is divided into an adjustable-in area and an adjustable-out area, so that the optimization and coordination of the permanent basic farmland area and the urban development boundary are carried out, and the final results are obtained between the permanent basic farmland area and the urban development boundary. It is predicted that the boundary area of urban development will reach 142.59 km² by 2030, with a difference of 4.21 km² out of a total of preliminary delineation of permanent basic farmland area. The research results can provide reference for the protection of cultivated land resources and avoid the disorderly expansion of cities, and can also provide reference for the future delineation work.

Key words: cultivated land, urban development boundary, autocorrelation, urban expansion simulation, Linchuan district, cultivated land, urban development boundary, autocorrelation, urban expansion simulation, Linchuan district

赵越, 罗志军, 曹丽萍, 钟珊, 赵杰. 基于空间决策的区域城镇发展与农业生产协调布局优化——以江西省临川区为例[J]. 自然资源学报, 2019, 34(3): 526-538.

ZHAO Yue, LUO Zhi-jun, CAO Li-ping, ZHONG Shan, ZHAO Jie. Layout optimization of regional urban development and agricultural production based on spatial decision-making: A case study of Linchuan district in Jiangxi province[J]. JOURNAL OF NATURAL RESOURCES, 2019, 34(3): 526-538.

图/表 20

图1

图2

表1

图3

表2

图4

图5

图6

图7

表3

参考文献 31

[1]	闫梅, 黄金川, 彭实铖. 中部地区建设用地扩张对耕地及粮食生产的影响. 经济地理, 2011, 31(7): 1157-1164.
	[YAN M, HUANG J C, PENG S C, et al.The influence of construction land expansion to cultivated land and grain production in Central China. Economic Geography, 2011, 31(7): 1157-1164.]
[2]	肖琳, 田光进, 乔治. 基于Agent的城市扩张占用耕地动态模型及模拟. 自然资源学报, 2014, 29(3): 516-527.
	[XIAO L, TIAN G J, QIAO Z.An Agent-based approach for urban encroachment on cropland dynamic model and simulation. Journal of Natural Resources, 2014, 29(3): 516-527.]
[3]	陈景芹, 陈雯, 孙伟, 等. 基于适宜性分区的规划用地协调性与合理性评估: 以无锡市区为例. 长江流域资源与环境, 2011, 20(7): 866-872.
	[CHEN J Q, CHEN W, SUN W, et al.Rational and coordination evaluation of land use in planning based on regionalization of regional potential developed: A case study of Wuxi city. Resources and Environment in the Yangtze Basin, 2011, 20(7): 866-872.]
	[CHEN J Q, CHEN W, SUN W, et al.Rational and coordination evaluation of land use in planning based on regionalization of regional potential developed: A case study of Wuxi city. Resources and Environment in the Yangtze Basin, 2011, 20(7): 866-872.]
[4]	许景权. 空间规划改革视角下的城市开发边界研究: 弹性、规模与机制. 规划师, 2016, 32(6): 5-9.
	许景权. 空间规划改革视角下的城市开发边界研究: 弹性、规模与机制. 规划师, 2016, 32(6): 5-9.
	[XU J Q.A study on the boundary of urban development from the perspective of spatial planning reform: Elasticity, scale, and mechanism. Planner, 2016, 32(6): 5-9.]
	[XU J Q.A study on the boundary of urban development from the perspective of spatial planning reform: Elasticity, scale, and mechanism. Planner, 2016, 32(6): 5-9.]
[5]	LIAO J, TANG L, SHAO G, et al.A neighbor decay cellular automata approach for simulating urban expansion based on particle swarm intelligence. International Journal of Geographical Information Science, 2014, 28(4):720-738.
	LIAO J, TANG L, SHAO G, et al.A neighbor decay cellular automata approach for simulating urban expansion based on particle swarm intelligence. International Journal of Geographical Information Science, 2014, 28(4):720-738.
[6]	沈思思, 陈健, 耿楠森, 等. 快速城镇化地区的城市开发边界划定方法探索: 以榆林市为例. 城市发展研究, 2015, 22(6): 103-111.
	沈思思, 陈健, 耿楠森, 等. 快速城镇化地区的城市开发边界划定方法探索: 以榆林市为例. 城市发展研究, 2015, 22(6): 103-111.
	[SHEN S S, CHEN J, GENG N S, et al.Exploring the defining method of urban growth boundary in rapid urbanization area: Taking Yulin city as example. Urban Development Studies, 2015, 22(6): 103-111.]
	[SHEN S S, CHEN J, GENG N S, et al.Exploring the defining method of urban growth boundary in rapid urbanization area: Taking Yulin city as example. Urban Development Studies, 2015, 22(6): 103-111.]
[7]	蔡庚洋, 李铣, 郑荣泉. 博弈机理下的城市开发边界划定耦合优化研究. 城市规划, 2017, 41(3): 19-24.
	蔡庚洋, 李铣, 郑荣泉. 博弈机理下的城市开发边界划定耦合优化研究. 城市规划, 2017, 41(3): 19-24.
	[CAI G Y, LI X, ZHENG R Q, et al.Study on coupling optimization for establishing urban growth boundary under game theory. City Planning Review, 2017, 41(3): 19-24.]
	[CAI G Y, LI X, ZHENG R Q, et al.Study on coupling optimization for establishing urban growth boundary under game theory. City Planning Review, 2017, 41(3): 19-24.]
[8]	匡晓明, 魏本胜, 王路. 规模与生态增长并举的城市开发边界划定: 以东湖国家自主创新示范区为例. 规划师, 2016, 32(6): 10-15.
	匡晓明, 魏本胜, 王路. 规模与生态增长并举的城市开发边界划定: 以东湖国家自主创新示范区为例. 规划师, 2016, 32(6): 10-15.
	[KUANG X M, WEI B S, WANG L.Urban development boundary delimitation for both scale and ecology growth: East Lake innovation model district case. Planner, 2016, 32(6): 10-15.]
	[KUANG X M, WEI B S, WANG L.Urban development boundary delimitation for both scale and ecology growth: East Lake innovation model district case. Planner, 2016, 32(6): 10-15.]
[9]	冯徽徽, 刘慧平. 基于误差反馈控制的变系数城市扩张模型构建及应用. 地理科学, 2014, 34(5): 594-600.
	冯徽徽, 刘慧平. 基于误差反馈控制的变系数城市扩张模型构建及应用. 地理科学, 2014, 34(5): 594-600.
	[FENG H H, LIU H P.The variable-coefficient urban growth model based on the Error Feedback Control. Scientia Geographic Sinica, 2014, 34(5): 594-600.]
	[FENG H H, LIU H P.The variable-coefficient urban growth model based on the Error Feedback Control. Scientia Geographic Sinica, 2014, 34(5): 594-600.]
[10]	SAKIEH Y, AMIRI B J, DANEKAR A, et al.Simulating urban expansion and scenario prediction using a cellular automata urban growth model, SLEUTH, through a case study of Karaj city, Iran. Journal of Housing & the Built Environment, 2015, 30(4): 591-611.
	SAKIEH Y, AMIRI B J, DANEKAR A, et al.Simulating urban expansion and scenario prediction using a cellular automata urban growth model, SLEUTH, through a case study of Karaj city, Iran. Journal of Housing & the Built Environment, 2015, 30(4): 591-611.
[11]	钱凤魁, 王秋兵, 边振兴, 等. 永久基本农田划定和保护理论探讨. 中国农业资源与区划, 2013, 34(3): 22-27.
	钱凤魁, 王秋兵, 边振兴, 等. 永久基本农田划定和保护理论探讨. 中国农业资源与区划, 2013, 34(3): 22-27.
	[QIAN F K, WANG Q B, BIAN Z X, et al.Discussion about the permanent basic farmland planning and protection. Chinese Journal of Agricultural Resources and Regional Planning, 2013, 34(3): 22-27.]
	[QIAN F K, WANG Q B, BIAN Z X, et al.Discussion about the permanent basic farmland planning and protection. Chinese Journal of Agricultural Resources and Regional Planning, 2013, 34(3): 22-27.]
[12]	杨建宇, 徐凡, 刘光成, 等. 基于TOPSIS算法的永久基本农田划定方法. 农业机械学报, 2017, 48(8): 133-139.
	杨建宇, 徐凡, 刘光成, 等. 基于TOPSIS算法的永久基本农田划定方法. 农业机械学报, 2017, 48(8): 133-139.
	[YANG J Y, XU F, LIU G C, et al.Demarcation method of permanent prime cultivated land based on TOPSIS. Transactions of the CSAM, 2017, 48(8): 133-139.]
	[YANG J Y, XU F, LIU G C, et al.Demarcation method of permanent prime cultivated land based on TOPSIS. Transactions of the CSAM, 2017, 48(8): 133-139.]
[13]	钟珊, 赵小敏, 郭熙, 等. 贵溪市城市周边永久基本农田划定研究. 江西农业大学学报, 2017, 39(2): 419-426.
	钟珊, 赵小敏, 郭熙, 等. 贵溪市城市周边永久基本农田划定研究. 江西农业大学学报, 2017, 39(2): 419-426.
	[ZHONG S, ZHAO X M, GUO X, et al.Assignment of permanent prime farmland around Guixi city. Acta Agriculturae Universitatis Jiangxiensis, 2017, 39(2): 419-426.]
	[ZHONG S, ZHAO X M, GUO X, et al.Assignment of permanent prime farmland around Guixi city. Acta Agriculturae Universitatis Jiangxiensis, 2017, 39(2): 419-426.]
[14]	邹静源. 永久性基本农田的划定与保护研究. 雅安: 四川农业大学, 2016.
	邹静源. 永久性基本农田的划定与保护研究. 雅安: 四川农业大学, 2016.
	[ZOU J Y.Delineation and protection of permanent basic farmland. Ya'an: Sichuan Agricultural University, 2016.]
	[ZOU J Y.Delineation and protection of permanent basic farmland. Ya'an: Sichuan Agricultural University, 2016.]
[15]	任艳敏, 孙九林, 刘玉, 等. 县域永久基本农田划定方法研究. 农业机械学报, 2017, 48(4): 135-141.
	任艳敏, 孙九林, 刘玉, 等. 县域永久基本农田划定方法研究. 农业机械学报, 2017, 48(4): 135-141.
	[REN Y M, SUN J L, LIU Y, et al.Delineation method of permanent basic farmland on a county scale. Transactions of the Chinese Society for Agricultural Machinery, 2017, 48(4): 135-141.]
	[REN Y M, SUN J L, LIU Y, et al.Delineation method of permanent basic farmland on a county scale. Transactions of the Chinese Society for Agricultural Machinery, 2017, 48(4): 135-141.]
[16]	朱美青, 黄宏胜, 史文娇, 等. 基于多规合一的基本农田划定研究: 以江西省余江县为例. 自然资源学报, 2016, 31(12): 2111-2121.
	朱美青, 黄宏胜, 史文娇, 等. 基于多规合一的基本农田划定研究: 以江西省余江县为例. 自然资源学报, 2016, 31(12): 2111-2121.
	[ZHU M Q, HUANG H S, SHI W J, et al.The research of prime farmland demarcation based on multi-planning-in-one: A case study of Yujiang county, Jiangxi province. Journal of Natural Resources, 2016, 31(12): 2111-2121.]
	[ZHU M Q, HUANG H S, SHI W J, et al.The research of prime farmland demarcation based on multi-planning-in-one: A case study of Yujiang county, Jiangxi province. Journal of Natural Resources, 2016, 31(12): 2111-2121.]
[17]	汤思阳, 雷国平, 张慧, 等. 基于耕地质量评价的基本农田划定方法. 水土保持研究, 2013, 20(1): 173-176.
	汤思阳, 雷国平, 张慧, 等. 基于耕地质量评价的基本农田划定方法. 水土保持研究, 2013, 20(1): 173-176.
	[TANG S Y, LEI G P, ZHANG H, et al.Method of basic farmland demarcation based on the quality of cultivated land evaluation. Research of Soil and Water Conservation, 2013, 20(1): 173-176.]
	[TANG S Y, LEI G P, ZHANG H, et al.Method of basic farmland demarcation based on the quality of cultivated land evaluation. Research of Soil and Water Conservation, 2013, 20(1): 173-176.]
[18]	韦仕川, 熊昌盛, 栾乔林, 等. 基于耕地质量指数局部空间自相关的耕地保护分区. 农业工程学报, 2014, 30(18): 249-256.
	韦仕川, 熊昌盛, 栾乔林, 等. 基于耕地质量指数局部空间自相关的耕地保护分区. 农业工程学报, 2014, 30(18): 249-256.
	[WEI S C, XIONG C S, LUAN Q L, et al.Protection zoning of arable land quality index based on local spatial autocorrelation. Transaction of the CSAE, 2014, 30(18): 249-256.]
	[WEI S C, XIONG C S, LUAN Q L, et al.Protection zoning of arable land quality index based on local spatial autocorrelation. Transaction of the CSAE, 2014, 30(18): 249-256.]
[19]	常变蓉, 李仁东, 徐兴建, 等. 基于GIS空间自相关的江汉平原钉螺分布特征. 长江流域资源与环境, 2014, 23(7): 972-978.
	常变蓉, 李仁东, 徐兴建, 等. 基于GIS空间自相关的江汉平原钉螺分布特征. 长江流域资源与环境, 2014, 23(7): 972-978.
	[CHANG B R, LI R D, XU X J, et al.Analysis of oncomelania hupensis's distribution characteristics in Jianghan Plain based on GIS spatial autocorrelation. Resources and Environment in the Yangtze Basin, 2014, 23(7): 972-978.]
	[CHANG B R, LI R D, XU X J, et al.Analysis of oncomelania hupensis's distribution characteristics in Jianghan Plain based on GIS spatial autocorrelation. Resources and Environment in the Yangtze Basin, 2014, 23(7): 972-978.]
[20]	马世发, 艾彬, 念沛豪. 基于约束性CA的土地利用规划预评估及警情探测. 地理与地理信息科学, 2014, 30(4): 51-55, 2.
	马世发, 艾彬, 念沛豪. 基于约束性CA的土地利用规划预评估及警情探测. 地理与地理信息科学, 2014, 30(4): 51-55, 2.
	[MA S F, AI B, NIAN P H.Pre-assessment and warning of land use planning with constrained cellular automata. Geography and Geo-Information Science, 2014, 30(4): 51-55, 2.]
	[MA S F, AI B, NIAN P H.Pre-assessment and warning of land use planning with constrained cellular automata. Geography and Geo-Information Science, 2014, 30(4): 51-55, 2.]
[21]	龙瀛, 韩昊英, 毛其智. 利用约束性CA制定城市增长边界. 地理学报, 2009, 64(8): 999-1008.
	龙瀛, 韩昊英, 毛其智. 利用约束性CA制定城市增长边界. 地理学报, 2009, 64(8): 999-1008.
	[LONG Y, HAN H Y, MAO Q Z.Establishing urban growth boundaries using constrained CA. Acta Geographica Sinica, 2009, 64(8): 999-1008.]
	[LONG Y, HAN H Y, MAO Q Z.Establishing urban growth boundaries using constrained CA. Acta Geographica Sinica, 2009, 64(8): 999-1008.]
[22]	周锐, 王新军, 苏海龙, 等. 基于生态安全格局的城市增长边界划定: 以平顶山新区为例. 城市规划学刊, 2014, (4): 57-63.
	周锐, 王新军, 苏海龙, 等. 基于生态安全格局的城市增长边界划定: 以平顶山新区为例. 城市规划学刊, 2014, (4): 57-63.
	[ZHOU R, WANG X J, SU H L, et al.Delimitation of urban growth boundary based on ecological security pattern. Urban Planning Forum, 2014, (4): 57-63.]
	[ZHOU R, WANG X J, SU H L, et al.Delimitation of urban growth boundary based on ecological security pattern. Urban Planning Forum, 2014, (4): 57-63.]
[23]	刘小平, 黎夏, 彭晓鹃. “生态位”元胞自动机在土地可持续规划模型中的应用. 生态学报, 2007, 27(6): 2391-2402.
	刘小平, 黎夏, 彭晓鹃. “生态位”元胞自动机在土地可持续规划模型中的应用. 生态学报, 2007, 27(6): 2391-2402.
	[LIU X P, LI X, PENG X J.Niche-based cellular automata for sustainable land use planning. Acta Ecologica Sinica, 2007, 27(6): 2391-2402.]
	[LIU X P, LI X, PENG X J.Niche-based cellular automata for sustainable land use planning. Acta Ecologica Sinica, 2007, 27(6): 2391-2402.]
[24]	周丹. 基于地理加权与元胞自动机的城市空间模拟. 大连: 大连理工大学, 2010.
	周丹. 基于地理加权与元胞自动机的城市空间模拟. 大连: 大连理工大学, 2010.
	[ZHOU D.Simulation of urban spatial based on geographic weighted regression and cellular automata. Dalian: Dalian University of technology, 2010.]
	[ZHOU D.Simulation of urban spatial based on geographic weighted regression and cellular automata. Dalian: Dalian University of technology, 2010.]
[25]	王雪微, 王士君, 宋飏, 等. 长春市城市建设用地演进的空间识别及影响机制研究. 地理科学, 2015, 35(7): 873-881.
	王雪微, 王士君, 宋飏, 等. 长春市城市建设用地演进的空间识别及影响机制研究. 地理科学, 2015, 35(7): 873-881.
	[WANG X W, WANG S J, SONG Y, et al.Space recognition and influence mechanism of urban construction land evolution in Changchun city. Scientia Geographica Sinica, 2015, 35(7): 873-881.]
	[WANG X W, WANG S J, SONG Y, et al.Space recognition and influence mechanism of urban construction land evolution in Changchun city. Scientia Geographica Sinica, 2015, 35(7): 873-881.]
[26]	杨立国, 周国华. 怀化城市形态演变特征及影响因素. 地理科学进展, 2010, 29(5): 627-632.
	杨立国, 周国华. 怀化城市形态演变特征及影响因素. 地理科学进展, 2010, 29(5): 627-632.
	[YANG L G, ZHOU G H.Evolution characteristics of the urban morphology and its forming mechanism in Huaihua. Progress in Geography, 2010, 29(5): 627-632.]
	[YANG L G, ZHOU G H.Evolution characteristics of the urban morphology and its forming mechanism in Huaihua. Progress in Geography, 2010, 29(5): 627-632.]
[27]	陆张维, 徐丽华, 吴次芳, 等. 基于凸壳原理的杭州城市扩展形态演化分析. 地理科学, 2015, 35(12): 1533-1541.
	陆张维, 徐丽华, 吴次芳, 等. 基于凸壳原理的杭州城市扩展形态演化分析. 地理科学, 2015, 35(12): 1533-1541.
	[LU Z W, XU L H, WU C F, et al.The evolution of urban expansion morphology in Hangzhou based on principle of Convex Hull. Scientia Geographica Sinica, 2015, 35(12): 1533-1541.]
	[LU Z W, XU L H, WU C F, et al.The evolution of urban expansion morphology in Hangzhou based on principle of Convex Hull. Scientia Geographica Sinica, 2015, 35(12): 1533-1541.]
[28]	叶英聪, 孙凯, 匡丽花, 等. 基于空间决策的城镇空间与农业生产空间协调布局优化. 农业工程学报, 2017, 33(16): 256-266.
	叶英聪, 孙凯, 匡丽花, 等. 基于空间决策的城镇空间与农业生产空间协调布局优化. 农业工程学报, 2017, 33(16): 256-266.
	[YE Y C, SUN K, KUANG L H, et al.Spatial layout optimization of urban space and agricultural space based on spatial decision-making. Transaction of the CSAE, 2017, 33(16): 256-266.]
	[YE Y C, SUN K, KUANG L H, et al.Spatial layout optimization of urban space and agricultural space based on spatial decision-making. Transaction of the CSAE, 2017, 33(16): 256-266.]
[29]	杨建宇, 杜贞容, 杜振博, 等. 基于耕地质量评价和局部空间自相关的高标准农田划定. 农业机械学报, 2017, 48(6): 109-115.
	杨建宇, 杜贞容, 杜振博, 等. 基于耕地质量评价和局部空间自相关的高标准农田划定. 农业机械学报, 2017, 48(6): 109-115.
	[YANG J Y, DU Z R, DU Z B, et al.Well-facilitied capital farmland assignment based on land quality evaluation and LISA. Transactions of the CSAM, 2017, 48(6): 109-115.]
	[YANG J Y, DU Z R, DU Z B, et al.Well-facilitied capital farmland assignment based on land quality evaluation and LISA. Transactions of the CSAM, 2017, 48(6): 109-115.]
[30]	熊昌盛, 谭荣, 岳文泽. 基于局部空间自相关的高标准基本农田建设分区. 农业工程学报, 2015, 31(22): 276-284.
	熊昌盛, 谭荣, 岳文泽. 基于局部空间自相关的高标准基本农田建设分区. 农业工程学报, 2015, 31(22): 276-284.
	[XIONG C S, TAN R, YUE W Z.Zoning of high standard farmland construction based on local indicators of spatial association. Transaction of the CSAE, 2015, 31(22): 276-284.]
	[XIONG C S, TAN R, YUE W Z.Zoning of high standard farmland construction based on local indicators of spatial association. Transaction of the CSAE, 2015, 31(22): 276-284.]
[31]	孔祥斌, 靳京, 刘怡, 等. 基于农用地利用等别的基本农田保护区划定. 农业工程学报, 2008, 24(10): 46-51, 2.
	孔祥斌, 靳京, 刘怡, 等. 基于农用地利用等别的基本农田保护区划定. 农业工程学报, 2008, 24(10): 46-51, 2.
	[KONG X B, JIN J, LIU Y, et al.Planning method of the prime farmland protection zone based on farmland utilization grade. Transaction of the CSAE, 2008, 24(10): 46-51, 2.]
	[KONG X B, JIN J, LIU Y, et al.Planning method of the prime farmland protection zone based on farmland utilization grade. Transaction of the CSAE, 2008, 24(10): 46-51, 2.]

准则层	指标层	指标分级情况					权重
准则层	指标层	Ⅰ	Ⅱ	Ⅲ	Ⅳ	Ⅴ	权重
土壤理化性质	有机质质量分数/%	[4, +∞)	[3, 4)	[2, 3)	[1, 2)	（-∞, 1)	0.0754
	耕层厚度/cm	[32, 40]	[24, 32)	[16, 24)	[8, 16)	[0, 8)	0.0642
	土壤pH	[6.0, 7.9）	[5.5, 6.0), [7.9, 8.5)	[5.0, 5.5),[8.5, 9.0)	[4.5, 5.0)	（-∞, 4.5), [9.0, +∞)	0.0812
	土壤质地	重壤土	中壤土	轻壤土	沙壤土		0.0541
	剖面构型	1级	2级	3级	4级	5级	0.0691
	障碍层深度/cm	[70, 90]	[50, 70）	[30, 50）	[10, 30）	（-∞, 10)	0.0632
耕作利用条件	排水条件	完善	基本完善	一般		不具备	0.0532
	灌溉条件	完善	基本完善	一般		不具备	0.0985
	地形坡度/°	[0, 2)	[2, 6)	[6, 15)	[15, 25)	[25, 45)	0.0661
	耕地连片度	[965.6, +∞)	[581.9, 965.6)	[319.4, 581.9)	[138.4, 319.4)	[0, 138.4)	0.0645
	土壤侵蚀程度	1级	2级	3级	4级	5级	0.0552
	耕地利用方式	水田	水浇地	旱地			0.0598
	田块规整度	（-∞, 1.02]	（1.02,1.06)	[1.06, 1.1)	[1.10, 1.50)	[1.50, +∞)	0.0442
耕地区位条件	耕作距离/km	[0, 0.4)	[0.4, 1.0)	[1.0, 1.8)	[1.8, 2.8)	[2.8, +∞)	0.0412
	耕作便捷度/km	[0, 0.1)	[0.1, 0.3)	[0.3, 0.5)	[0.5, 0.7)	[0.7, +∞)	0.0336
	交通通达度/km	[0, 0.1)	[0.1, 0.3)	[0.3, 0.6)	[0.6, 1.0)	[1.0, +∞)	0.0442
	中心城镇影响度/km	[0, 0.1)	[0.1, 0.3)	[0.3, 0.5)	[0.5, 0.7)	[0.7, +∞)	0.0323

准则层	指标层	指标分级情况					权重
准则层	指标层	Ⅰ	Ⅱ	Ⅲ	Ⅳ	Ⅴ	权重
土壤理化性质	有机质质量分数/%	[4, +∞)	[3, 4)	[2, 3)	[1, 2)	（-∞, 1)	0.0754
	耕层厚度/cm	[32, 40]	[24, 32)	[16, 24)	[8, 16)	[0, 8)	0.0642
	土壤pH	[6.0, 7.9）	[5.5, 6.0), [7.9, 8.5)	[5.0, 5.5),[8.5, 9.0)	[4.5, 5.0)	（-∞, 4.5), [9.0, +∞)	0.0812
	土壤质地	重壤土	中壤土	轻壤土	沙壤土		0.0541
	剖面构型	1级	2级	3级	4级	5级	0.0691
	障碍层深度/cm	[70, 90]	[50, 70）	[30, 50）	[10, 30）	（-∞, 10)	0.0632
耕作利用条件	排水条件	完善	基本完善	一般		不具备	0.0532
	灌溉条件	完善	基本完善	一般		不具备	0.0985
	地形坡度/°	[0, 2)	[2, 6)	[6, 15)	[15, 25)	[25, 45)	0.0661
	耕地连片度	[965.6, +∞)	[581.9, 965.6)	[319.4, 581.9)	[138.4, 319.4)	[0, 138.4)	0.0645
	土壤侵蚀程度	1级	2级	3级	4级	5级	0.0552
	耕地利用方式	水田	水浇地	旱地			0.0598
	田块规整度	（-∞, 1.02]	（1.02,1.06)	[1.06, 1.1)	[1.10, 1.50)	[1.50, +∞)	0.0442
耕地区位条件	耕作距离/km	[0, 0.4)	[0.4, 1.0)	[1.0, 1.8)	[1.8, 2.8)	[2.8, +∞)	0.0412
	耕作便捷度/km	[0, 0.1)	[0.1, 0.3)	[0.3, 0.5)	[0.5, 0.7)	[0.7, +∞)	0.0336
	交通通达度/km	[0, 0.1)	[0.1, 0.3)	[0.3, 0.6)	[0.6, 1.0)	[1.0, +∞)	0.0442
	中心城镇影响度/km	[0, 0.1)	[0.1, 0.3)	[0.3, 0.5)	[0.5, 0.7)	[0.7, +∞)	0.0323

级别	高—高型		高—低型		低—高型		低—低型		无显著型		合计
级别	面积/km²	比例/%	面积/km²	比例/%	面积/km²	比例/%	面积/km²	比例/%	面积/km²	比例/%	合计
Ⅰ级	62.84	8.93	12.69	1.80	0	0	0	0	80.24	11.40	155.77
Ⅱ级	64.34	9.14	124.27	17.66	0	0	0.02	0	192.03	27.29	380.66
Ⅲ级	7.67	1.09	23.13	3.29	7.53	1.07	45.50	6.47	64.30	9.14	148.13
Ⅳ级	0	0	0	0	0.22	0.03	14.63	2.08	4.19	0.60	19.04
合计	134.86	19.17	160.08	22.75	7.75	1.10	60.15	8.55	340.76	48.43	703.59

级别	高—高型		高—低型		低—高型		低—低型		无显著型		合计
级别	面积/km²	比例/%	面积/km²	比例/%	面积/km²	比例/%	面积/km²	比例/%	面积/km²	比例/%	合计
Ⅰ级	62.84	8.93	12.69	1.80	0	0	0	0	80.24	11.40	155.77
Ⅱ级	64.34	9.14	124.27	17.66	0	0	0.02	0	192.03	27.29	380.66
Ⅲ级	7.67	1.09	23.13	3.29	7.53	1.07	45.50	6.47	64.30	9.14	148.13
Ⅳ级	0	0	0	0	0.22	0.03	14.63	2.08	4.19	0.60	19.04
合计	134.86	19.17	160.08	22.75	7.75	1.10	60.15	8.55	340.76	48.43	703.59

类别	传统划分方式				新划分方式
类别	面积/km²	比例/%	综合质量得分均值	图斑数/个	面积/km²	比例/%	综合质量得分均值	图斑数/个
高—高聚集	100.31	16.90	67.87	1306	125.46	21.14	67.45	1578
高—低聚集	137.13	23.11	66.56	706	144.61	24.37	66.64	334

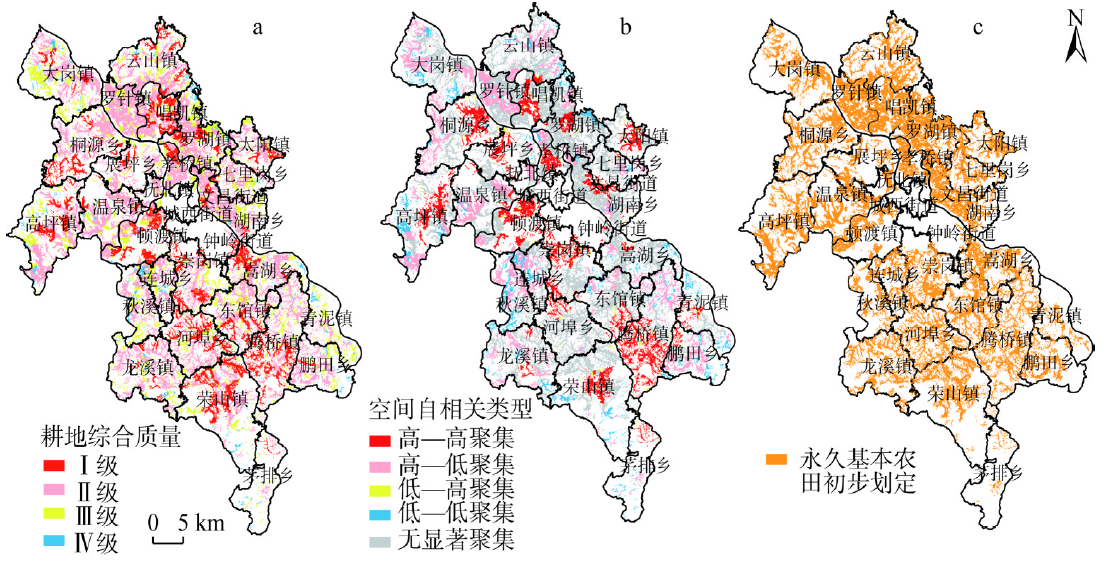

低—高聚集	5.28	0.89	62.36	296	0.20	0.03	62.74	8
低—低聚集	48.71	8.21	60.23	1450	6.28	1.06	59.72	29
无显著聚集	302.03	50.89	64.63	3536	316.92	53.40	65.21	2471
合计	593.46	100.00	64.42	7294	593.46	100.00	66.07	4420
